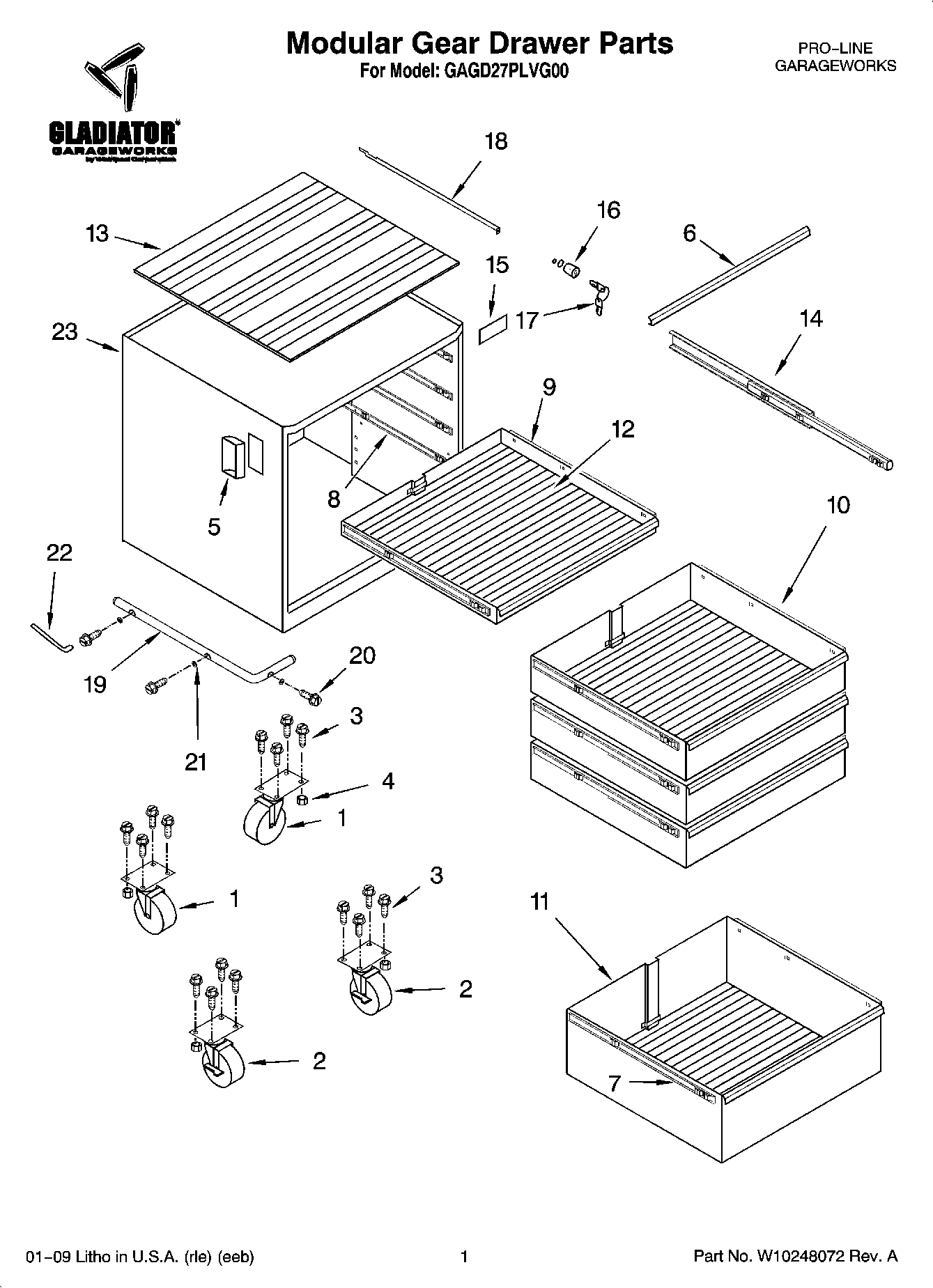

GAGD27PLVG00 01 – Modular Gear Drawer Parts

GAGD27PLVG00 01 – Modular Gear Drawer Parts

Written by

in

GAGD27PLVG00 01 – Modular Gear Drawer Parts

Products

PositionProduct
Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
Optional Parts Not Included
Miscellaneous
1WP8204601 Whirlpool Caster Assembly
28211250 Whirlpool Caster Assembly
3WP8204609 Whirlpool Bolt
4WP8204610 Whirlpool Nut
5W10914558 Whirlpool Door Handle
6Trim, Drawer
7Guide, Drawer
8Slide, Cabinet
9Drawer, 2“ w/Trim & Guide
10Drawer, 4“ w/Trim & Guide
12WP8204604 Whirlpool Liner Assembly
138204605 Whirlpool Mat
14Slide, Ball Bearing 21“
15Nameplate, Gladiator
16LOCK
17W11383363 Whirlpool Keys
188211226 Whirlpool Key Bar
19Bumper
20Screw
21WP8211254 Whirlpool Washer
22Key-Hex
23Cabinet Assy (Includes Items 5 & 15)
