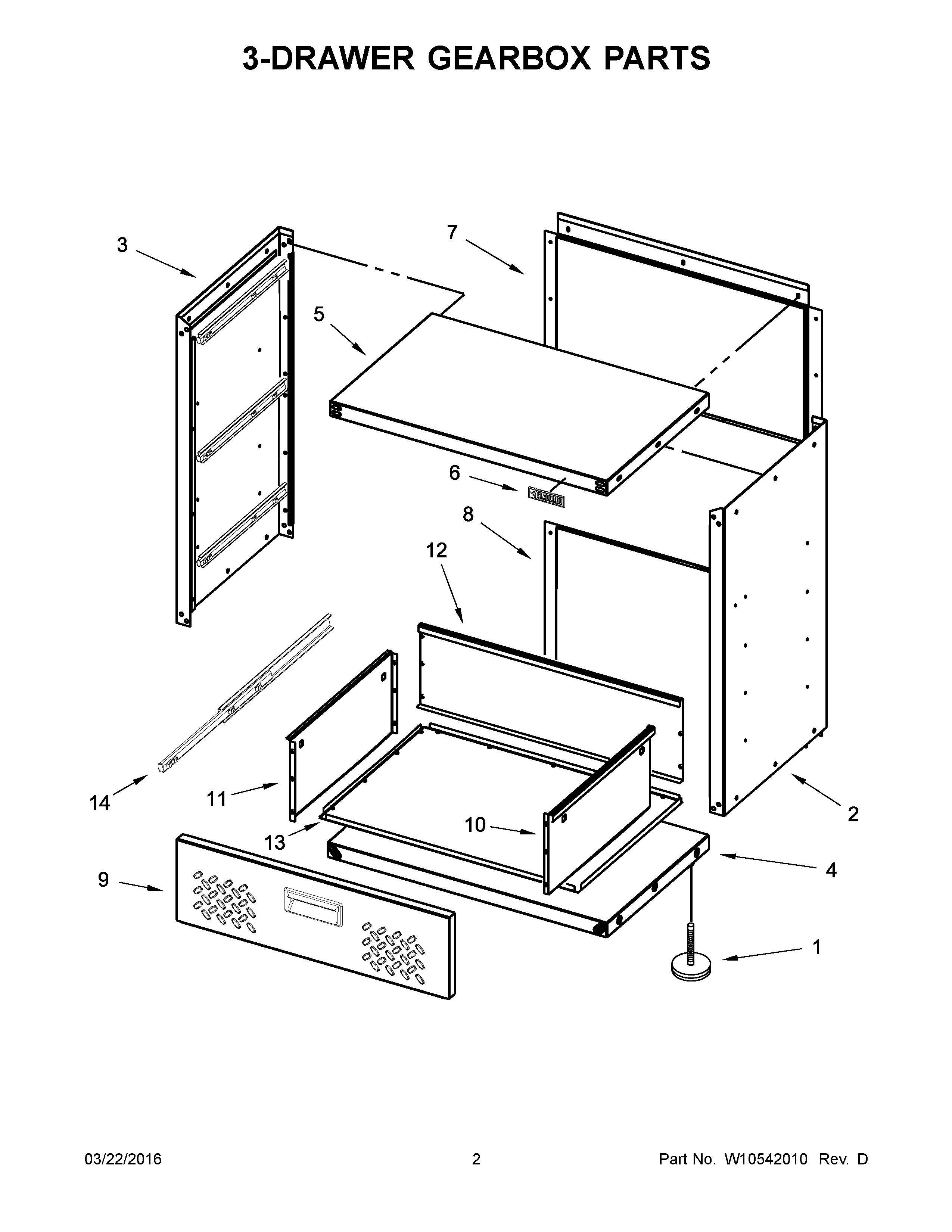

GAGD283DYG00 02 – 3-DRAWER GEARBOX PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIINSTALLATION HARDWARE COMPLETE
1LEG, LEVELER
2PANEL, SIDE (RIGHT)
3W10535090 Whirlpool Panel Assembly
4W10541565 Whirlpool Panel
5W10520288 Whirlpool Panel Assembly
6NAMEPLATE, GLADIATOR
7W10541602 Whirlpool Panel
8PANEL, BACK (LOWER)
9W10541617 Whirlpool Panel Assembly
10W10541613 Whirlpool Panel
11W10541610 Whirlpool Panel Assembly
12PANEL, DRAWER (BACK)
13PANEL, DRAWER (BOTTOM)
14WPW10183341 Whirlpool Drawer Slide
