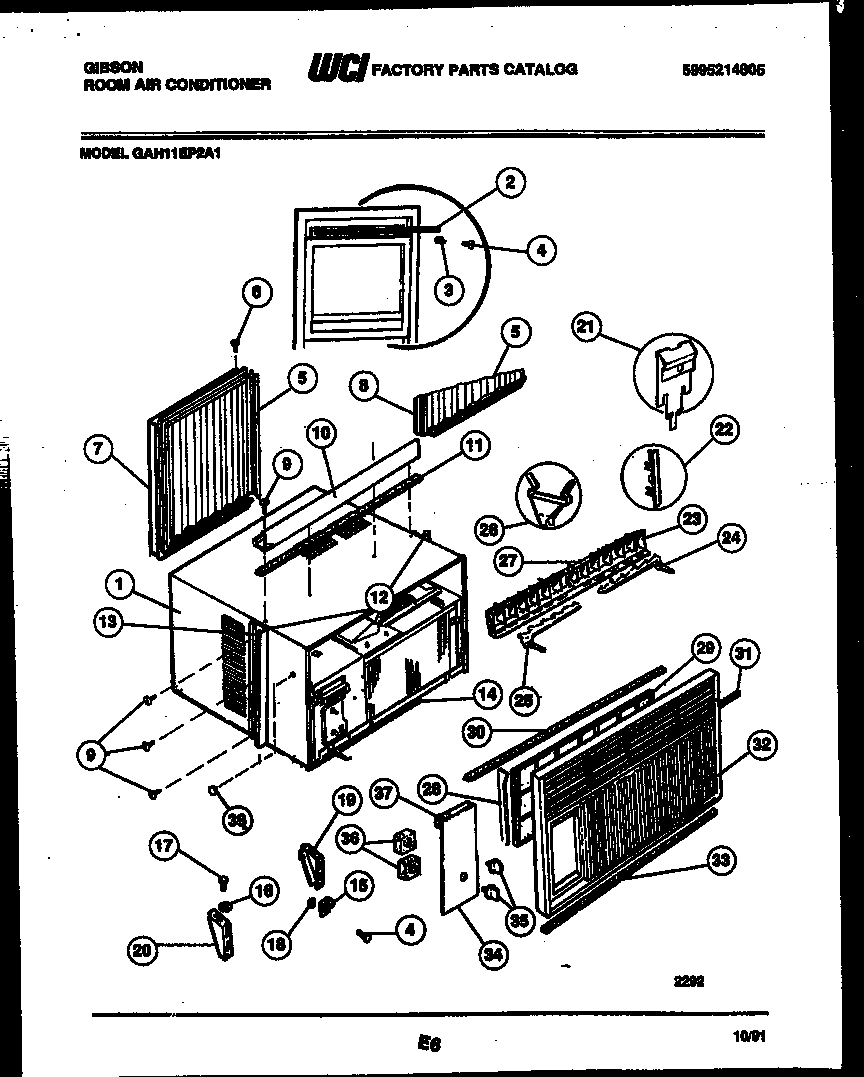

GAH11EP2A1 02 – CABINET PARTS

Products

Position	Product
1B	NAMEPLATE REAR GRILLE (NON-ILLUSTRATED)
1A	WCI 5303210207
1	WRAPPER
2	5304407729 Frigidaire Air Conditioner Seal
3	BRACKET
4	SCREW-WOOD
5	ACCORDIAN (2)
6	WCI 3002801
7	WCI 3202495
8	WCI 3202497
9	134178901 Frigidaire Screw
10	SUPPORT-TOP
11	WCI 5303207200
12	RETAINER, ACCORDION
13	SEAL-RETAINER (NON-ILLUSTRATED)
14	SEAL
15	BRACKET – SUPPORT
16	316205500 Frigidaire Oven Nut
17	SCREW – SILL SUPT
18	NUT – BRACKET
19	WCI 3016224
20	WCI 3016225
21	CLIP – SPRING (NON-ILLUSTRATED)
22	RETAINER-LOUVER HORIZONTAL
23	VERT. LOUVER & LINK ASSY.
24	LINK VERTICAL LOUVER LH
25	LINK – VERT LOUVER RH
26	WCI 5303001844
27	LOUVER-HORIZ
28	RAIL-FILTER (NON-ILLUSTRATED)
28A	RAIL-FILTER (NON-ILLUSTRATED)
29	WCI 3018657
30	SEAL TOP FRAME
31	WCI 3018413
32	WCI 5303278922
33	WCI 5303278925
34	PLATE-DIAL
35	WCI 5303017300
36	WCI 5303001775
37	WCI 5303001984
38	WCI 3017304
