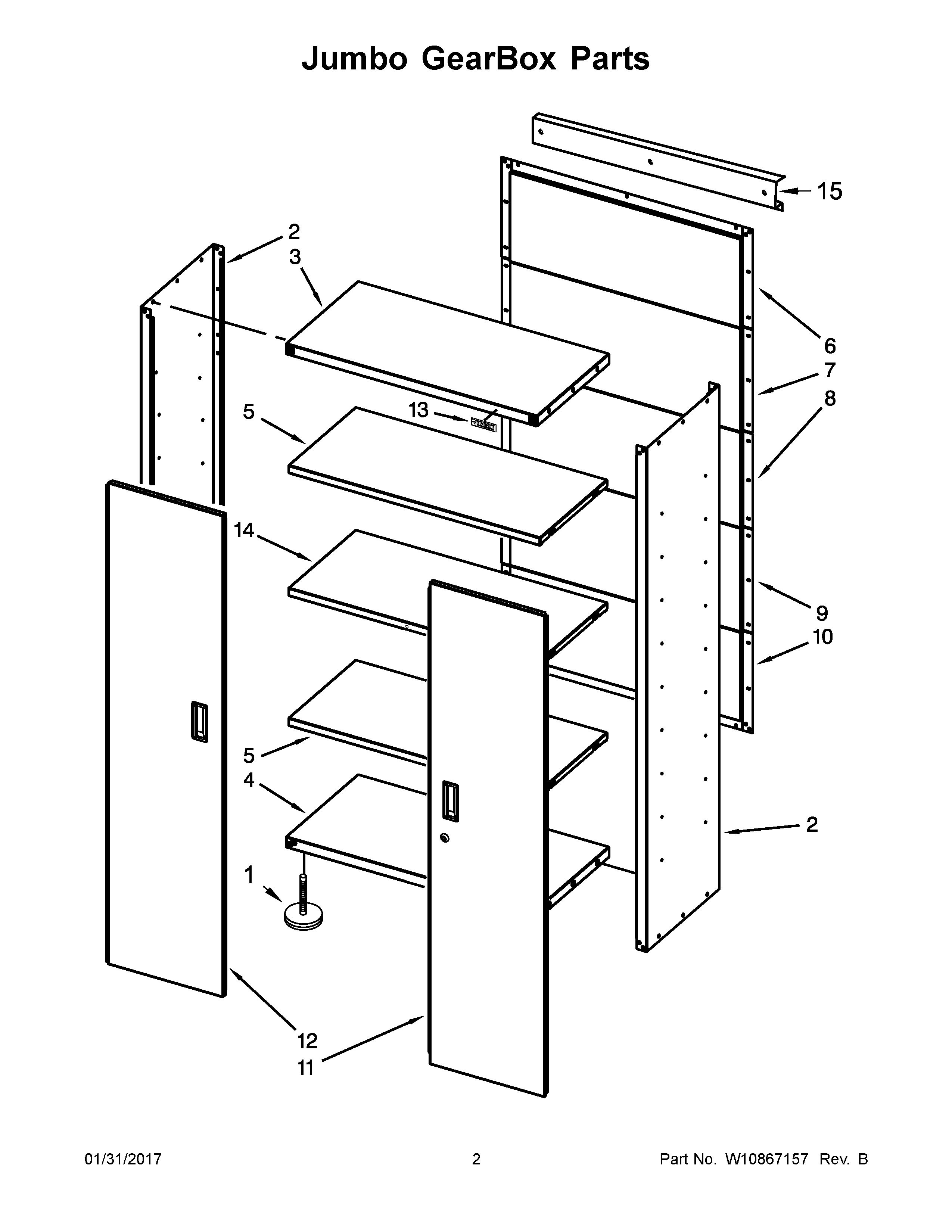

GAJG36FDYG03 02 – JUMBO GEARBOX PARTS

Products

PositionProduct
NIW10543377 Whirlpool Misc Parts
NICABINET (NOT A SERVICEABLE PART)
NIHARDWARE BAG (CONTAINS 13 HEX NUTS)
1WPW10471120 Whirlpool Leg Lever
2WPW10471124 Whirlpool Panel
3W10471122 Whirlpool Panel
4W10471123 Whirlpool Panel
5W11209437 Whirlpool Shelf
6W10471105 Whirlpool Panel
7PANEL, BACK BBB
8PANEL, BACK CCC
9W10471108 Whirlpool Panel
10W10471109 Whirlpool Panel
11WPW10280137 Whirlpool Door
12WPW10471103 Whirlpool Door
13NAMEPLATE, GLADIATOR
14W10760353 Whirlpool Shelf
15W10471127 Whirlpool Bracket Assembly
