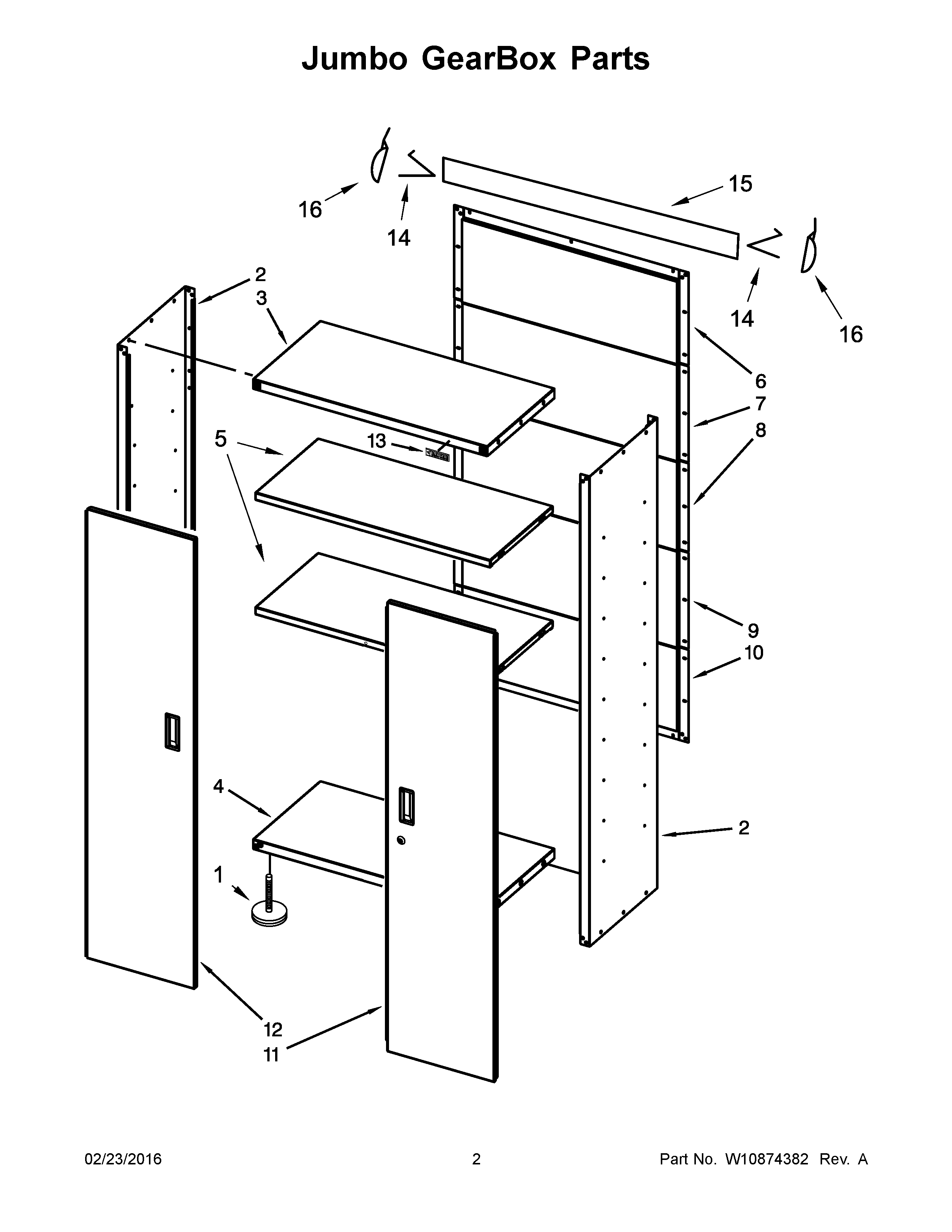

GAJG36GRESG00 02 – JUMBO GEARBOX PARTS

Products

PositionProduct
NIW10741538 Whirlpool Miscellaneous Parts
NICABINET (NOT A SERVICEABLE PART)
1WPW10471120 Whirlpool Leg Lever
2WPW10471124 Whirlpool Panel
3W10471122 Whirlpool Panel
4W10471123 Whirlpool Panel
5W10741535 Whirlpool Shelf Assembly
6W10471105 Whirlpool Panel
7PANEL, BACK BBB
8PANEL, BACK CCC
9W10471108 Whirlpool Panel
10W10471109 Whirlpool Panel
11DOOR ASSEMBLY WITHOUT LOCK
12DOOR ASSEMBLY WITHOUT LOCK
13NAMEPLATE, GLADIATOR
14CLIP, GEAR ROD
15BAR, GEAR ROD
16BRACKET, GEAR ROD
