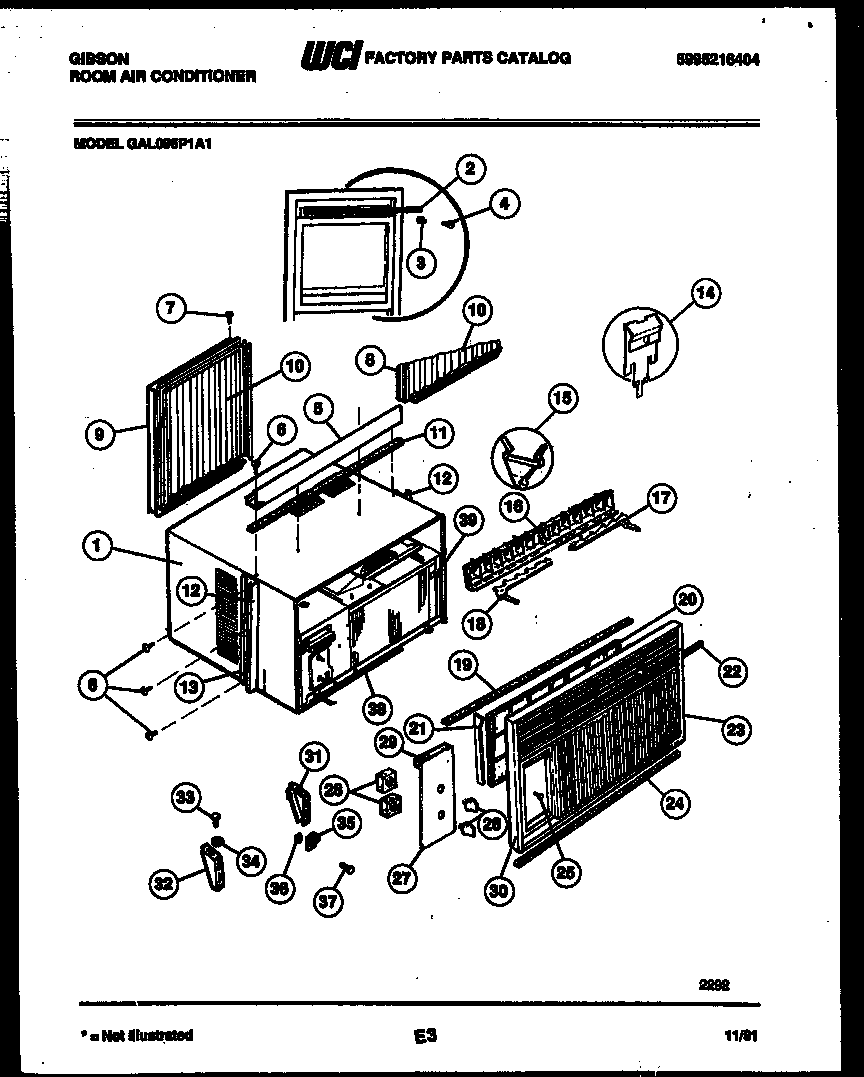

GAL095P1A1 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303207184
1B	NAMEPLATE REAR GRILLE (NON-ILLUSTRATED)
1A	GRILL
2	5304407729 Frigidaire Air Conditioner Seal
4	SCREW-WOOD
5	SUPPORT-TOP
6	134178901 Frigidaire Screw
7	WCI 3002801
8	WCI 3203060
9	WCI 3002964
10	WCI 5303211382
11	WCI 5303207200
12	RETAINER, ACCORDION
13	SEAL-RETAINER (NON-ILLUSTRATED)
14	CLIP – SPRING (NON-ILLUSTRATED)
15	WCI 5303001844
17	LINK – VERT LOUVER RH
18	LINK VERTICAL LOUVER LH
19	SEAL TOP FRAME
20	WCI 3018657
21A	RAIL-FILTER (NON-ILLUSTRATED)
21	RAIL-FILTER (NON-ILLUSTRATED)
22	WCI 3018413
23	VERT. LOUVER & LINK ASSY.
23A	WCI 5303283700
24	WCI 5303278925
25	WCI 3017304
26	WCI 5303017300
27	WCI 5303271798
28	WCI 5303001775
29	WCI 5303001984
30	WCI 5303207203
31	WCI 3016224
32	WCI 3016225
33	SCREW – SUPPORT, 4
34	316205500 Frigidaire Oven Nut
35	BRACKET
36	NUT – BRACKET
37	SCREW – SILL SUPT
38	SEAL
39	BRACE – FRONT (NON-ILLUSTRATED)
