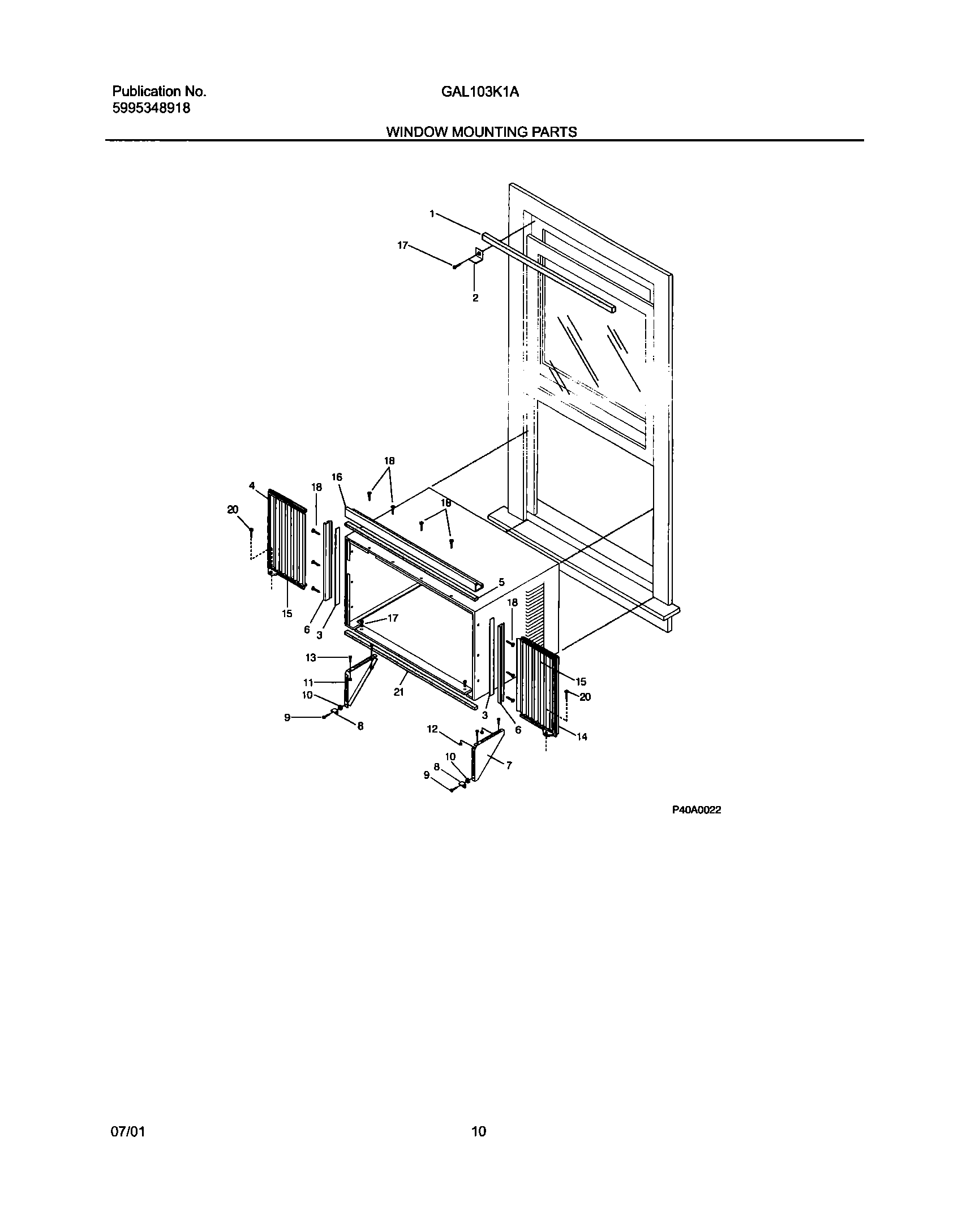

GAL103K1A1 11 – WINDOW MOUNTING

Products

Position	Product
NI	Kit-window mtg
NI	Kit-mounting support
1	5304407729 Frigidaire Air Conditioner Seal
2	BRACKET
3	SEAL-RETAINER (NON-ILLUSTRATED)
4	WCI 5304415073
5	WCI 5303207200
6	WCI 5304414107
7	BRACKET-SUPPT-RH (NCS1403)
8	BRACKET – SUPPORT
9	SCREW – SILL SUPT
10	NUT – BRACKET
11	BRACKET-SUPPT-LH (NCS1403)
12	316205500 Frigidaire Oven Nut
13	SCREW – SUPPORT, 4
14	WCI 5304415074
15	WCI 5304415072
16	WCI 5304414102
17	SCREW-WOOD
21	SEAL
24	WCI 3002801
