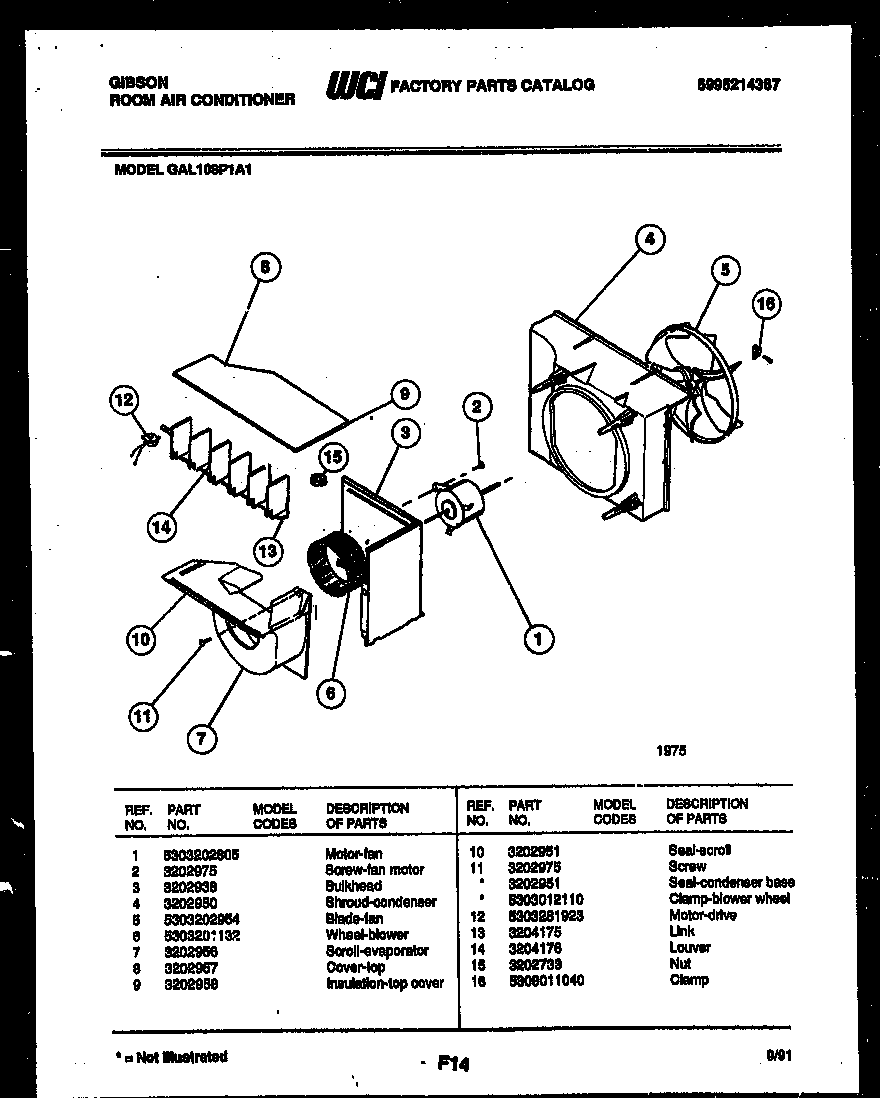

GAL108P1A1 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	WCI 5303202805
3	BULKHEAD-AIR SYSTEM
4	WCI 3202950
5	BLADE-FAN
6	WCI 5303201132
7	WCI 3202956
8	WCI 3202957
9	PAD – COVER
11	131202300 Frigidaire Screw
11A	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
11B	WCI 5303012110
12	WCI 5303281923
13	WCI 3204175
14	LOUVER – VERTICAL
15	NUT-PUSH
16	CLAMP – FAN BLADE
