GAL108T1A1 02 – CABINET PARTS

GAL108T1A1 02 – CABINET PARTS

Written by

in

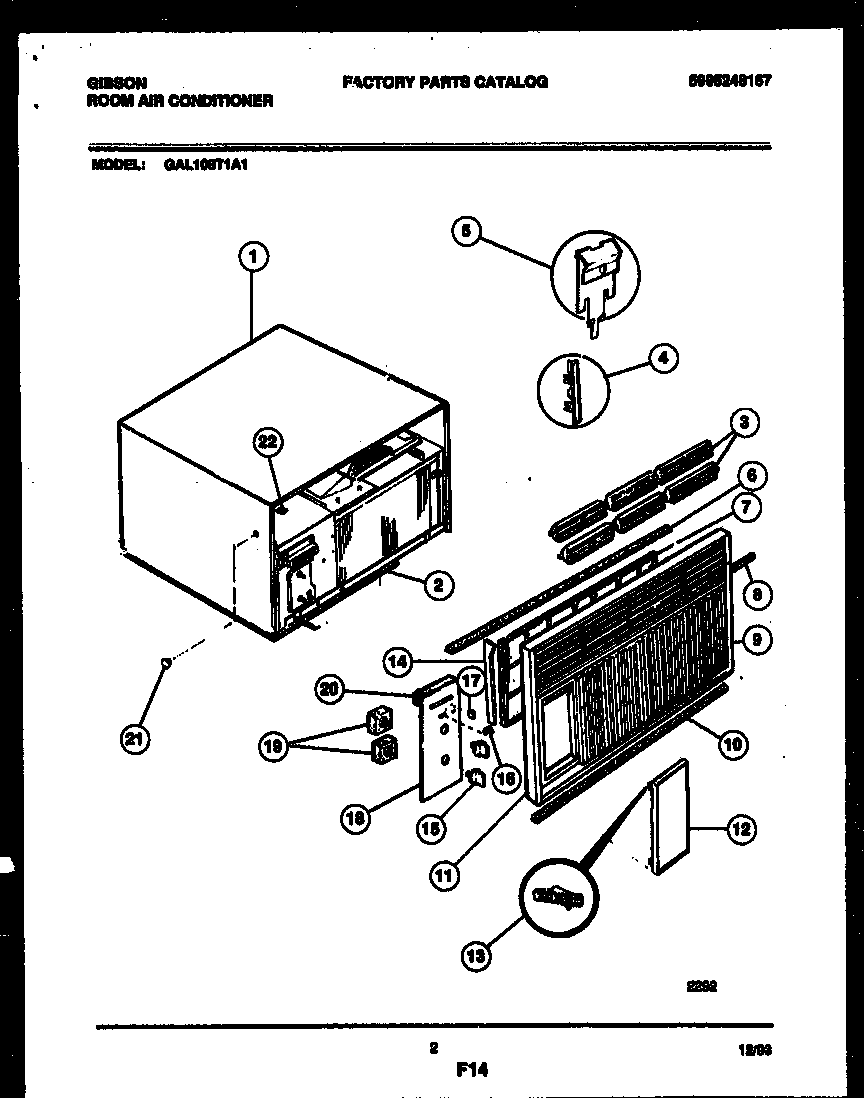

GAL108T1A1 02 – CABINET PARTS

Products

PositionProduct
1WCI 5303301242
1BWCI 5303302608
1AWCI 5303301025
2SEAL
3LOUVER-HORIZ
4RETAINER-LOUVER HORIZONTAL
5CLIP – SPRING (NON-ILLUSTRATED)
6SEAL TOP FRAME
7WCI 3018657
8WCI 3018550
9WCI 530327248
10WCI 5303278925
11WCI 5303207203
12DOOR-FRONT
13HINGE – DOOR
14RAIL-FILTER (NON-ILLUSTRATED)
14ARAIL-FILTER (NON-ILLUSTRATED)
15WCI 5303017300
16KNOB – SLIDE, SWITCH
17WCI 5303017340
18WCI 5303282696
19WCI 5303001775
20WCI 5303001984
21SCREW
22NUT – FRONT LOCK
