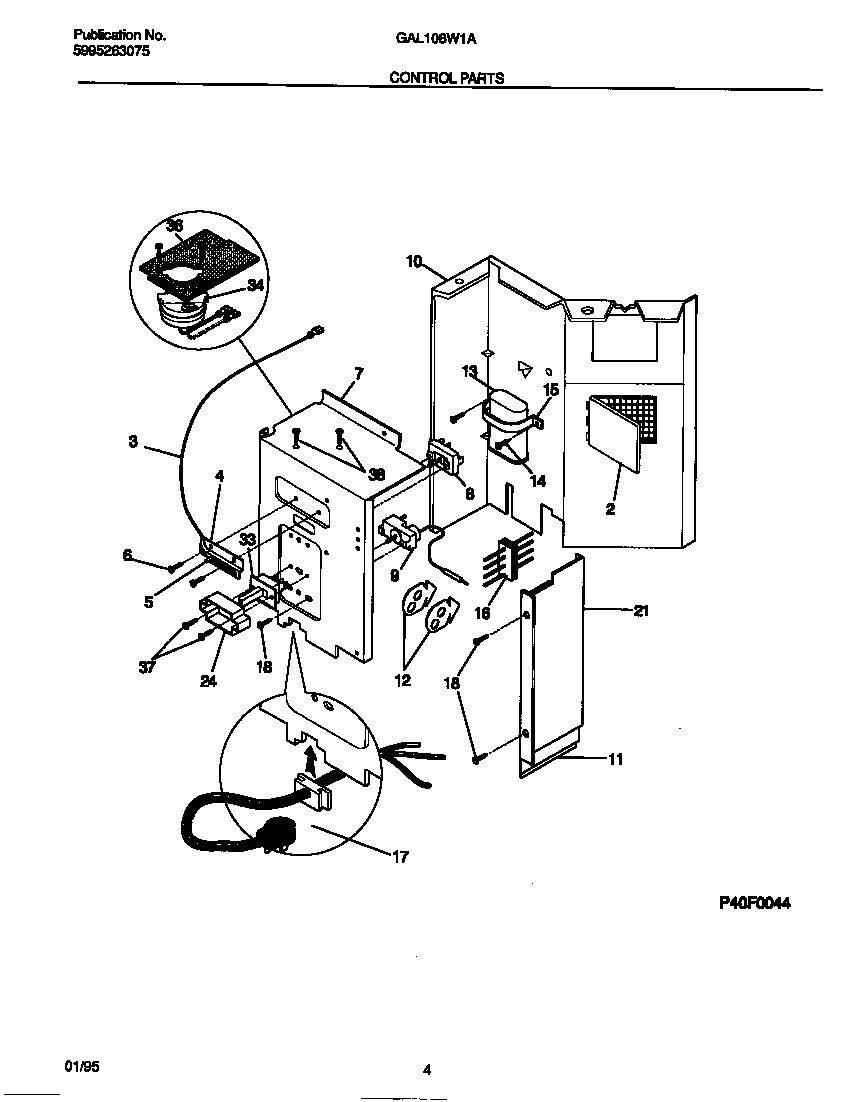

GAL108W1A2 03 – CONTROL PARTS

Products

Position	Product
2	DOOR-VENT
3	WCI 5303015298
4	RETAINER
5	ACTUATOR-ARM
6	134178901 Frigidaire Screw
7	WCI 5303296861
8	SWITCH
9	WCI 5303301708
10	WCI 5303210984
11	WCI 5303306020
12	CLIP-FILTER & SENSING BULB
13	WCI 5303305902
15	STRAP – CAPACITOR
16	WCI 309602905
17	CORD-ELECTRIC POWER
18	SCREW
20	SLEEVE-CAP TUBE (NON-ILLUSTRATED)
21	WCI 5303306004
24	SPACER-SLIDE SWITCH (NON-ILLUSTRATED)
26	TUBE CONTROL BULB
33	SWITCH – SLIDE
34	WCI 5303281923
36	INSULATION-CONTROL PANEL TOP
37	SCREW-SWITCH, SHUT OFF
38	WCI 5303015294
