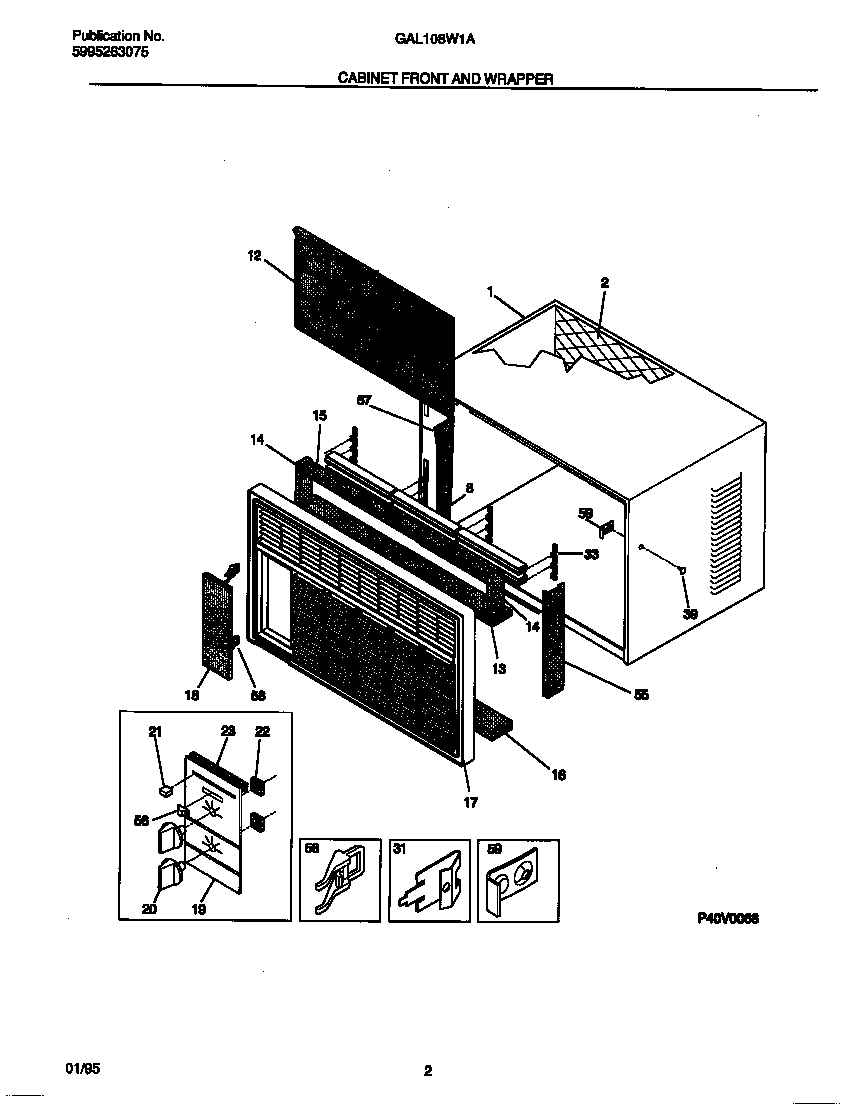

GAL108W1A3 02 – CABINET PARTS

Products

PositionProduct
1WCI 5303301242
2GRILLE, REAR
8LOUVER-HORIZ
12WCI 3018657
13WCI 3018550
14WCI 5303207203
15SEAL TOP FRAME
16WCI 5303278925
17BWCI 5303272482
17AWCI 5303272481
18DOOR-FRONT
19WCI 5303282696
20WCI 5303017300
21WCI 5303017340
22WCI 5303001775
23WCI 5303001984
31WCI 5303295272
33RETAINER-LOUVER HORIZONTAL
39SCREW
55RAIL-FILTER (NON-ILLUSTRATED)
56KNOB – SLIDE, SWITCH
57RAIL-FILTER (NON-ILLUSTRATED)
58HINGE – DOOR
59NUT – FRONT LOCK
