GAL128P1A1 02 – CABINET PARTS

GAL128P1A1 02 – CABINET PARTS

Written by

in

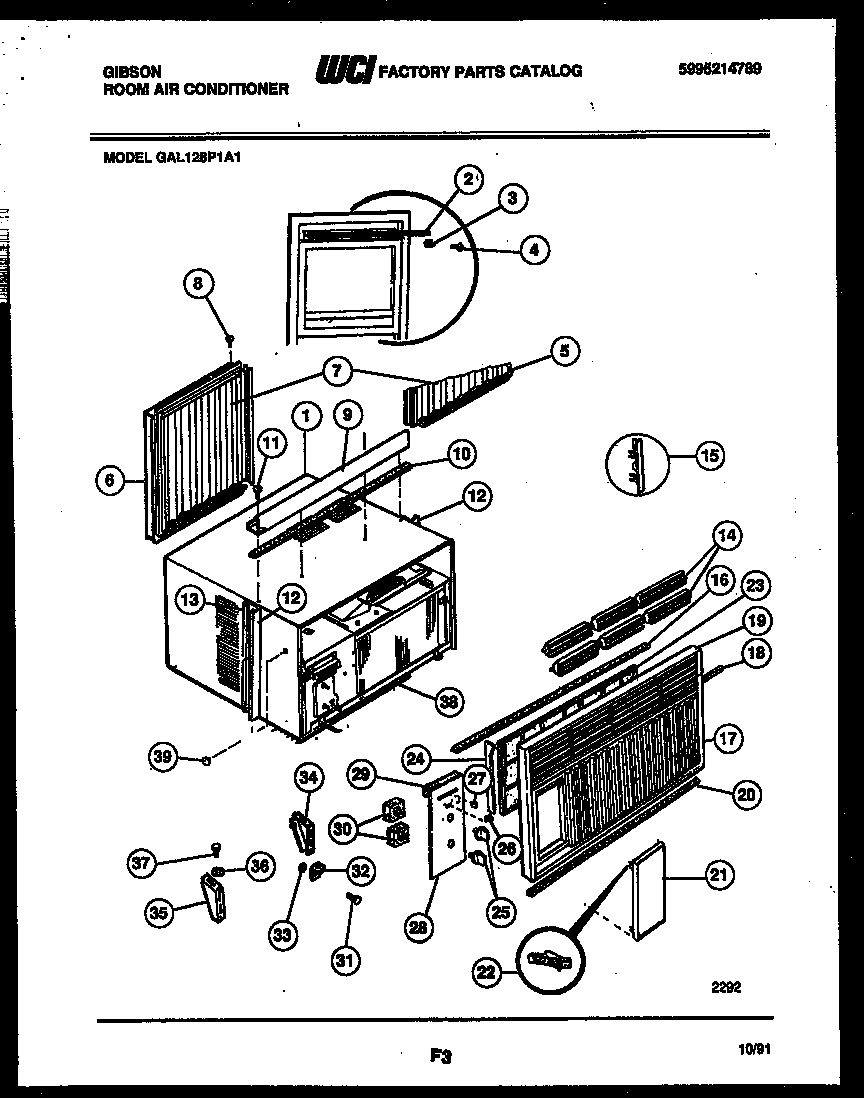

GAL128P1A1 02 – CABINET PARTS

Products

PositionProduct
1AWCI 5303210207
1WCI 5303271901
1BNAMEPLATE REAR GRILLE (NON-ILLUSTRATED)
25304407729 Frigidaire Air Conditioner Seal
3BRACKET
5WCI 3203060
6WCI 3202964
7WCI 5303211382
8WCI 3002801
9SUPPORT-TOP
10WCI 5303207200
11134178901 Frigidaire Screw
12RETAINER, ACCORDION
13SEAL-RETAINER (NON-ILLUSTRATED)
14LOUVER-HORIZ
15RETAINER-LOUVER HORIZONTAL
16SEAL TOP FRAME
17WCI 5303207203
18WCI 3018550
19WCI 5303272481
20WCI 5303278925
21DOOR-FRONT
22HINGE – DOOR
23WCI 3018657
24ARAIL-FILTER (NON-ILLUSTRATED)
24RAIL-FILTER (NON-ILLUSTRATED)
25WCI 5303017300
26KNOB – SLIDE, SWITCH
27WCI 5303017340
28WCI 5303282696
29WCI 5303001984
30WCI 5303001775
31SCREW – SILL SUPT
32BRACKET – SUPPORT
33NUT – BRACKET
34WCI 3016224
35WCI 3016225
36316205500 Frigidaire Oven Nut
37WCI 3002735
38SEAL
39WCI 3017304
