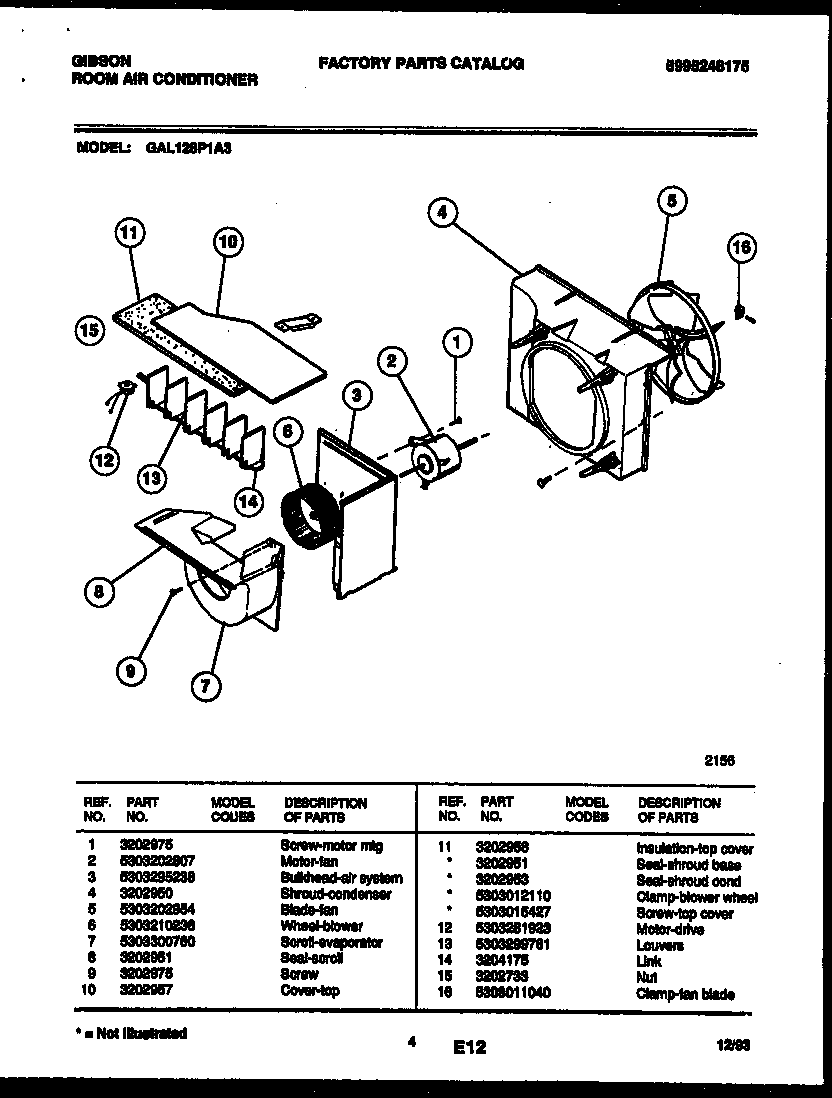

GAL128P1A3 03 – AIR HANDLING PARTS

Products

Position	Product
2	WCI 5303202807
3	BULK HEAD-AAIR SYSTEM
4	WCI 3202950
5	BLADE-FAN
6	WCI 5303210236
7	SCROLL-EVAPORATOR
9	131202300 Frigidaire Screw
10	WCI 3202957
11	PAD – COVER
11D	134178901 Frigidaire Screw
11B	SEAL-SHROUD COND
11A	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
11C	WCI 5303012110
12	WCI 5303281923
13	LOUVERS W/LINK
14	WCI 3204175
15	NUT-PUSH
16	CLAMP – FAN BLADE
