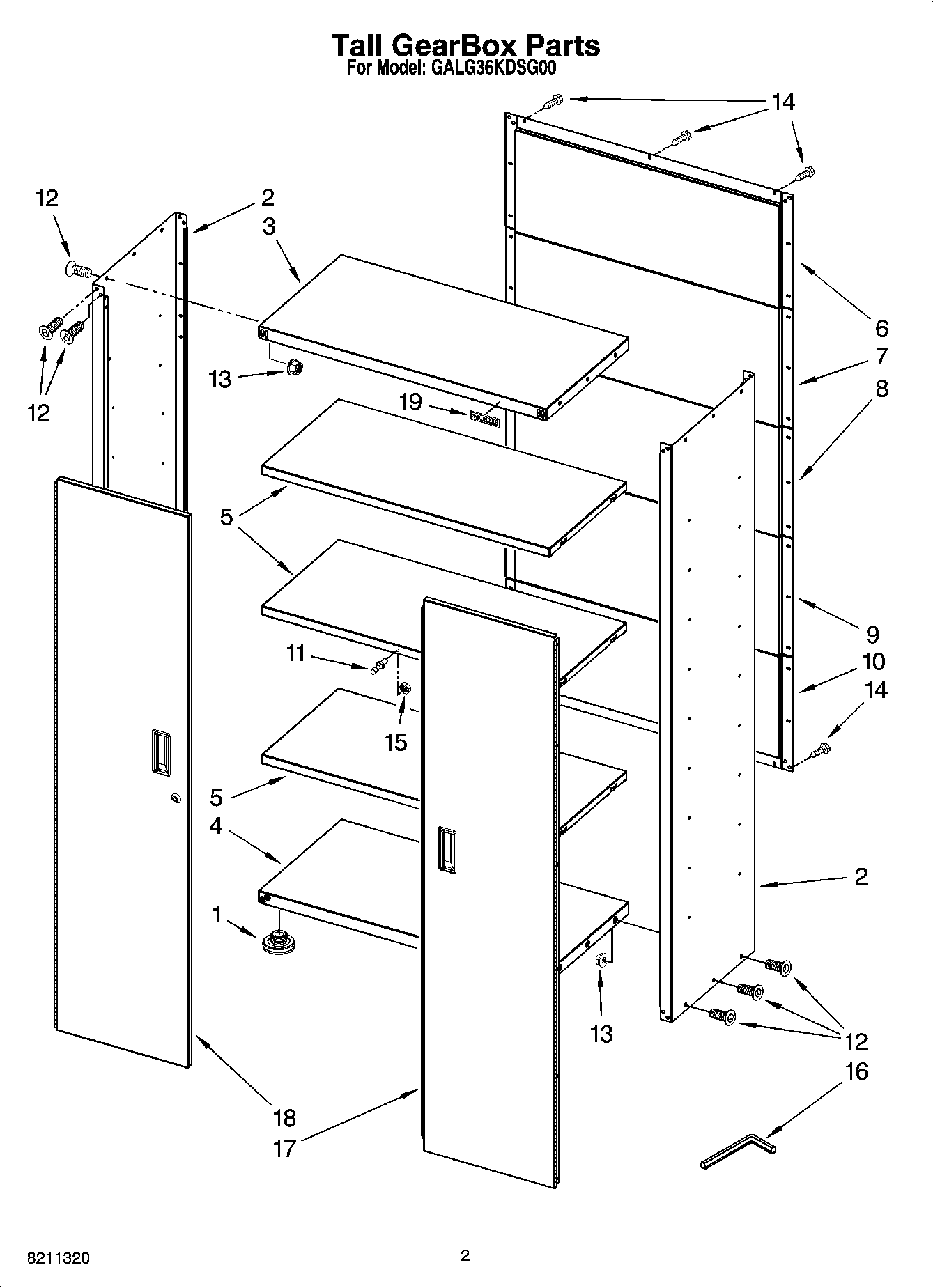

GALG36KDSG00 01 – Tall GearBox Parts

Products

PositionProduct
1Leg, Levler
2Panel, Side
3Panel, Top
4Panel, Bottom
5Shelf
6Panel, Back AAA
7Panel, Back BBB
8Panel, Back CCC
9Panel, Back DDD
10Panel, Back EEE
11W11369680 Whirlpool Catch Stud
12W10859799 Whirlpool Bolt
13WP8211291 Whirlpool Nut
14WP8211294 Whirlpool Screw
15Nut, Keps
16Wrench, Allen
17Door & Handle Assembly (Right) (Includes Item 5)
18Door & Handle Assembly (Left) (Includes Item 5)
19NAMEPLATE, GLADIATOR
