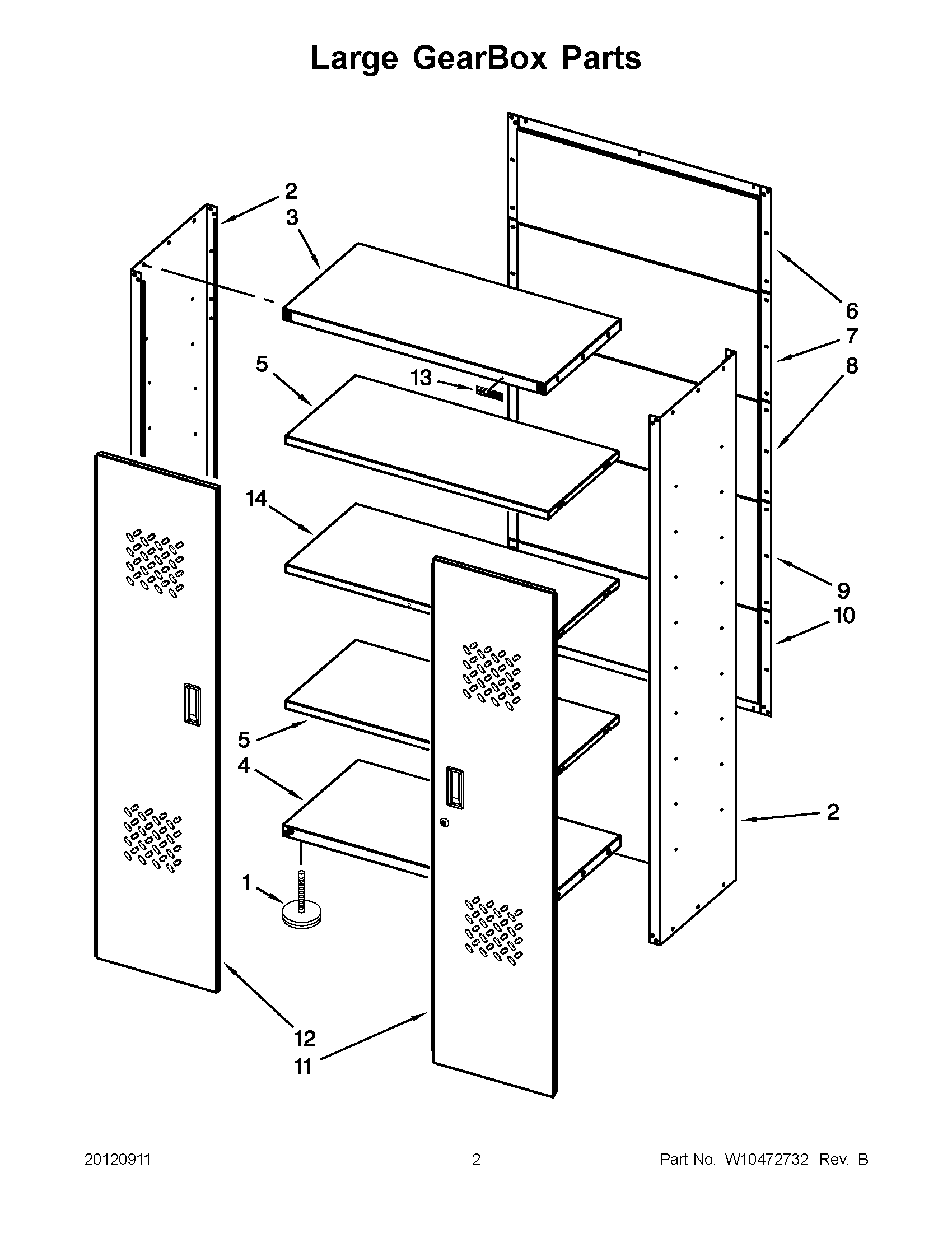

GALG36KDYG00 01 – LARGE GEARBOX PARTS

Products

Position	Product
NI	W10471110 Whirlpool Miscellaneous Parts
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10471111 Whirlpool Leg Lever
2	WPW10471100 Whirlpool Panel
3	WPW10471098 Whirlpool Panel
4	W11171132 Whirlpool Panel
5	WPW10471101 Whirlpool Shelf
6	W10471105 Whirlpool Panel
7	PANEL, BACK BBB
8	PANEL, BACK CCC
9	W10471108 Whirlpool Panel
10	W10471109 Whirlpool Panel
11	WPW10280137 Whirlpool Door
12	WPW10471103 Whirlpool Door
13	NAMEPLATE, GLADIATOR
14	WPW10471102 Whirlpool Shelf
