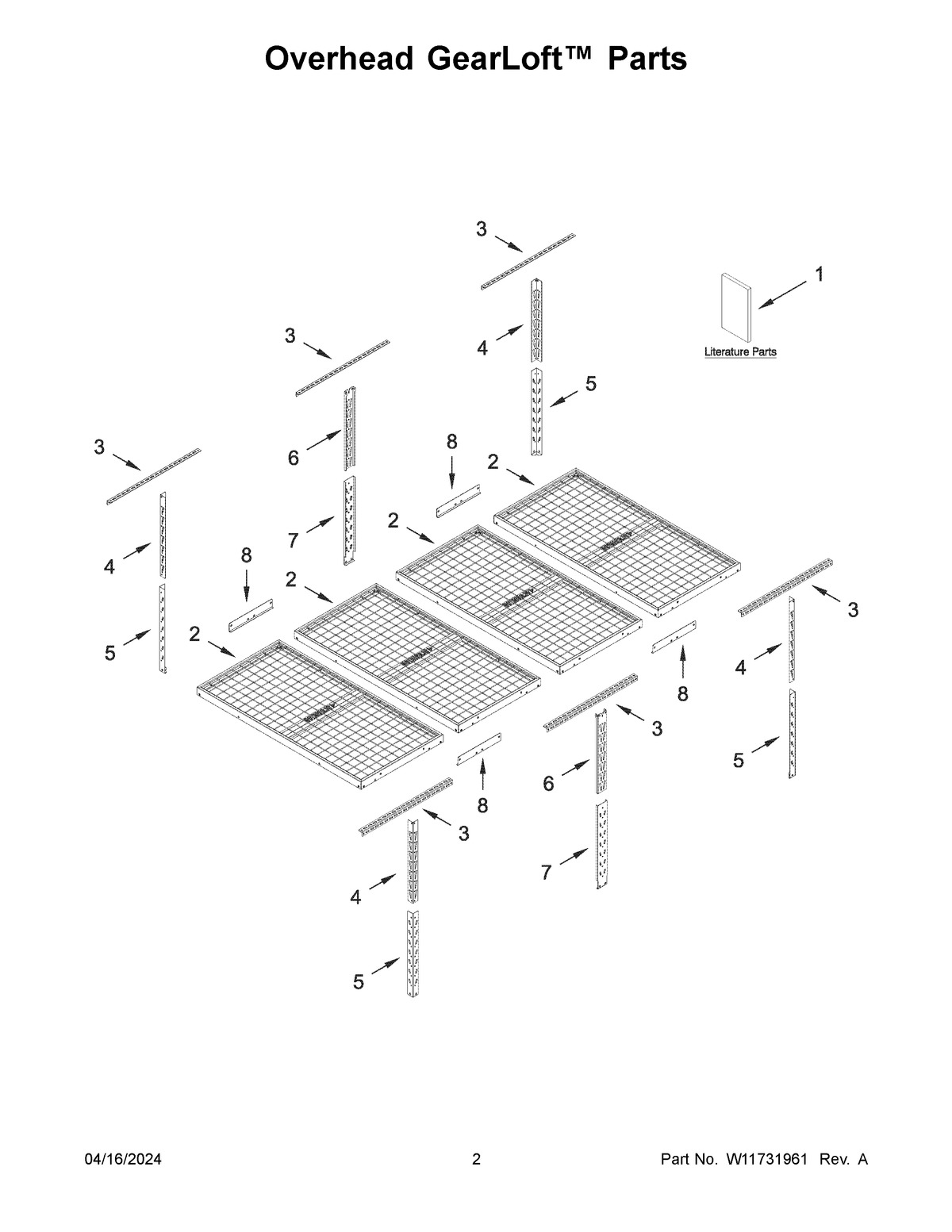

GALS48M4JW00 02 – OVERHEAD GEARLOFT PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIHARDWARE, COMPLETE (HAMMERED WHITE)
NIHARDWARE, COMPLETE (HAMMERED GRANITE)
1OWNER'S MANUAL
2SHELF P1 (HAMMERED GRANITE)
2ASHELF P1 (HAMMERED WHITE)
3ACEILING BRACKET P2 (HAMMERED WHITE)
3CEILING BRACKET P2 (HAMMERED GRANITE)
4W11375624 Whirlpool Support
4ACORNER SUPPORT, UPPER P3 (HAMMERED WHITE)
5CORNER SUPPORT, LOWER P4 (HAMMERED GRANITE)
5ACORNER SUPPORT, LOWER P4 (HAMMERED WHITE)
6MIDDLE SUPPORT, UPPER P5 (HAMMERED GRANITE)
6AMIDDLE SUPPORT, UPPER P5 (HAMMERED WHITE)
7AMIDDLE SUPPORT, LOWER P6 (HAMMERED WHITE)
7MIDDLE SUPPORT, LOWER P6 (HAMMERED GRANITE)
8JOINT PLATE P7 (HAMMERED GRANITE)
8AJOINT PLATE P7 (HAMMERED WHITE)
