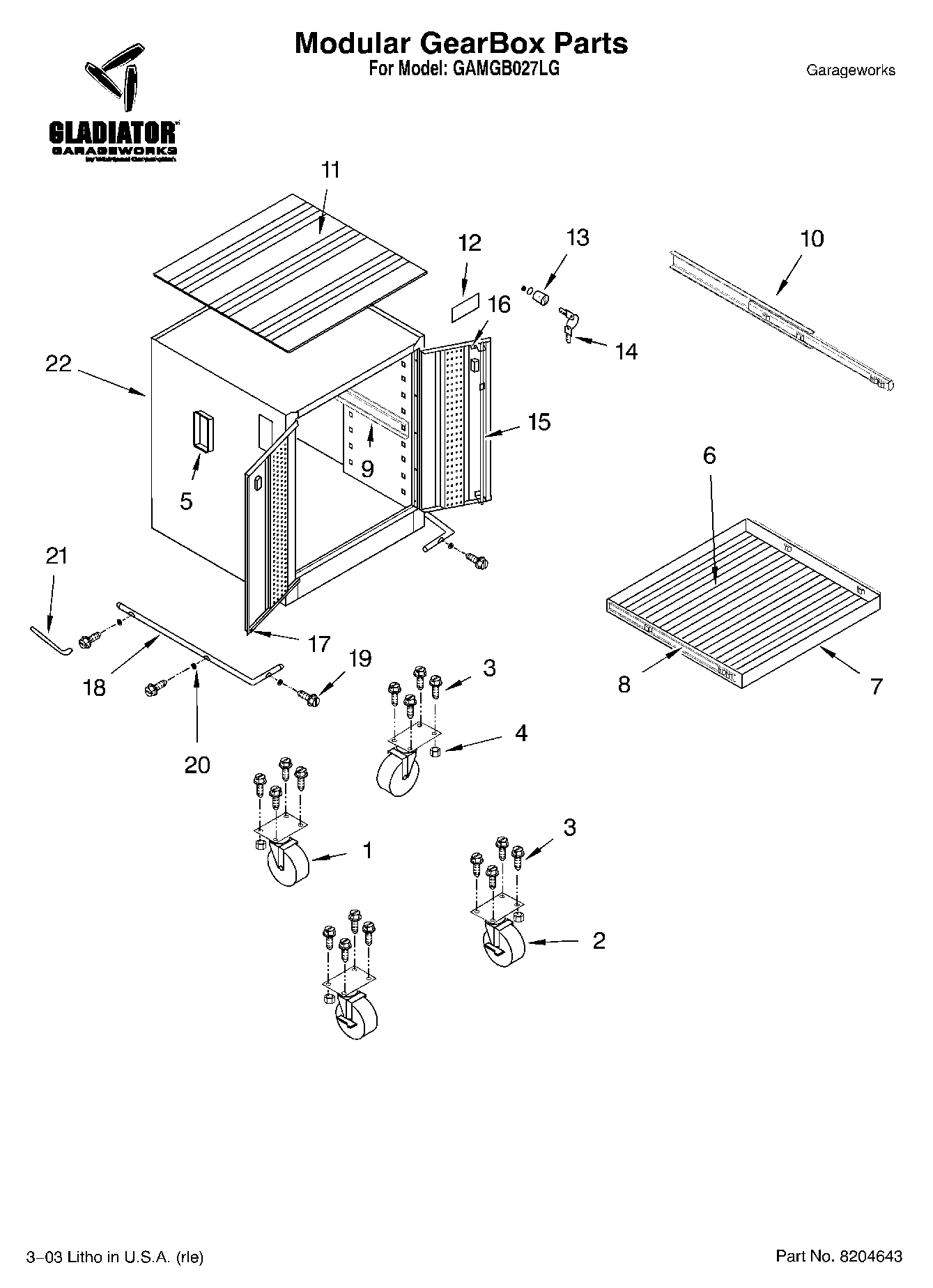

GAMGB027LG 01 – Modular GearBox Parts – OPTIONAL PARTS (NOT INCLUD

GAMGB027LG 01 – Modular GearBox Parts – OPTIONAL PARTS (NOT INCLUD

Written by

in

GAMGB027LG 01 – Modular GearBox Parts – OPTIONAL PARTS (NOT INCLUD

Products

PositionProduct
1WP8204601 Whirlpool Caster Assembly
28211250 Whirlpool Caster Assembly
3WP8204609 Whirlpool Bolt
4WP8204610 Whirlpool Nut
5W10914558 Whirlpool Door Handle
6WP8204604 Whirlpool Liner Assembly
7Tray (Not Serviced)
8Guide (Not Serviced)
9Slide, Cabinet Tray & Guide Assy (Not Serviced)
10Slide, Ball Bearing 21“
118204605 Whirlpool Mat
12NAMEPLATE, GLADIATOR
13Lock, 90 Degree w/2 Keys
14W11383363 Whirlpool Keys
15Cam, Flat w/Door Rods (Not Serviced)
16Spring & Clip (Not Serviced)
17Grommet, Rubber
188204634 Whirlpool Bumper
19Screw
20WP8211254 Whirlpool Washer
21Key-Hex
22Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
