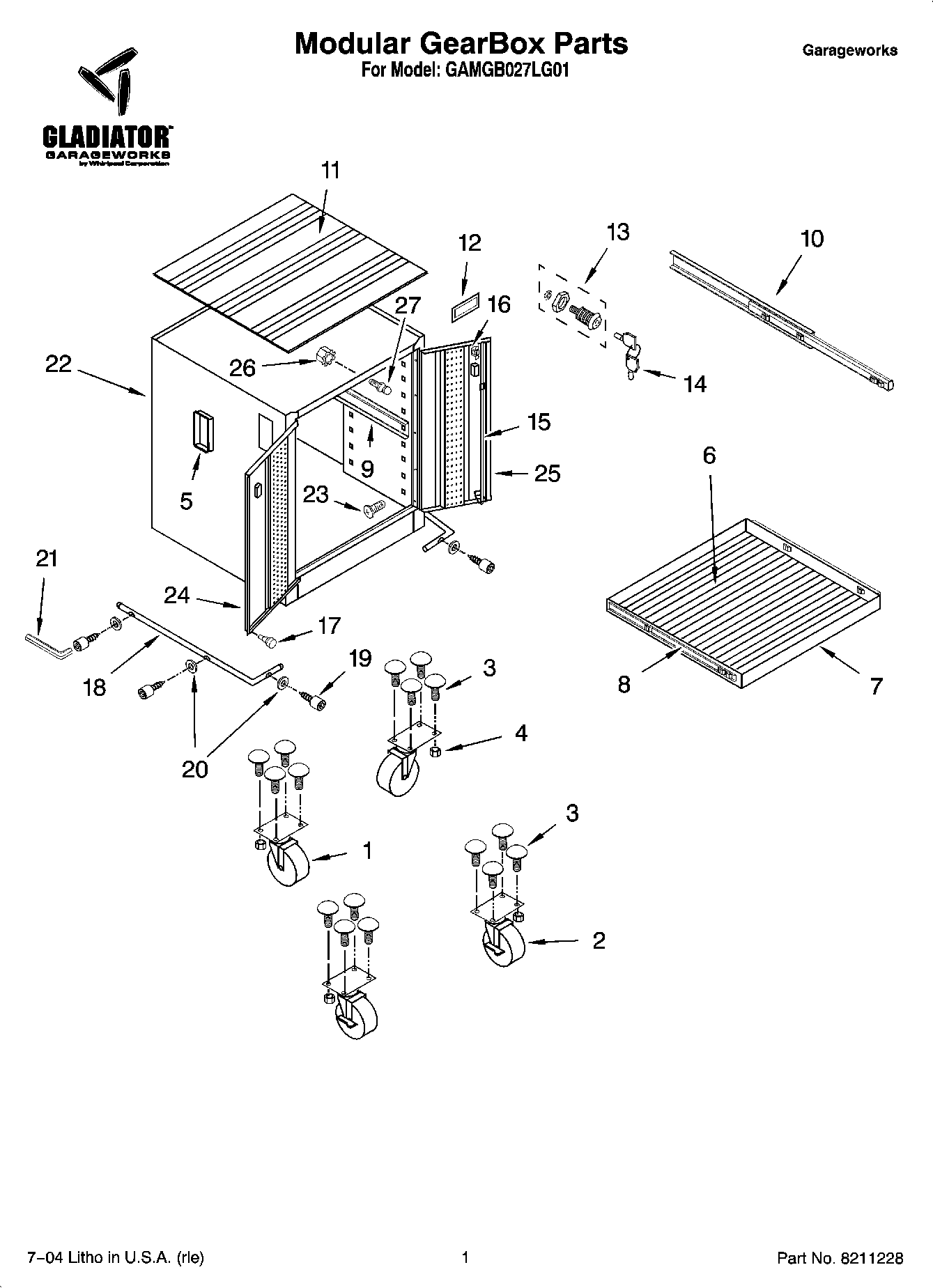

GAMGB027LG01 01 – Modular GearBox Parts

Products

Position	Product
1	WP8204601 Whirlpool Caster Assembly
2	8211250 Whirlpool Caster Assembly
3	WP8204609 Whirlpool Bolt
4	WP8204610 Whirlpool Nut
5	W10914558 Whirlpool Door Handle
6	WP8204604 Whirlpool Liner Assembly
7	Tray
8	Guide, Drawer
9	Slide, Cabinet
10	Slide, Ball Bearing 21“
11	8204605 Whirlpool Mat
12	NAMEPLATE, GLADIATOR
13	Lock, 90 Degree w/2 Keys
14	W11383363 Whirlpool Keys
15	Cam Flat w/Door Rods
16	W11369680 Whirlpool Catch Stud
17	Grommet, Rubber
18	8204634 Whirlpool Bumper
19	Screw
20	WP8211254 Whirlpool Washer
21	Key-Hex
22	Cabinet Assy
23	Screw
24	Door & Handle Assembly (Left)
25	Door & Handle Assembly (Right)
26	Nut, Keps
27	Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
27	Optional Parts Not Included
27	Miscellaneous
