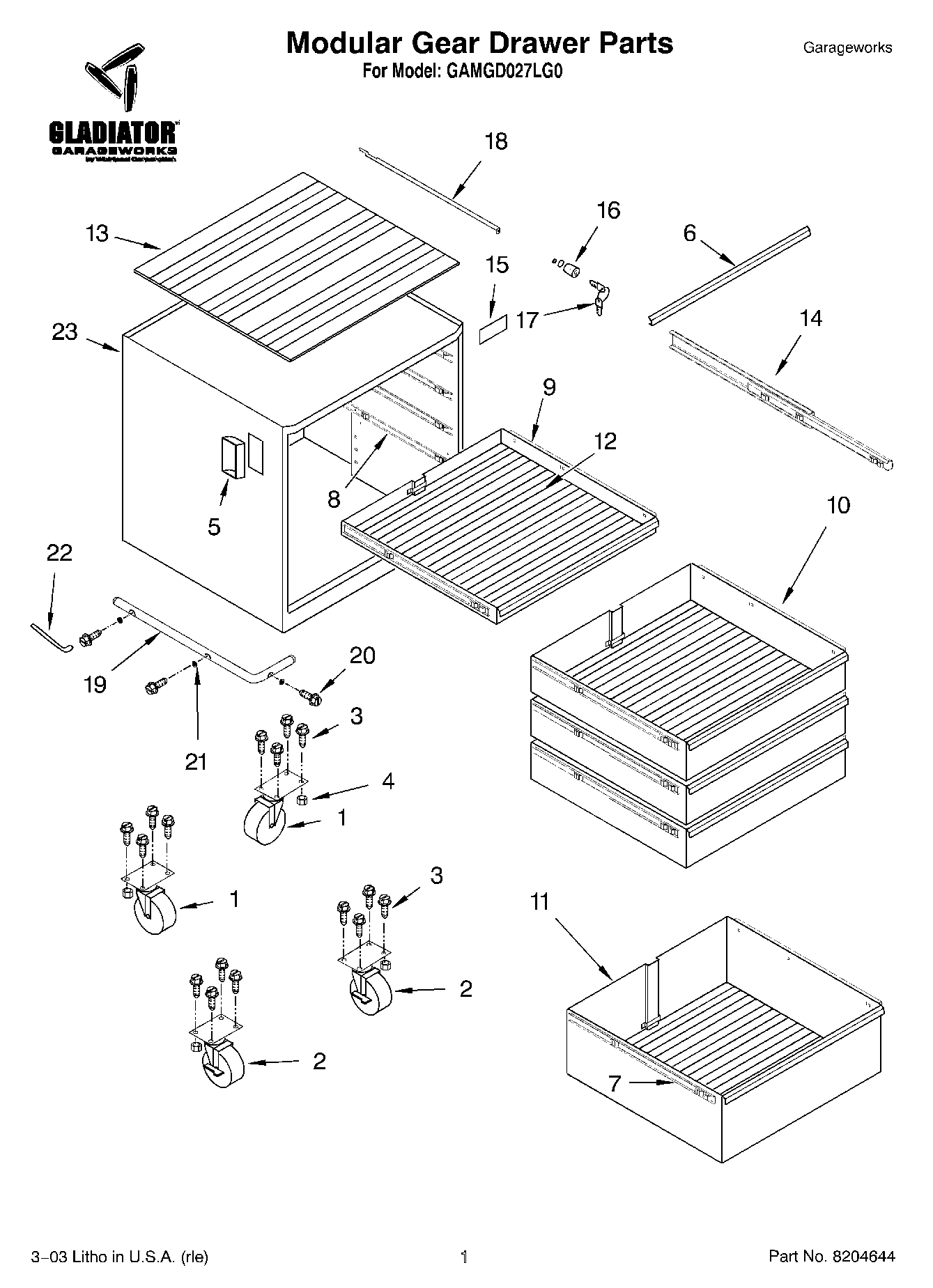

GAMGD027LG0 01 – Modular Gear Drawer Parts – OPTIONAL PARTS (NOT IN

Products

Position	Product
1	WP8204601 Whirlpool Caster Assembly
2	8211250 Whirlpool Caster Assembly
3	WP8204609 Whirlpool Bolt
4	WP8204610 Whirlpool Nut
5	W10914558 Whirlpool Door Handle
6	Trim, Drawer (Not Serviced)
7	Guide, Drawer (Not Serviced)
8	Slide, Cabinet (Not Serviced)
9	Drawer, 2“ w/Trim & Guide
10	Drawer, 4“ w/Trim & Guide
12	WP8204604 Whirlpool Liner Assembly
13	8204605 Whirlpool Mat
14	Slide, Ball Bearing 21“
15	NAMEPLATE, GLADIATOR
16	LOCK
17	W11383363 Whirlpool Keys
18	Keybar (Not Serviced)
19	Bumper
20	Screw
21	WP8211254 Whirlpool Washer
22	Key-Hex
23	Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
