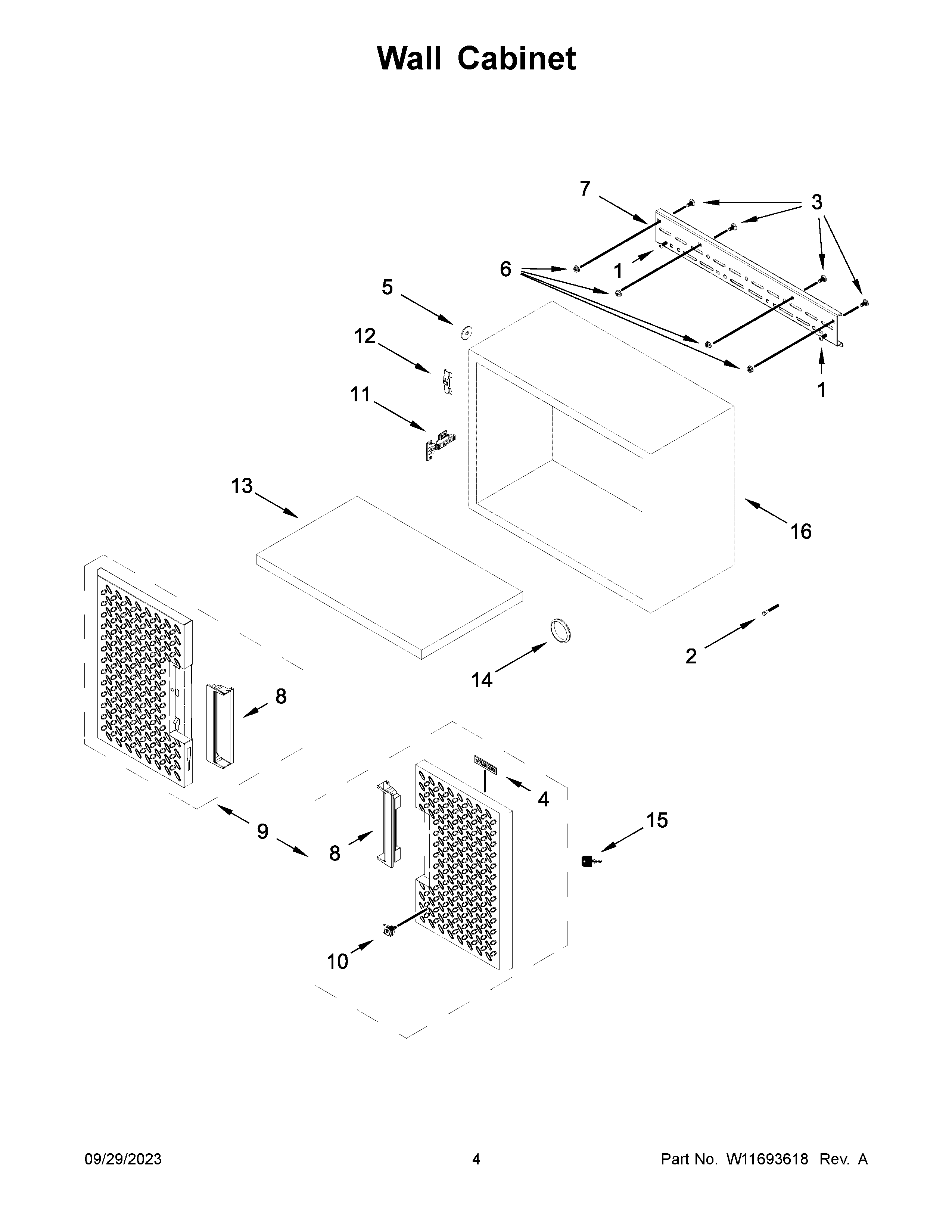

GANF04WCMTS00 03 – WALL CABINET

Products

Position	Product
1	SCREW
2	BOLT
3	BOLT
4	NAMEPLATE, GLADIATOR
5	WASHER
6	NUT
7	BRACKET, WALL MOUNTING
8	HANDLE
9A	DOOR ASSEMBLY (RIGHT)
9	DOOR ASSEMBLY (LEFT)
10	LOCK ASSY
11	HINGE, SOFT CLOSE
12	SUPPORT, SHELF
13	SHELF
14	GROMMET
15	KEY
16	CABINET (NOT A SERVICEABLE PART)
