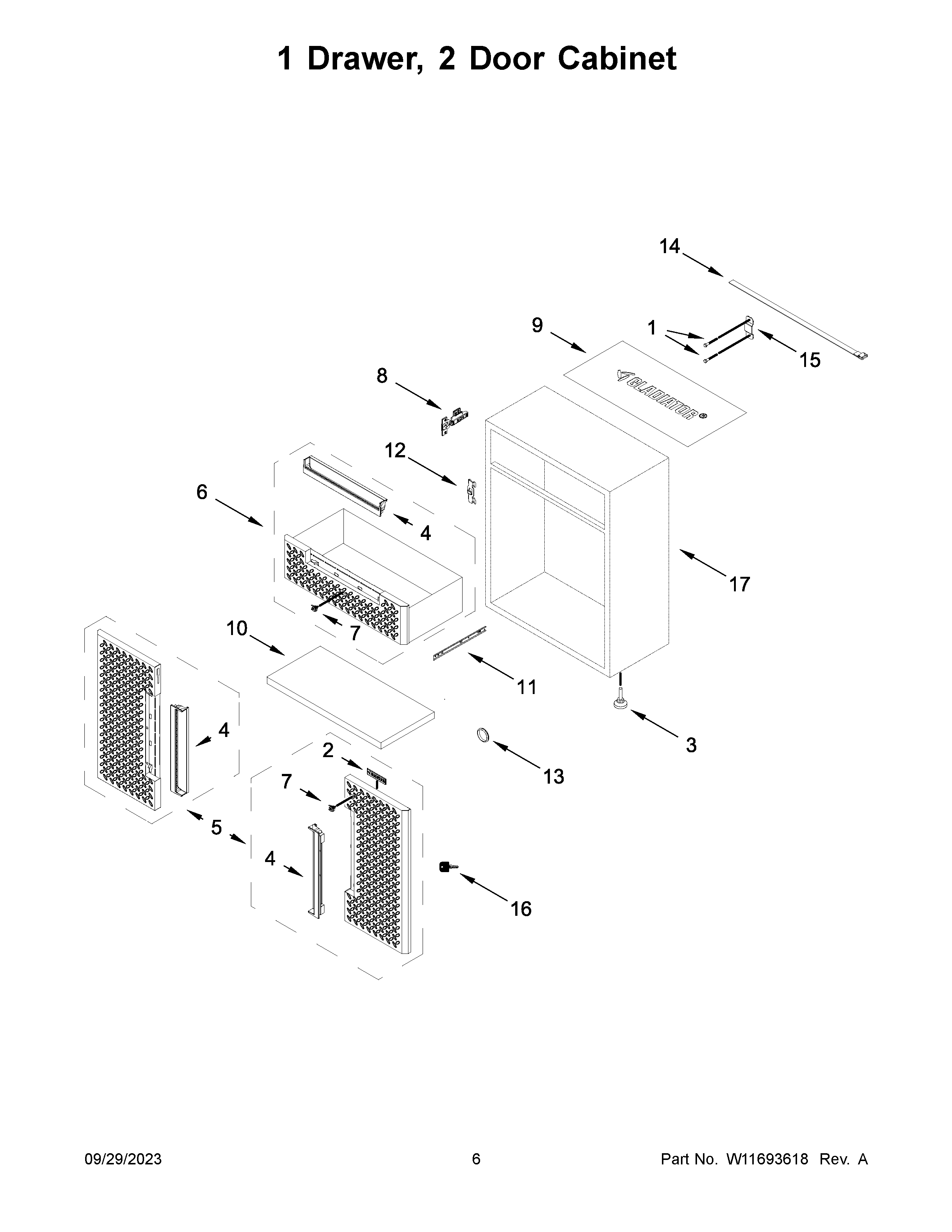

GANF04WCMTS00 04 – 1 DRAWER, 2 DOOR CABINET

Products

Position	Product
1	BOLT
2	NAMEPLATE, GLADIATOR
3	FEET, ADJUSTABLE
4	HANDLE
5	DOOR ASSEMBLY (LEFT)
5A	DOOR ASSEMBLY (RIGHT)
6	DRAWER ASSY
7	LOCK ASSY
8	HINGE, SOFT CLOSE
9	MAT, TOP
10	SHELF
11A	DRAWER SLIDE (RIGHT)
11	DRAWER SLIDE (LEFT)
12	SUPPORT, SHELF
13	GROMMET
14	STRAP, SAFETY
15	BRACKET, SAFETY
16	KEY
17	CABINET (NOT A SERVICEABLE PART)
