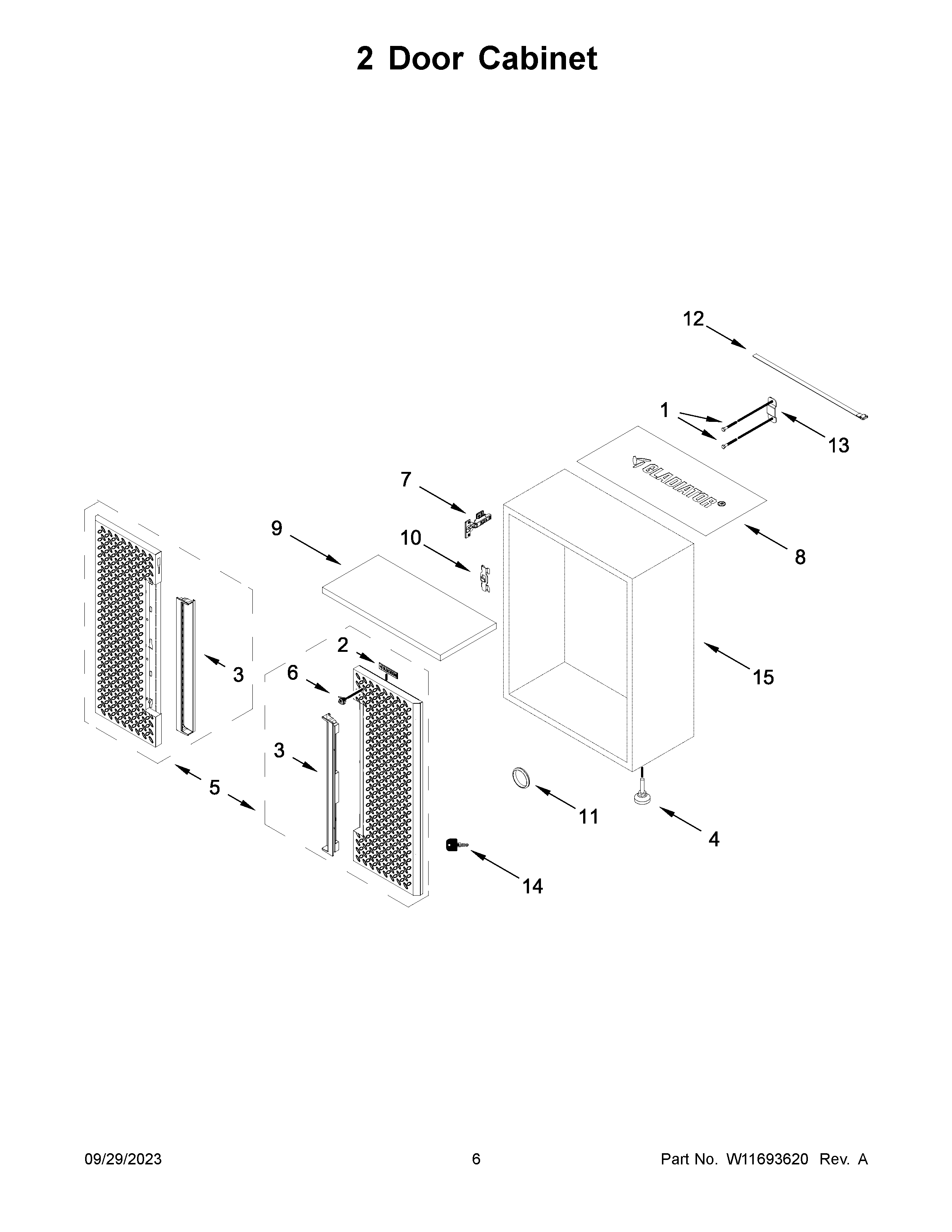

GANF04WFMTS00 04 – 2 DOOR CABINET

Written by

Products

Position	Product
1	BOLT
2	NAMEPLATE, GLADIATOR
3	HANDLE
4	FEET, ADJUSTABLE
5	DOOR ASSEMBLY (LEFT)
5A	DOOR ASSEMBLY (RIGHT)
6	LOCK ASSY
7	HINGE, SOFT CLOSE
8	MAT, TOP
9	SHELF
10	SUPPORT, SHELF
11	GROMMET
12	STRAP, SAFETY
13	BRACKET, SAFETY
14	KEY
15	CABINET (NOT A SERVICEABLE PART)
