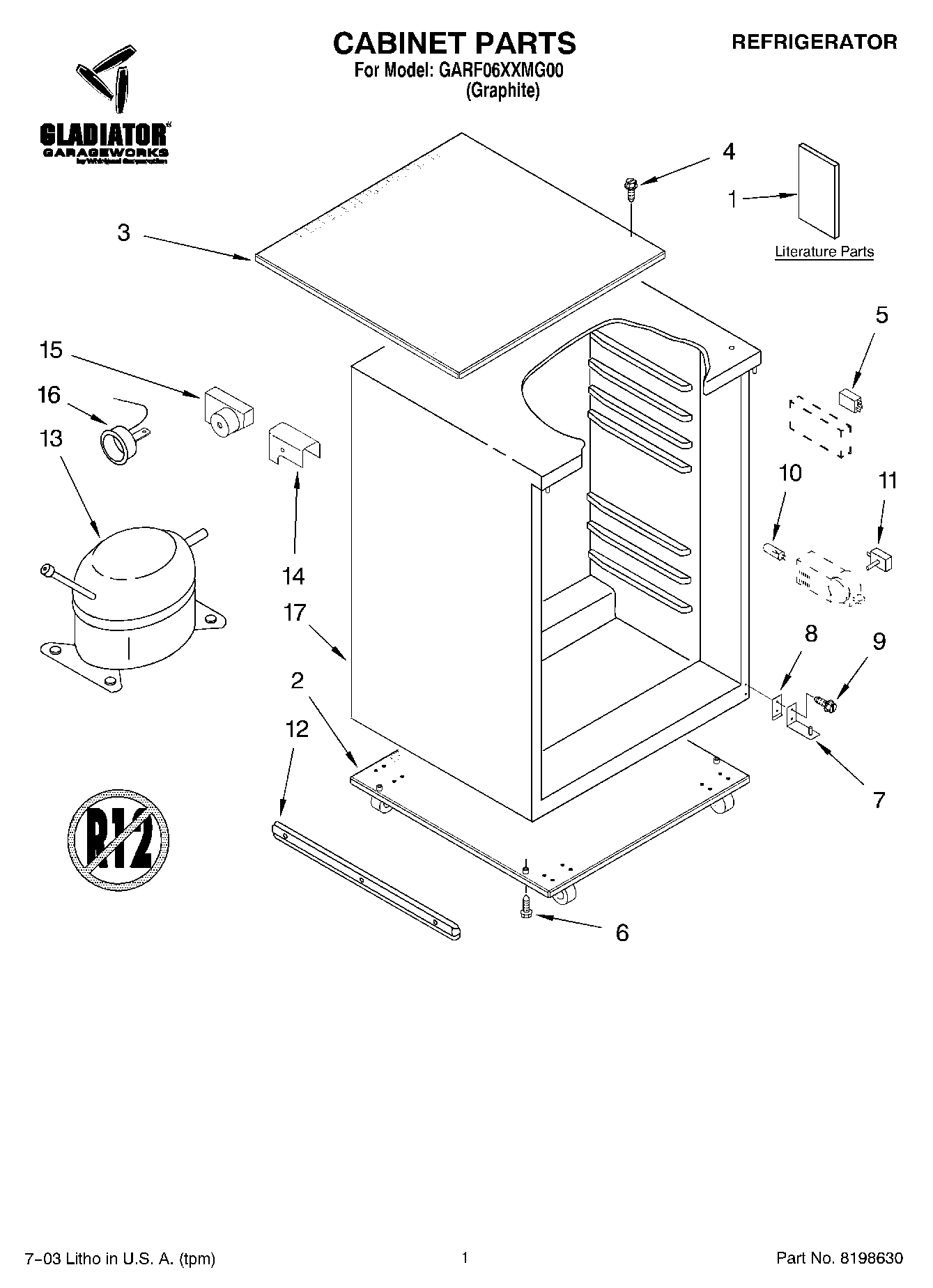

GARF06XXMG00 01 – CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Service & Wiring Sheet)
2	Caster Plate Assembly
3	Cover, Cabinet
4	WP1163283 Whirlpool Air Conditioner Screw
5	Thermostat (Heater Control)
6	Screw (10-12 x .875)
7	Hinge Assembly
8	Stop, Door
9	Screw
10	W10888319 Whirlpool Light Bulb
11	Thermostat, Adjustable
12	Bumper
13	Compressor (Not A Serviceable Part)
14	Cover, Terminal
15	Relay / Overload (Combination)
16	Bi-metal Assembly
17	Cabinet (Not A Serviceable Part)
