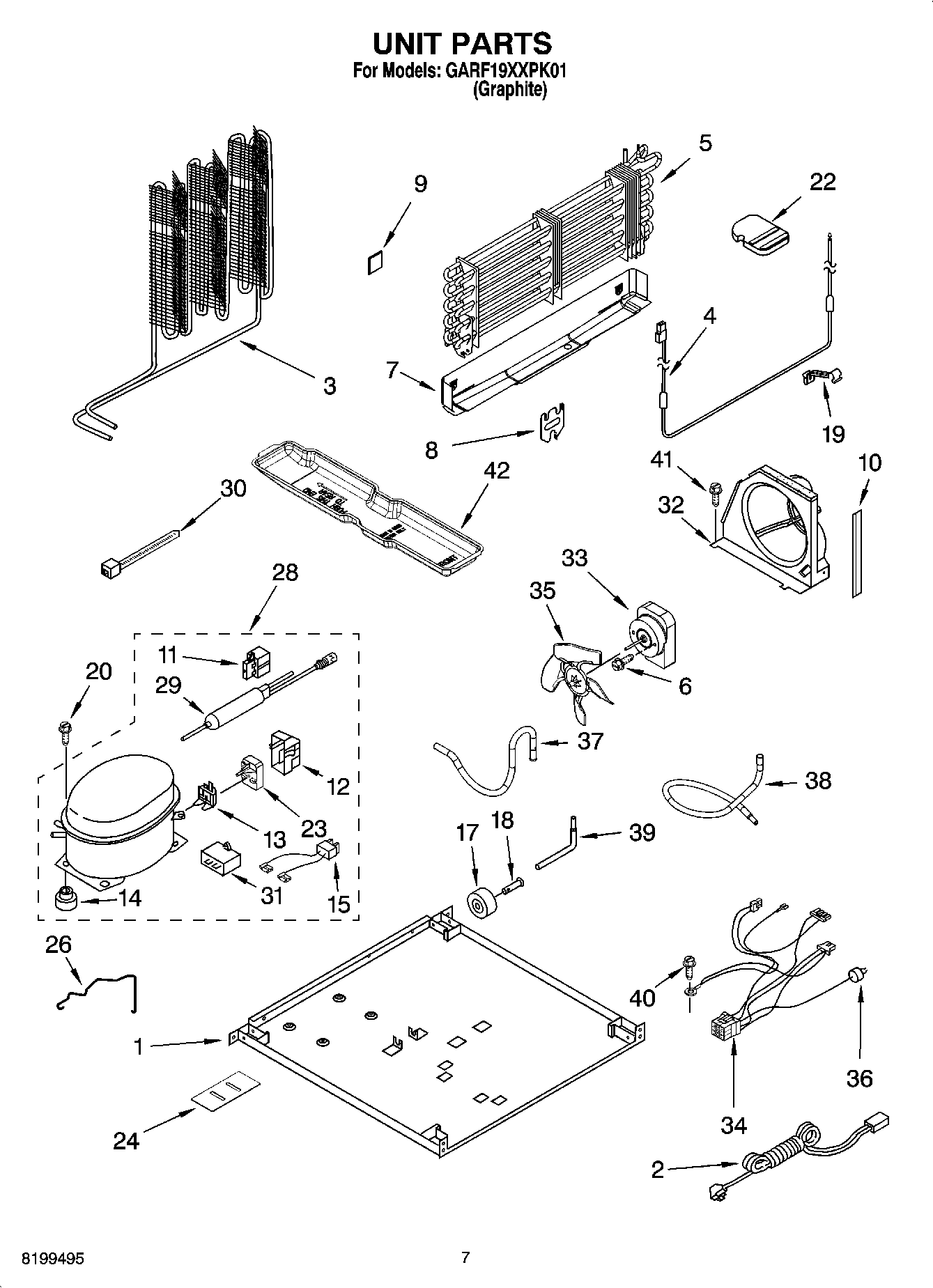

GARF19XXPK01 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	2187762 Whirlpool Refrigerator Power Cord
3	WP2214960 Whirlpool Refrigerator Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	W11553819 Whirlpool Refrigerator Insulation
10	Extension, Air Baffle
11	W10920279 Whirlpool Refrigerator Start Relay
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2172890 Whirlpool Refrigerator Wire
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
22	Support Block
23	Start-Device Combination (Start Relay and Overload for Production
24	Cover, Unit
26	2223314 Whirlpool Refrigerator Clip
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	Air Baffle
33	WP2188874 Whirlpool Refrigerator Condenser Motor
34	2187761 Whirlpool Refrigerator Wire Harness
35	W11458267 Whirlpool Refrigerator Fan Blade
36	Bi-metal
37	2205533 Whirlpool Refrigerator Tube
38	2214924 Whirlpool Refrigerator Tube
39	2154109 Whirlpool Refrigerator Tube
40	WP489128 Whirlpool Refrigerator Screw
41	3400518 Whirlpool Oven Foot Mount Screw
42	Following Parts Not Illustrated and Optional Parts Not Included
42	978026 Whirlpool Refrigerator Primary Valve
42	8201826 Whirlpool Refrigerator Evaporator Tray
42	876764 Whirlpool Refrigerator Primary Valve
42	978027 Whirlpool Refrigerator Primary Valve
42	978030 Whirlpool Refrigerator Valve
42	WP978025 Whirlpool Refrigerator Valve
42	VALVE, ACCESS (1/2“)
42	VALVE, ACCESS (5/8“)
42	REFRIG
