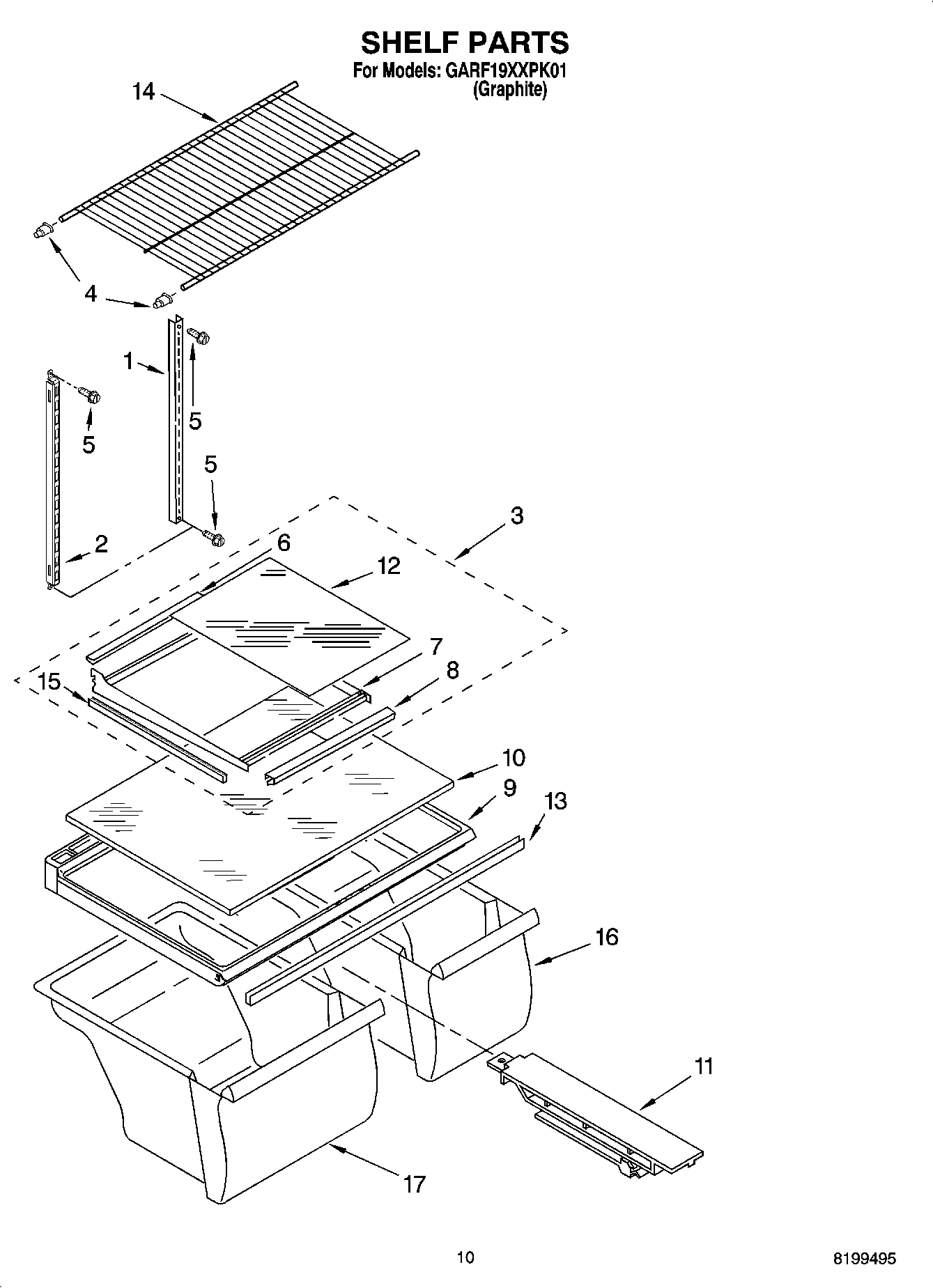

GARF19XXPK01 06 – SHELF PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI58086A1
	WPL 799832
	WPL 799833
	WPL 876029
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI58087A1
	WPL ARI58084A7
	WPL ARI58085A9
	Enamel, Black (1 Qt. Uncut)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Torx Key
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	WP505587 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	TAPE, VINYL (3/4 X 108“)
	WP542638 Whirlpool Refrigerator Grease
	WP503695 Whirlpool Refrigerator Sealer
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Shelf, Cantilever (Complete)
4	2163762 Whirlpool Refrigerator Cup Assembly
5	WP489478 Whirlpool Refrigerator Screw
6	WP2188689 Whirlpool Refrigerator Shelf Trim
7	Shelf, Catnilever
8	Trim, Shelf Front
9	WP2314548 Whirlpool Refrigerator Cover
10	WP2169921 Whirlpool Refrigerator Glass Shelf
11	WP2163835 Whirlpool Track Assembly
12	Glass, Half Shelf
13	WP2172748 Whirlpool Drawer Support
14	WP2176275 Whirlpool Refrigerator Wire Shelf
15	Trim, Shelf Side
16	W10856580 Whirlpool Crisper Pan
17	W10854037 Whirlpool Refrigerator Crisper Pan
