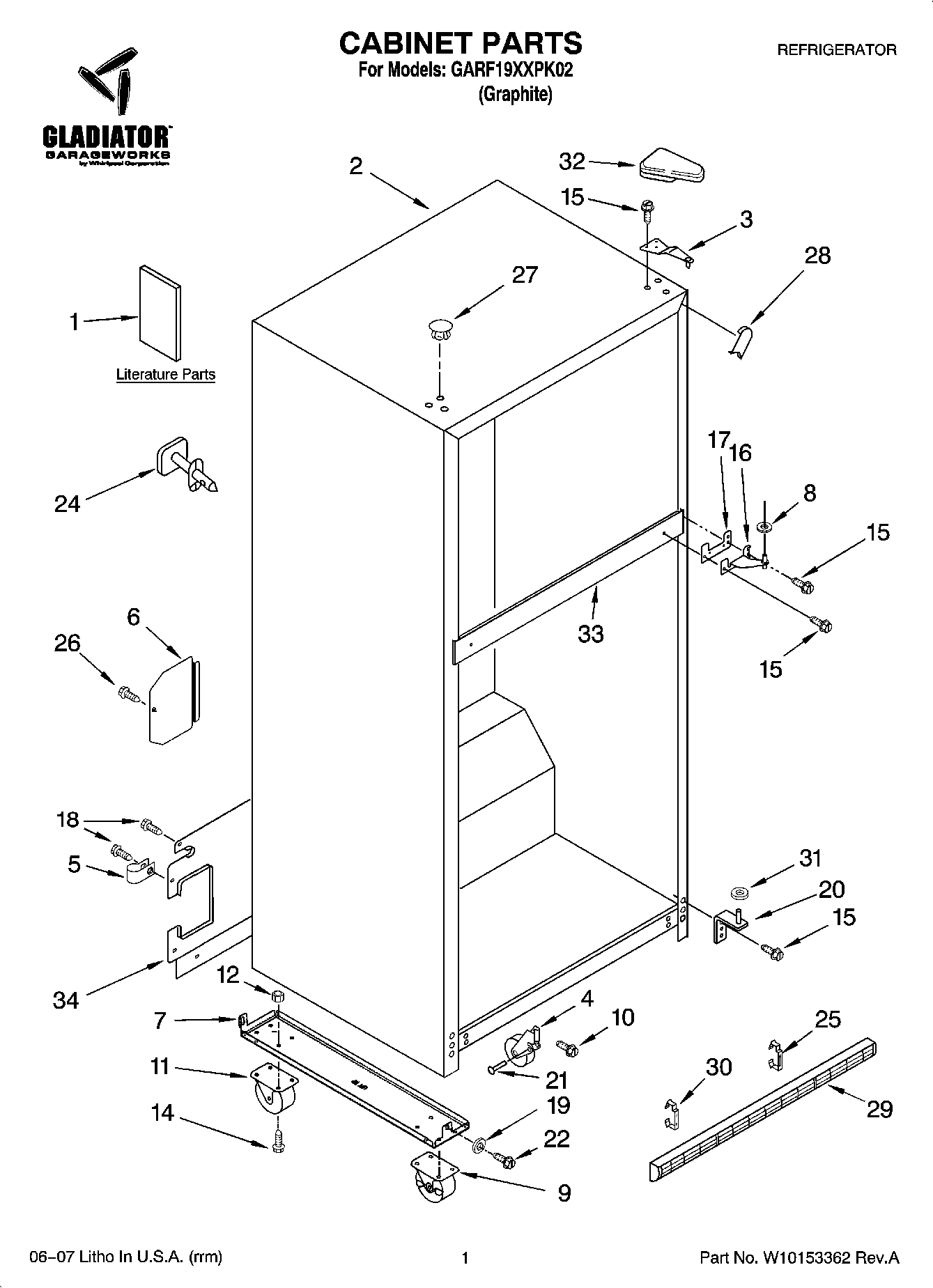

GARF19XXPK02 01 – CABINET PARTS

GARF19XXPK02 01 – CABINET PARTS

Written by

in

GARF19XXPK02 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet (English)
1Customer Quick Tips
1Energy Label (Spanish)
1Energy Label (English)
1Use & Care Guide
2Cabinet, (Not A Serviceable Part)
3WP2261963 Whirlpool Refrigerator Door Hinge
4WP2166108 Whirlpool Refrigerator Cabinet Roller
5489348 Whirlpool Refrigerator Tube Clamp
6Cover, Water Valve
7Bracket, Caster (Left)
7Bracket, Caster (Right)
8WP489467 Whirlpool Hinge Shim
9WP2253168 Whirlpool Refrigerator Caster
10WP3400504 Whirlpool Refrigerator Screw
11WP2253169 Whirlpool Refrigerator Caster
12WP8533952 Whirlpool Refrigerator Nut
14WP3400527 Whirlpool Refrigerator Screw
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489427 Whirlpool Refrigerator Screw
19Lock Washer (4)
20WP2254473 Whirlpool Refrigerator Door Hinge
21W11594405 Whirlpool Axle
223400241 Whirlpool Screw
24Fitting, Water Tube (Not Serviced)
252254385 Whirlpool Refrigerator Clip
26WP489464 Whirlpool Refrigerator Screw
27Hole Plug (6) (Graphite)
28Corner Filler (2) (Graphite)
29Grille (Graphite)
30CLIP, GRILLE
31WP487576 Whirlpool Washer
32Cover, Hinge (Graphite)
33Rail, Center (Not Serviced)
34WP2189475 Whirlpool Refrigerator Unit Cover
