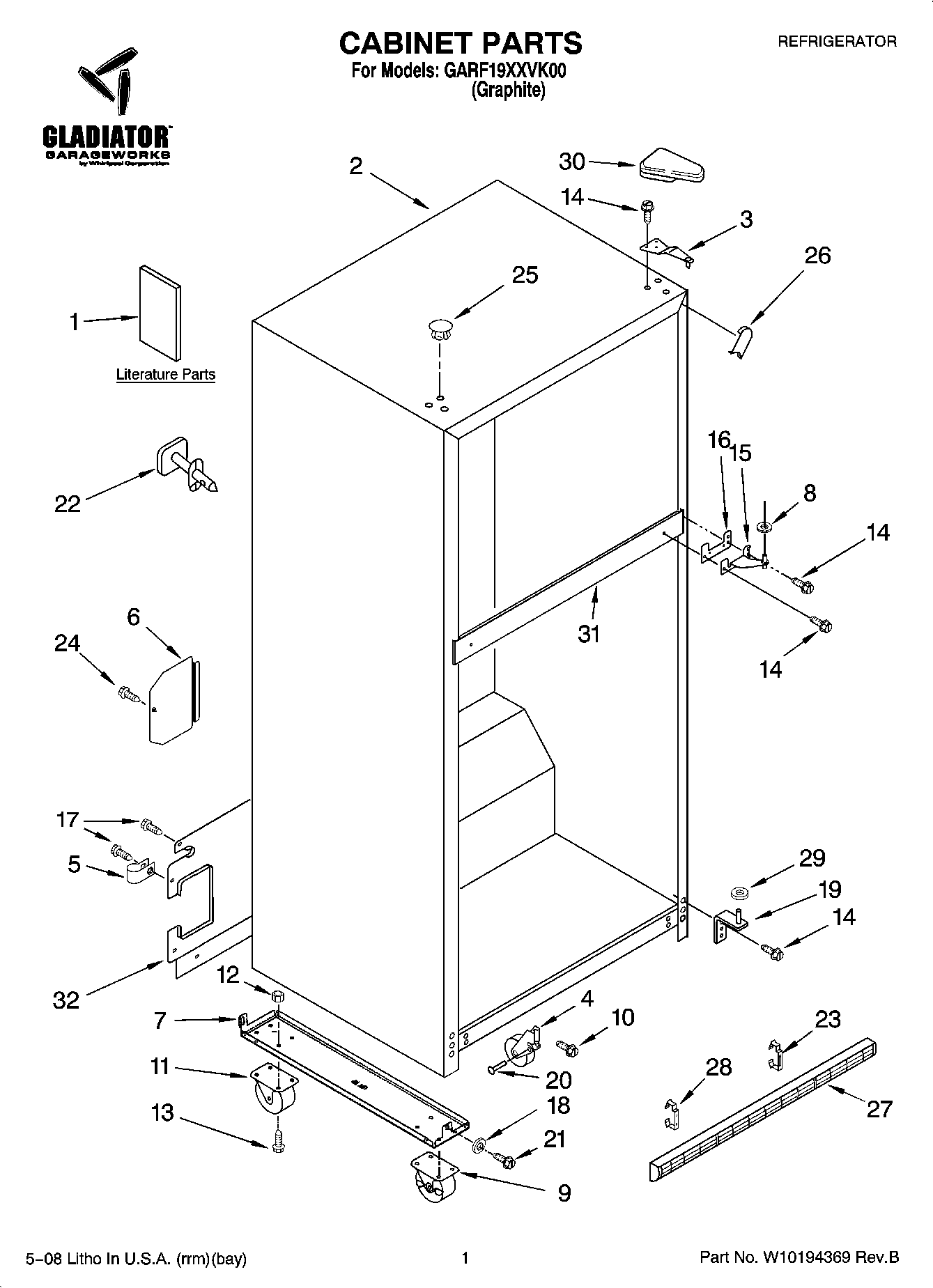

GARF19XXVK00 01 – CABINET PARTS

Products

PositionProduct
1Energy Label (Spanish)
1Energy Label (English)
1Service & Wiring Sheet (English)
1Use & Care Guide (Trilingual)
1Customer Quick Tips
1Use & Care Guide (Bilingual)
2Cabinet, (Not A Serviceable Part)
3WP2261963 Whirlpool Refrigerator Door Hinge
4WP2166108 Whirlpool Refrigerator Cabinet Roller
5489348 Whirlpool Refrigerator Tube Clamp
6Cover, Water Valve
7Bracket, Caster (Right)
7Bracket, Caster (Left)
8WP489467 Whirlpool Hinge Shim
9WP2253168 Whirlpool Refrigerator Caster
10WP3400504 Whirlpool Refrigerator Screw
11WP2253169 Whirlpool Refrigerator Caster
12WP8533952 Whirlpool Refrigerator Nut
13WP3400527 Whirlpool Refrigerator Screw
14WP489497 Whirlpool Screw
15WP2254618 Whirlpool Center Door Hinge
16WP2183852 Whirlpool Refrigerator Shim
17WP489427 Whirlpool Refrigerator Screw
18Lock Washer (4)
19WP2254473 Whirlpool Refrigerator Door Hinge
20W11594405 Whirlpool Axle
213400241 Whirlpool Screw
22Fitting, Water Tube (Not Serviced)
232254385 Whirlpool Refrigerator Clip
24WP489464 Whirlpool Refrigerator Screw
25Hole Plug (6) (Graphite)
26Corner Filler (2) (Graphite)
27Grille (Graphite)
28CLIP, GRILLE
29WP487576 Whirlpool Washer
30Cover, Hinge (Graphite)
31Rail, Center (Not Serviced)
32WP2189475 Whirlpool Refrigerator Unit Cover
