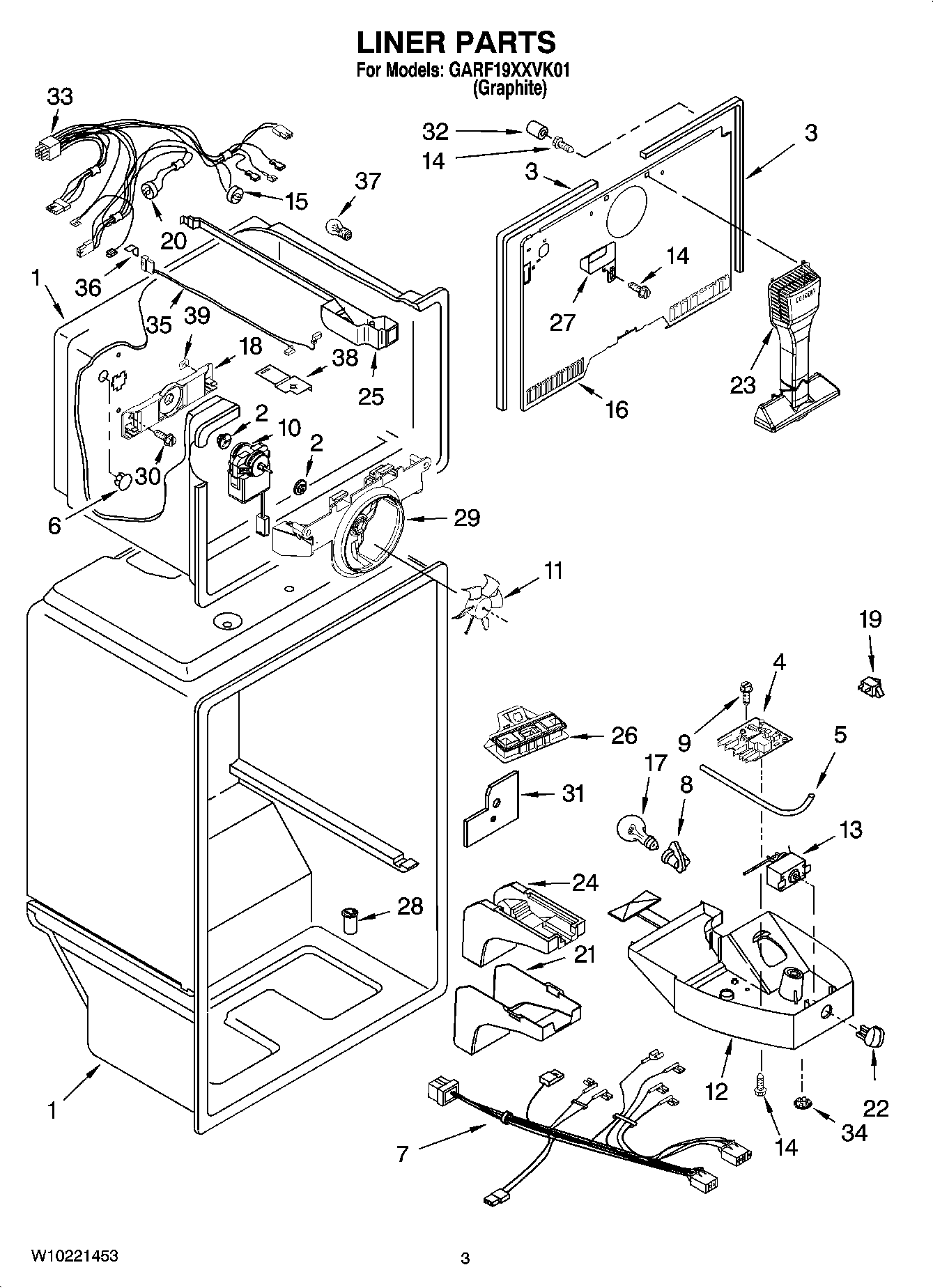

GARF19XXVK01 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Screw
10	WP2320109 Whirlpool Refrigerator Evaporator Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy.
14	WP489478 Whirlpool Refrigerator Screw
15	W10854531 Whirlpool Refrigerator Bimetallic Defrost
16	Cover, Evaporator
17	W10887190 Whirlpool Refrigerator Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	W10144425 Whirlpool Refrigerator Defrost Bimetal
21	Cover, Air Diffuser
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Housing Base
26	Air Separator Assembly
27	Cover, Hole
28	WP2210509 Whirlpool Refrigerator Tub Valve
29	BRACKET, FAN MOTOR
30	WP488163 Whirlpool Refrigerator Screw
31	Shield, heat
32	WP487996 Whirlpool Refrigerator Cap Tube
33	W10167462 Whirlpool Wire Harness
34	940014 Whirlpool Refrigerator Primary Button Plug
35	Wiring Harness, Freezer Light
36	Gasket, Rear
37	4396822 Whirlpool Refrigerator Light Bulb
38	Electrical Shield, Freezer Light
39	Retainer-Screw
