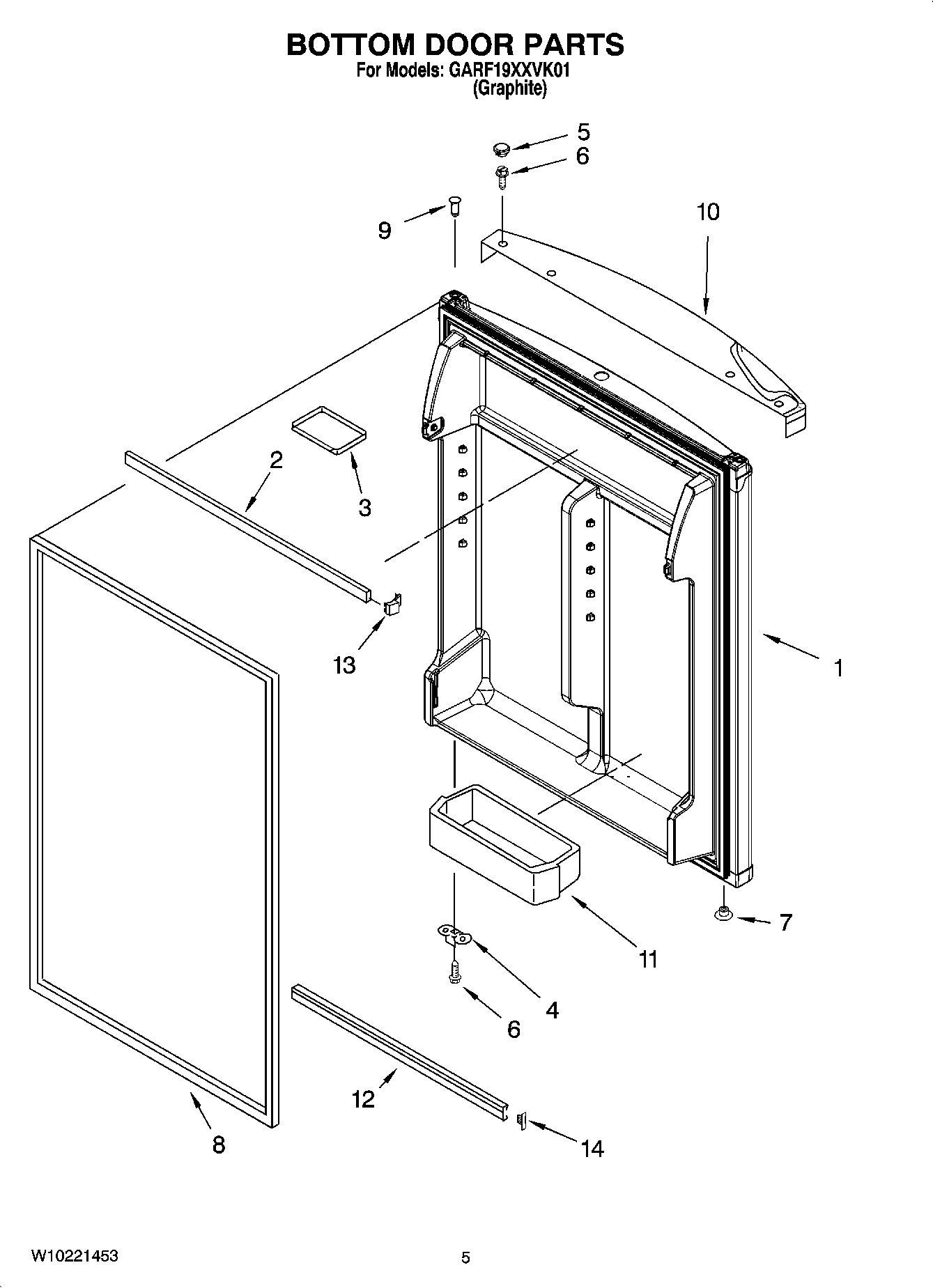

GARF19XXVK01 03 – BOTTOM DOOR PARTS

GARF19XXVK01 03 – BOTTOM DOOR PARTS

Written by

in

GARF19XXVK01 03 – BOTTOM DOOR PARTS

Products

PositionProduct
1Bottom Door (Includes 8 & 12) (Graphite)
2WP2159312 Whirlpool Refrigerator Door Trim
3Tray, Door
4W11745278 Whirlpool Bracket
5Hole Plug, Endcap (Graphite)
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
9WP2183003 Whirlpool Thimble
10Handle (Graphite)
11Bin, Door (4)
12WPW10421484 Whirlpool Refrigerator Door Trim
13Endcap, Door Trim
14WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
