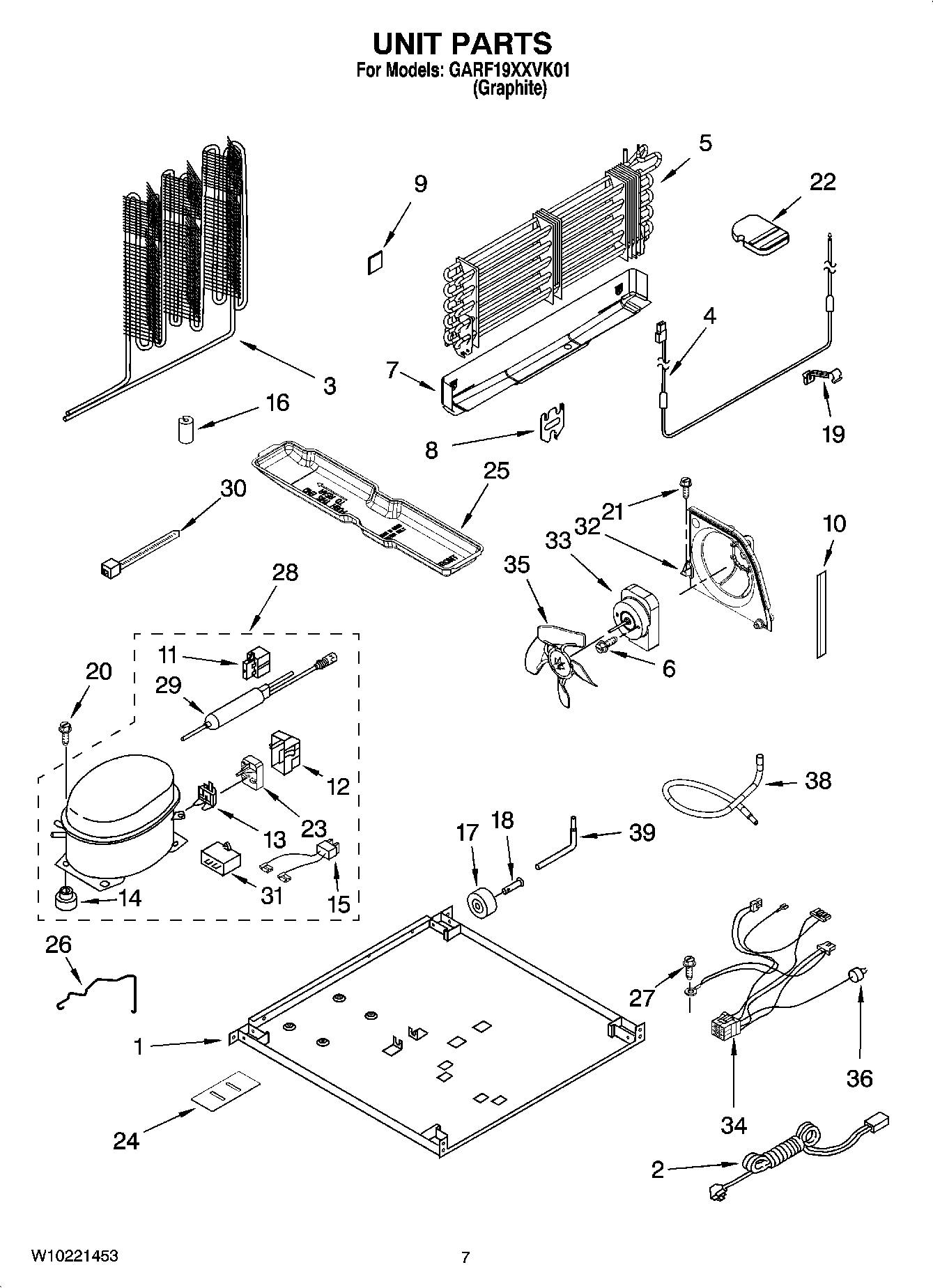

GARF19XXVK01 04 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 4.00
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	978027 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
1	Plate, Unit Mounting
2	2187762 Whirlpool Refrigerator Power Cord
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	W11553819 Whirlpool Refrigerator Insulation
10	Extension, Air Baffle
11	W10920279 Whirlpool Refrigerator Start Relay
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2172890 Whirlpool Refrigerator Wire
16	W10852725 Whirlpool Refrigerator Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	3400518 Whirlpool Oven Foot Mount Screw
22	Support Block
23	WP2225929 Whirlpool Refrigerator Start Device
24	Cover, Unit
25	WP2254574 Whirlpool Refrigerator Evaporator Tray
26	2212996 Whirlpool Refrigerator Retainer
27	WP489128 Whirlpool Refrigerator Screw
28	W10285060 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	WP2315541 Whirlpool Refrigerator Air Baffle
33	WP2188874 Whirlpool Refrigerator Condenser Motor
34	Wire Assy. Unit (Includes Item 36)
35	W11458267 Whirlpool Refrigerator Fan Blade
36	W10140772 Whirlpool Refrigerator Bi-Metal Defrost
38	Tube, Suction
39	2154109 Whirlpool Refrigerator Tube
