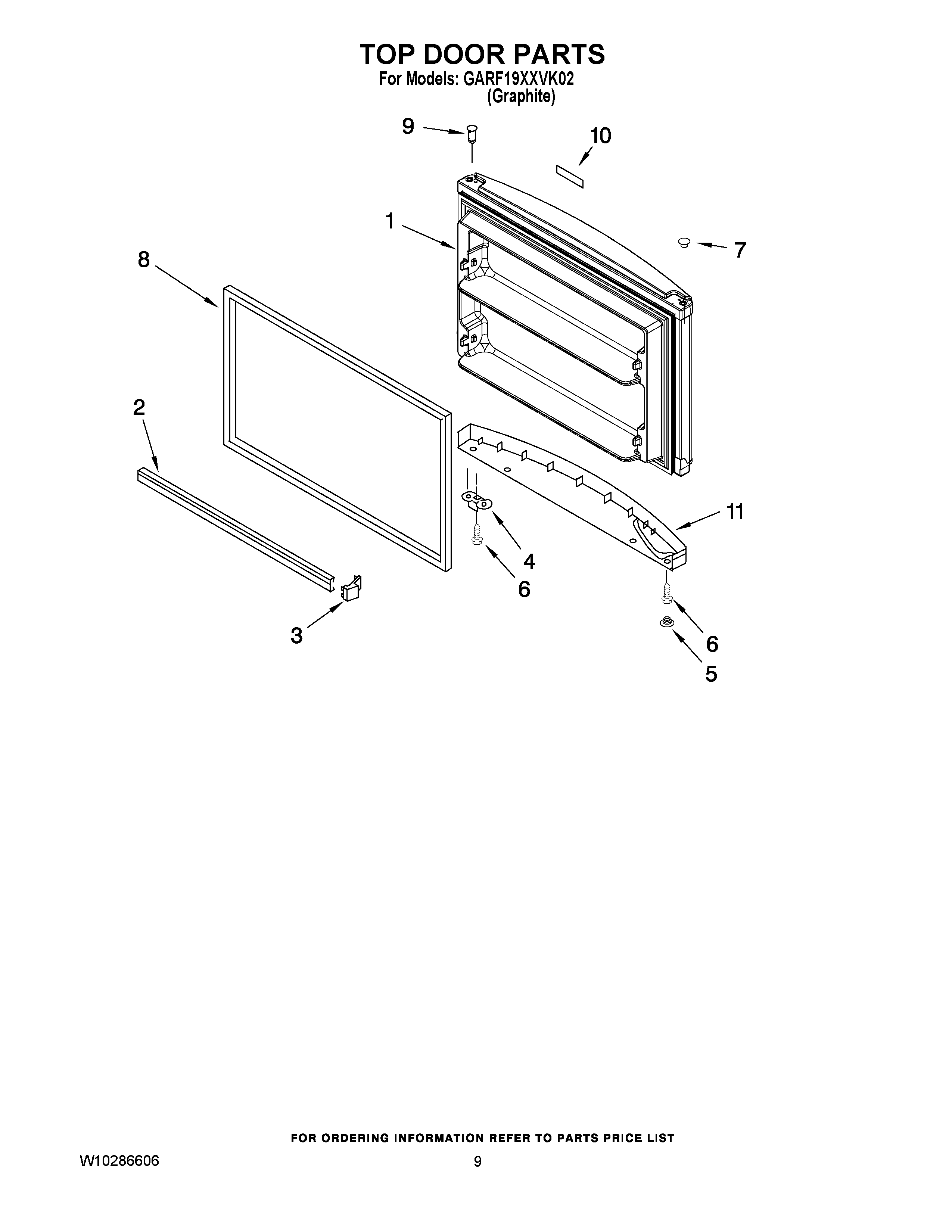

GARF19XXVK02 05 – TOP DOOR

Products

PositionProduct
1Top Door (Includes 8 & 12) (Graphite)
2Trim-Door (2)
3ENDCAP
4W11745278 Whirlpool Bracket
5Hole Plug, Endcap (Graphite)
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
82177304 Whirlpool Refrigerator FIP Gasket
9WP2183003 Whirlpool Thimble
102253774 Whirlpool Nameplate
11Handle (Graphite)
