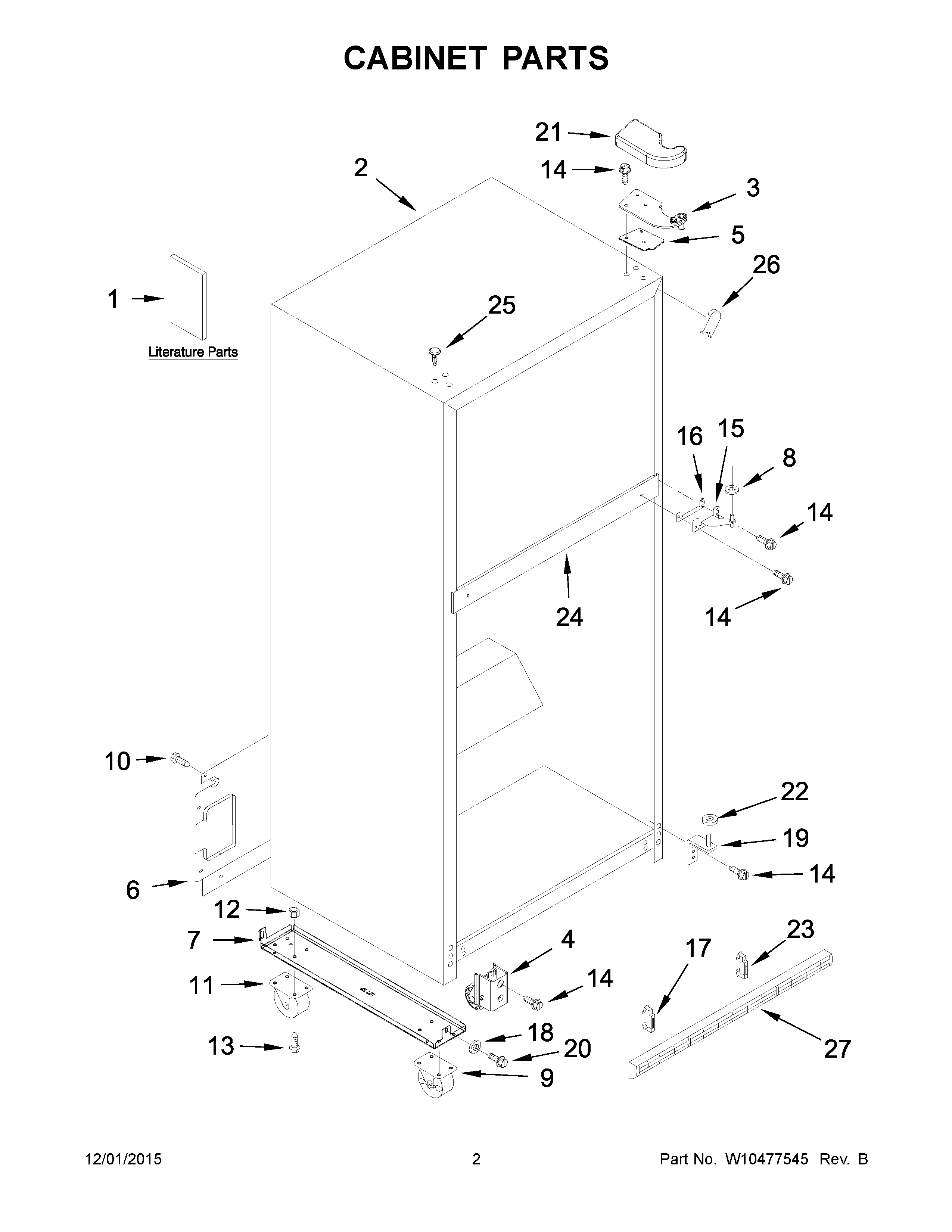

GARF19XXYK00 02 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1AUSE & CARE GUIDE
3WPW10300065 Whirlpool Refrigerator Door Hinge
4W10849386 Whirlpool Refrigerator CAB Roller
5W10883637 Whirlpool Refrigerator Hinge Shim
6WP2189475 Whirlpool Refrigerator Unit Cover
7BRACKET, CASTER (LEFT)
7ABRACKET, CASTER (RIGHT)
8WP489467 Whirlpool Hinge Shim
9WP2253168 Whirlpool Refrigerator Caster
10WP489442 Whirlpool Refrigerator Screw
11WP2253169 Whirlpool Refrigerator Caster
12WP8533952 Whirlpool Refrigerator Nut
13WP3400527 Whirlpool Refrigerator Screw
14WP489497 Whirlpool Screw
15WP2254618 Whirlpool Center Door Hinge
16WP2183852 Whirlpool Refrigerator Shim
17CLIP, GRILLE
18Lock Washer (4)
19WP2254473 Whirlpool Refrigerator Door Hinge
203400241 Whirlpool Screw
21AW10353945A Whirlpool Refrigerator Cover
21W10353948A Whirlpool Refrigerator Cover
22WP487576 Whirlpool Washer
232254385 Whirlpool Refrigerator Clip
24CABINET (NOT A SERVICEABLE PART)
25WPW10520305 Whirlpool Refrigerator Button Plug
26W11252732 Whirlpool Refrigerator Filler
27Grille (Includes Illus. 4 & 24) (Black)
