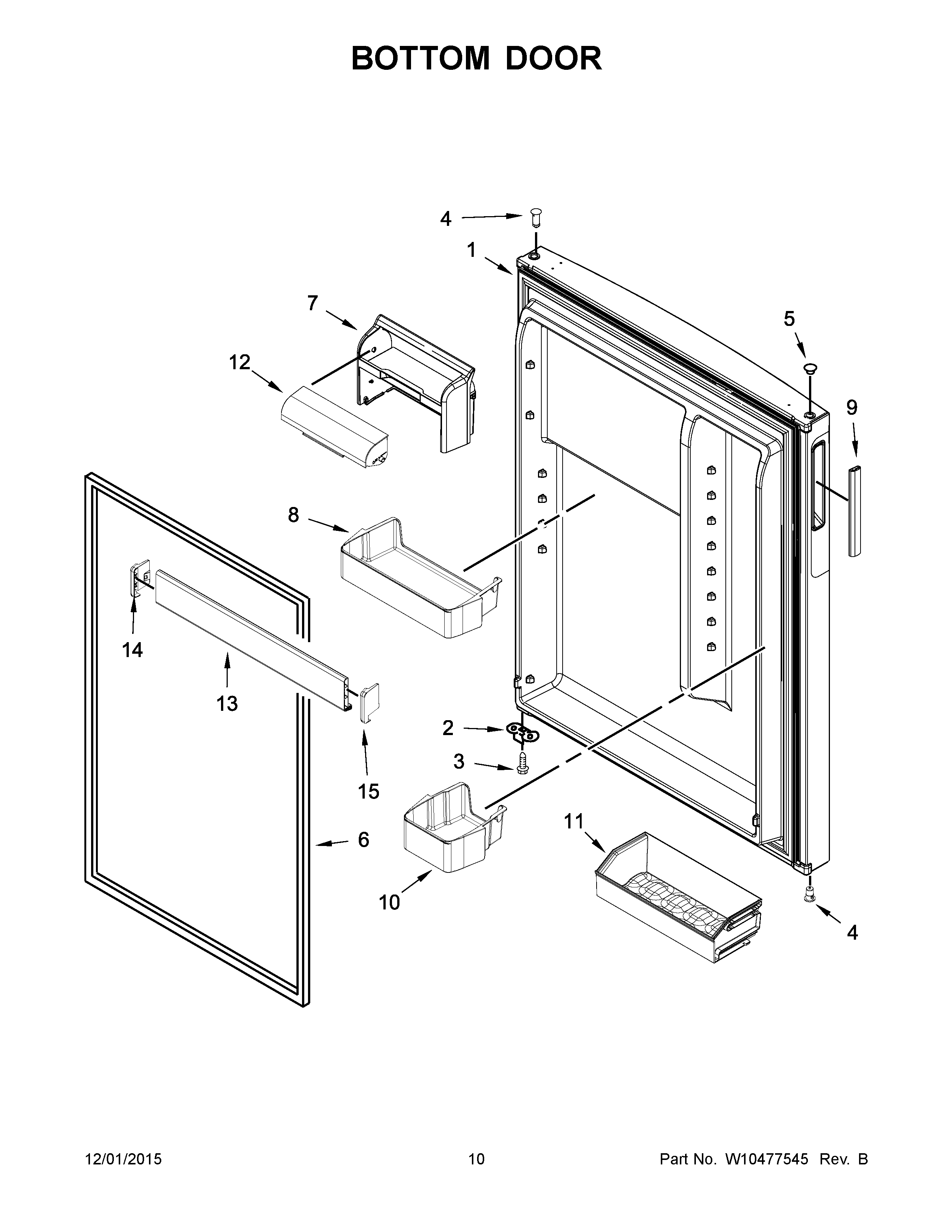

GARF19XXYK00 06 – BOTTOM DOOR

GARF19XXYK00 06 – BOTTOM DOOR

Written by

in

GARF19XXYK00 06 – BOTTOM DOOR

Products

PositionProduct
1BOTTOM DOOR (GRAPHITE)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11189115 Whirlpool Refrigerator Thimble
5WP2212651 Whirlpool Refrigerator Button Plug
62177305 Whirlpool Refrigerator Door FIP Gasket
7HOUSING, COMPARTMENT
8WPW10308868 Whirlpool Refrigerator Door Bin
9W10174743 Whirlpool Refrigerator Handle
10WPW10308867 Whirlpool Refrigerator Cantilever Bin
11CADDY, CAN
12WPW10308843 Whirlpool Refrigerator Door Compressor
13TRIM, DOOR SHELF
14WPW10338485 Whirlpool Refrigerator End Cap
15CAP, TRIM END (RIGHT HAND)
