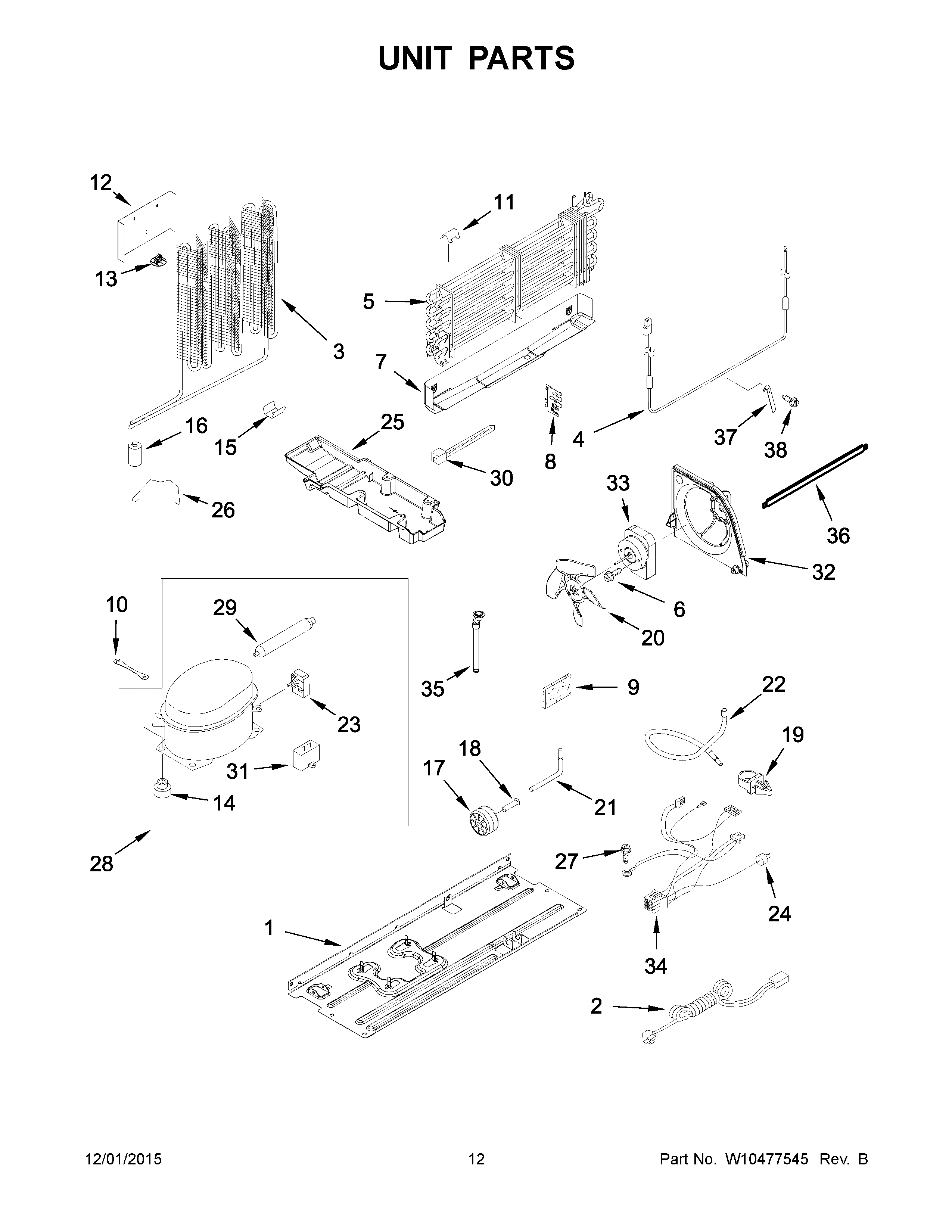

GARF19XXYK00 07 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	W10300116 Whirlpool Refrigerator Base Plate
2	2187762 Whirlpool Refrigerator Power Cord
3	WPW10342567 Whirlpool Refrigerator Condenser
4	WPW10316428 Whirlpool Refrigerator Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	W10314197 Whirlpool Refrigerator Bracket
9	W11553819 Whirlpool Refrigerator Insulation
10	W10236396 Whirlpool Refrigerator Strap
11	9791833 Whirlpool Refrigerator Clip
12	W10349514 Whirlpool Refrigerator Air Baffle
13	W10296661 Whirlpool Refrigerator Clip
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W10683556 Whirlpool Refrigerator Clip
16	W10852725 Whirlpool Refrigerator Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	2219077 Whirlpool Refrigerator Clip
20	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
21	W11676464 Whirlpool Tube
22	W10466682 Whirlpool Refrigerator Tube
23	WPW10197428 Whirlpool Start Device
24	W10140772 Whirlpool Refrigerator Bi-Metal Defrost
25	W10890667 Whirlpool Refrigerator Drip Pan
26	W10204187 Whirlpool Refrigerator Retainer
27	WP489128 Whirlpool Refrigerator Screw
28	WPW10466675 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	WP2315541 Whirlpool Refrigerator Air Baffle
33	W11563806 Whirlpool Refrigerator Condenser Motor
34	W10595240 Whirlpool Refrigerator Wire Harness
35	W11190084 Whirlpool Refrigerator Drain Tube
36	W10300902 Whirlpool Refrigerator Cover
37	W10856574 Whirlpool Refrigerator Heat Probe
38	WP489478 Whirlpool Refrigerator Screw
