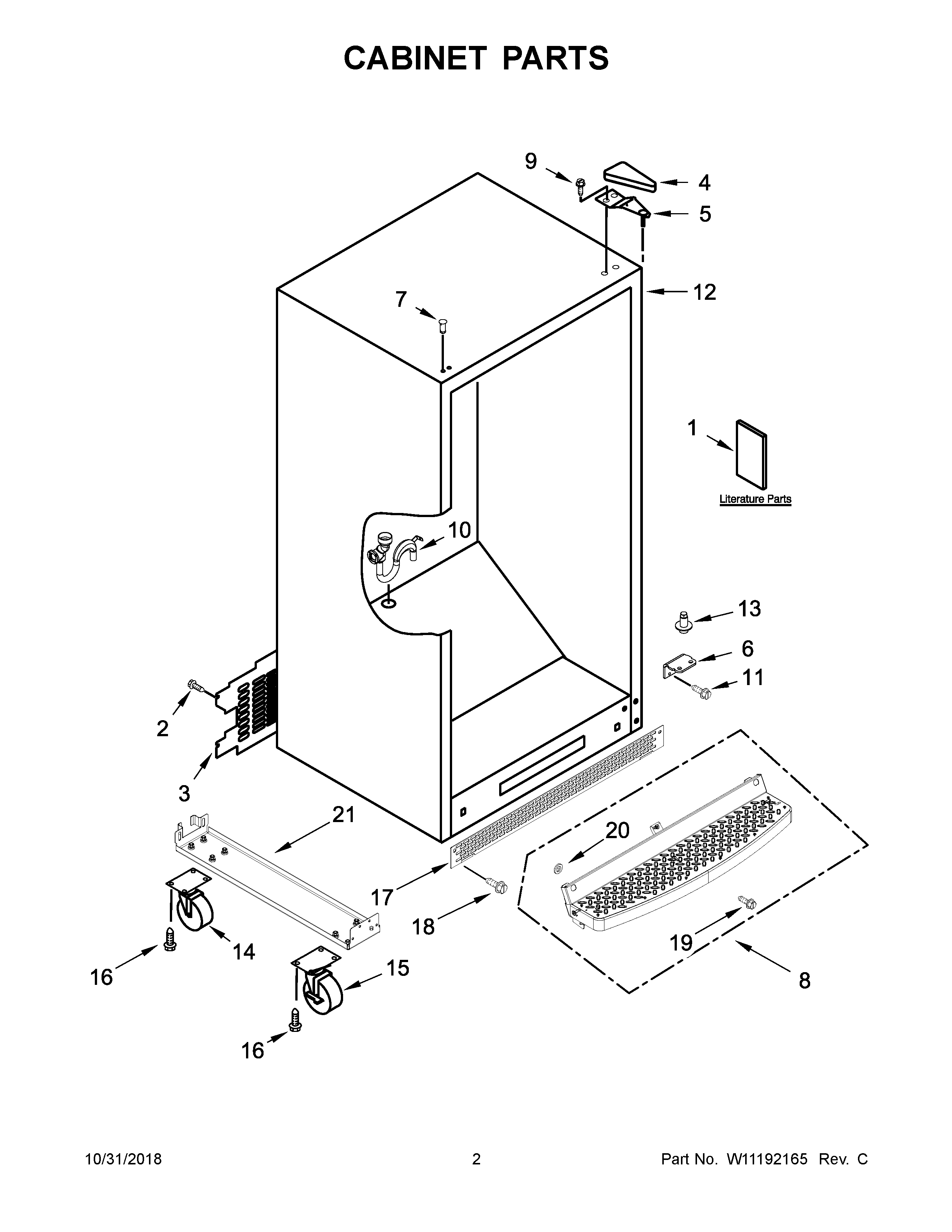

GARF30FDGB00 02 – CABINET PARTS

GARF30FDGB00 02 – CABINET PARTS

Written by

in

GARF30FDGB00 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1ATECH SHEET
2SCREW
3W10574323 Whirlpool Refrigerator Unit Cover
4WP2213363 Whirlpool Refrigerator Cover
5WP2261963 Whirlpool Refrigerator Door Hinge
6W11102844 Whirlpool Refrigerator Door Hinge
7WPW10520305 Whirlpool Refrigerator Button Plug
8W11199807 Whirlpool Refrigerator Pedal
9WP489497 Whirlpool Screw
10W11673435 Whirlpool Refrigerator Drain Tube
1167006564 Whirlpool Refrigerator Screw
12CABINET (NOT A SERVICEABLE PART)
13W11676609 Whirlpool Hinge Pin
14CASTER, SWIVEL 5"
15ACASTER, RIGID 5" (WITH BRAKE) (RIGHT HAND)
15CASTER, RIGID 5" (WITH BRAKE) (LEFT HAND)
16WP3400527 Whirlpool Refrigerator Screw
17W11199697 Whirlpool Refrigerator Grille
18WPW10308489 Whirlpool Refrigerator Screw
19W11316687 Whirlpool Screw Assembly
20W11316683 Whirlpool Washer
21W11316673 Whirlpool Refrigerator Bracket
