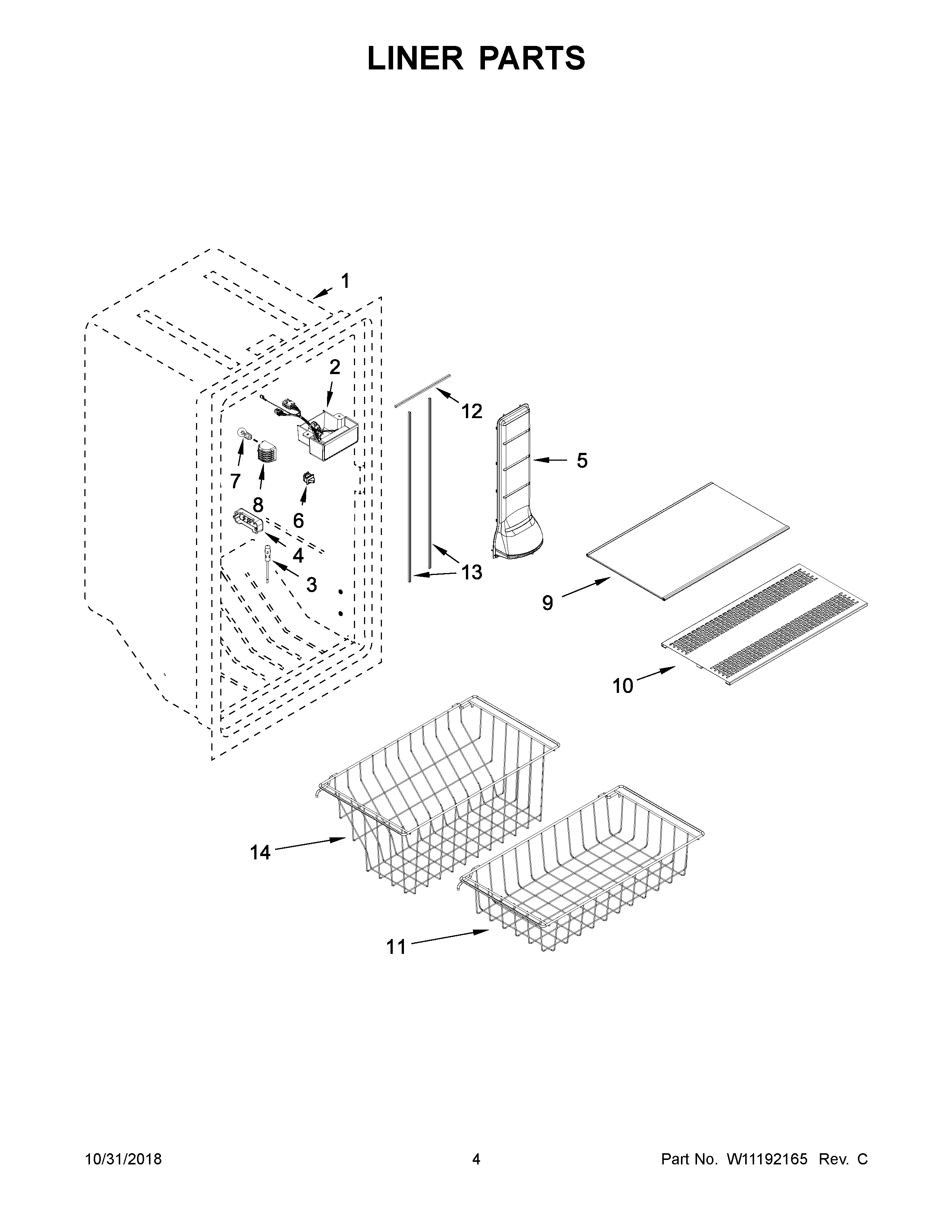

GARF30FDGB00 03 – LINER PARTS

GARF30FDGB00 03 – LINER PARTS

Written by

in

GARF30FDGB00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11496888 Whirlpool Refrigerator Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5W10574583 Whirlpool Refrigerator Air Tower
6W10755325 Whirlpool Refrigerator Switch
7W11338583 Whirlpool Light Bulb
8W10569269 Whirlpool Refrigerator Lens
9W11244102 Whirlpool Refrigerator Glass Shelf
10W11047286 Whirlpool Shelf Assembly – Cantilever
11W10736055 Whirlpool Basket
13WPW10574368 Whirlpool Refrigerator Gasket
14W10736043 Whirlpool Refrigerator Basket
