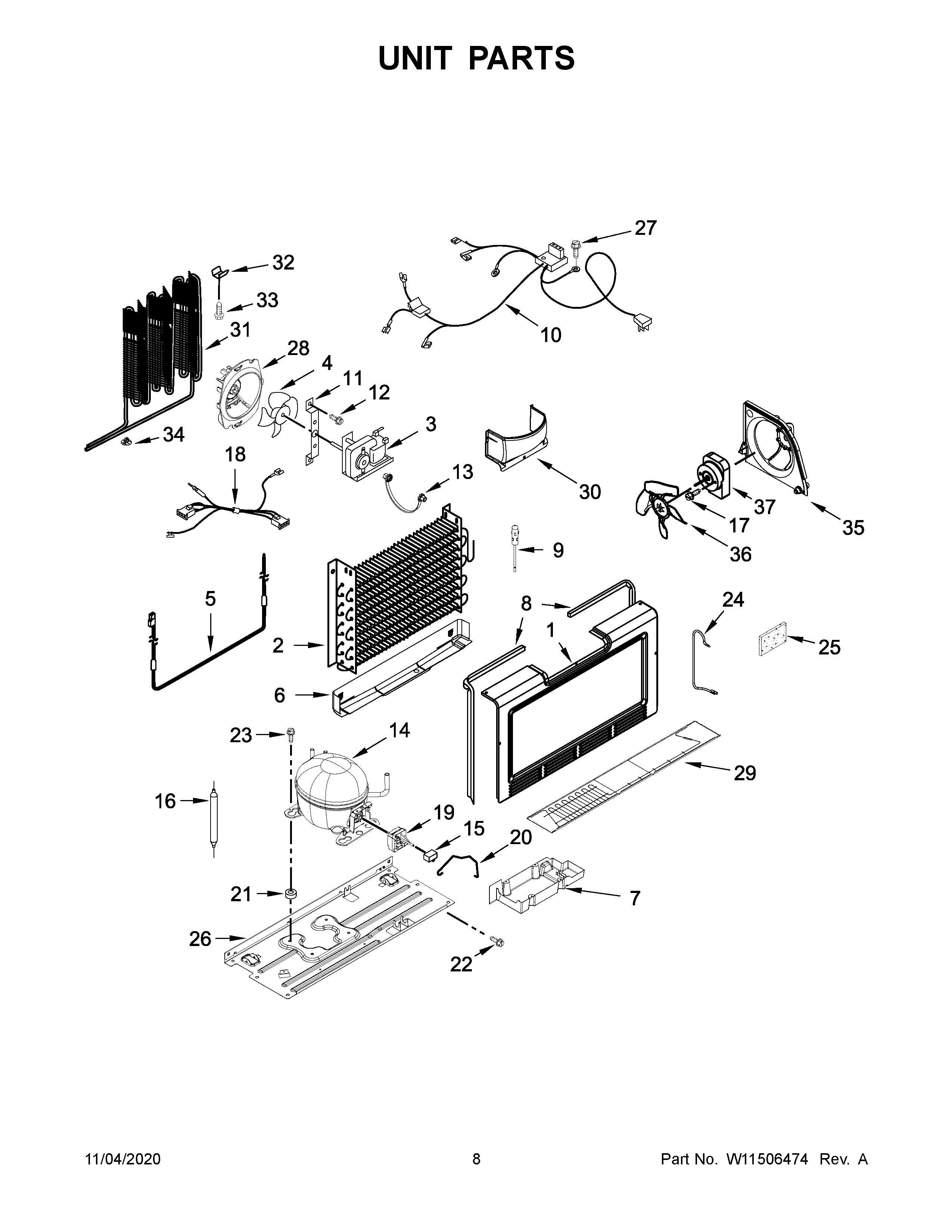

GARF30FDGB01 05 – UNIT PARTS

GARF30FDGB01 05 – UNIT PARTS

Written by

in

GARF30FDGB01 05 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1W11551256 Whirlpool Refrigerator Evaporator Cover
2W11507067 Whirlpool Refrigerator Evaporator
3W11499658 Whirlpool Refrigerator Evaporator Motor
4WP2169142 Whirlpool Fan Blade
5WPW10316428 Whirlpool Refrigerator Heater
6WPW10314195 Whirlpool Refrigerator Shield
7W10574291 Whirlpool Refrigerator Drip Pan
8WPW10574368 Whirlpool Refrigerator Gasket
9THERMISTOR-REFRIGERATOR
10W11744514 Whirlpool Wire Harness
11CLIP, EVAPORATOR MOTOR
12SCREW
13W11690160 Whirlpool Grommet
14W11125124 Whirlpool Compressor
15WPW10350564 Whirlpool Refrigerator Freezer Capacitor
16WPW10143759 Whirlpool Dryer Filter
17W11501418 Whirlpool Refrigerator Screw
18W11670030 Whirlpool Harness
19W10873801 Whirlpool Start Device
20W11092534 Whirlpool Refrigerator Clip
21W11661108 Whirlpool Grommet
22BOLT
23SCREW
24W10861955 Whirlpool Refrigerator Tube
25W11553819 Whirlpool Refrigerator Insulation
26W10574278 Whirlpool Refrigerator Compressor Pan
27SCREW
28W10574469 Whirlpool Refrigerator Scroll Fan
30W10574581 Whirlpool Refrigerator Evaporator Cover
31W11507065 Whirlpool Refrigerator Condenser
32W10683556 Whirlpool Refrigerator Clip
33W11544659 Whirlpool Refrigerator Screw
34W10815861 Whirlpool Refrigerator Clip
35WP2315541 Whirlpool Refrigerator Air Baffle
36WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
37W11578915 Whirlpool Condenser Motor
