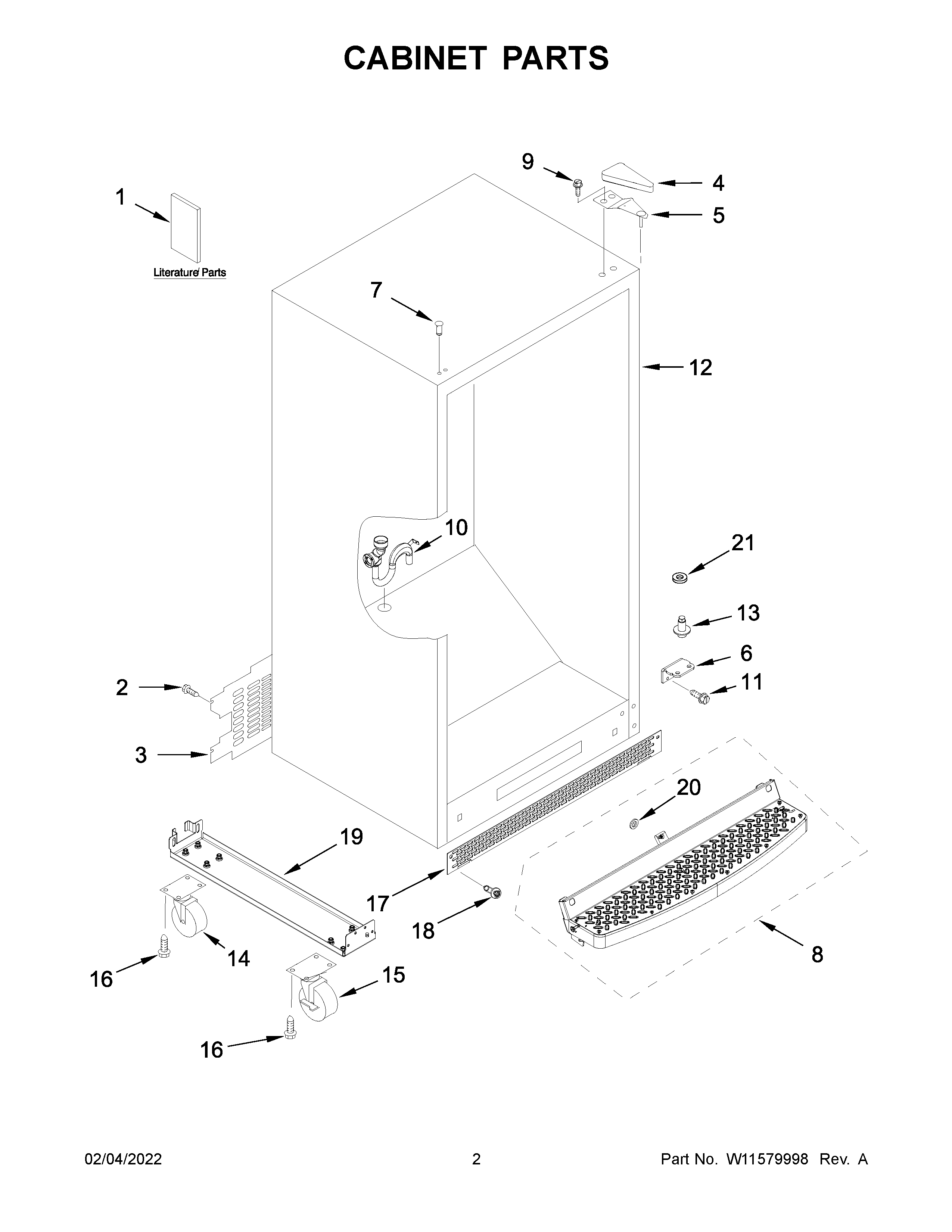

GARF30FDGB03 02 – CABINET PARTS

GARF30FDGB03 02 – CABINET PARTS

Written by

in

GARF30FDGB03 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AENERGY GUIDE
1BTECH SHEET
2SCREW
3W11311062 Whirlpool Unit Cover
4WP2213363 Whirlpool Refrigerator Cover
5WP2261963 Whirlpool Refrigerator Door Hinge
6W11102844 Whirlpool Refrigerator Door Hinge
7WPW10520305 Whirlpool Refrigerator Button Plug
8W11199807 Whirlpool Refrigerator Pedal
9WP489497 Whirlpool Screw
10W11673435 Whirlpool Refrigerator Drain Tube
1167006564 Whirlpool Refrigerator Screw
12CABINET (NOT A SERVICEABLE PART)
13W11676609 Whirlpool Hinge Pin
14WP8204601 Whirlpool Caster Assembly
15W10741533 Whirlpool Caster
15A8211250 Whirlpool Caster Assembly
16WP3400527 Whirlpool Refrigerator Screw
17W11199697 Whirlpool Refrigerator Grille
18W11582178 Whirlpool Screw
19W11316673 Whirlpool Refrigerator Bracket
20W11316683 Whirlpool Washer
21WP487576 Whirlpool Washer
