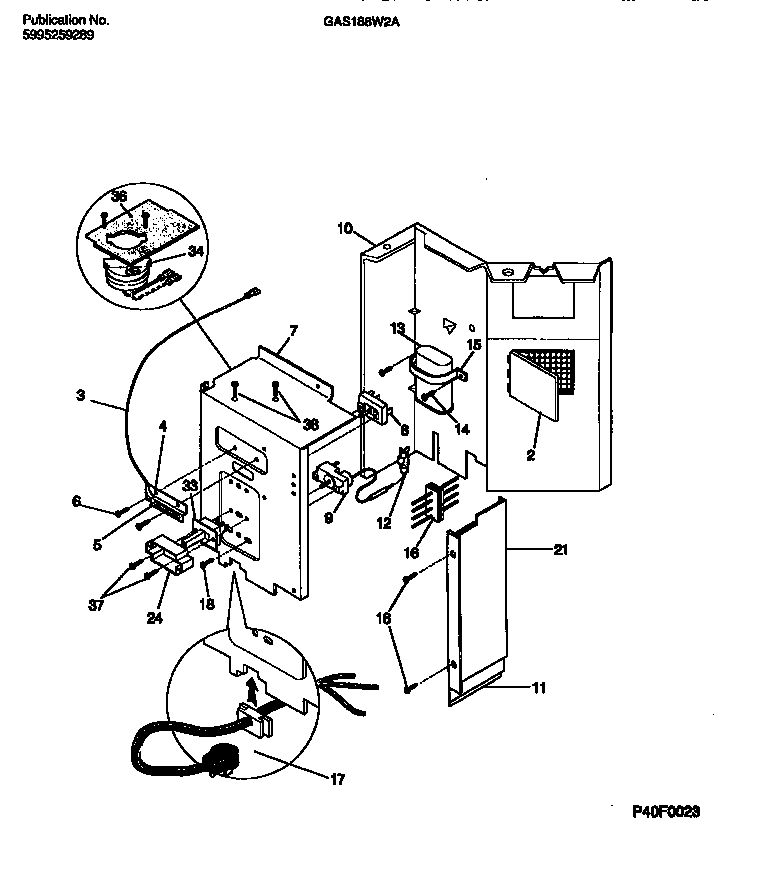

GAS188W2A2 03 – CONTROLS

Products

Position	Product
2	DOOR-VENT
3	WCI 5303015298
4	RETAINER
5	ARM
6	WCI 5303017342
7	WCI 5303293910
8	SWITCH
9	WCI 5303015319
10	WCI 5303295753
11	DIVIDER – VERTICAL
12	CLIP-BULB
13	WCI 5303306706
14	134178901 Frigidaire Screw
15	STRAP – CAPACITOR
16	WIRING HARNESS
17	WCI 5303301886
18	SCREW
21	WCI 5303303011
24	SPACER-SLIDE SWITCH (NON-ILLUSTRATED)
33	SWITCH – SLIDE
34	MOTOR-DRIVE
36	INSULATION
37	SCREW-SWITCH, SHUT OFF
38	WCI 5303015294
