GAS188W2A2 04 – AIR HANDLING

GAS188W2A2 04 – AIR HANDLING

Written by

in

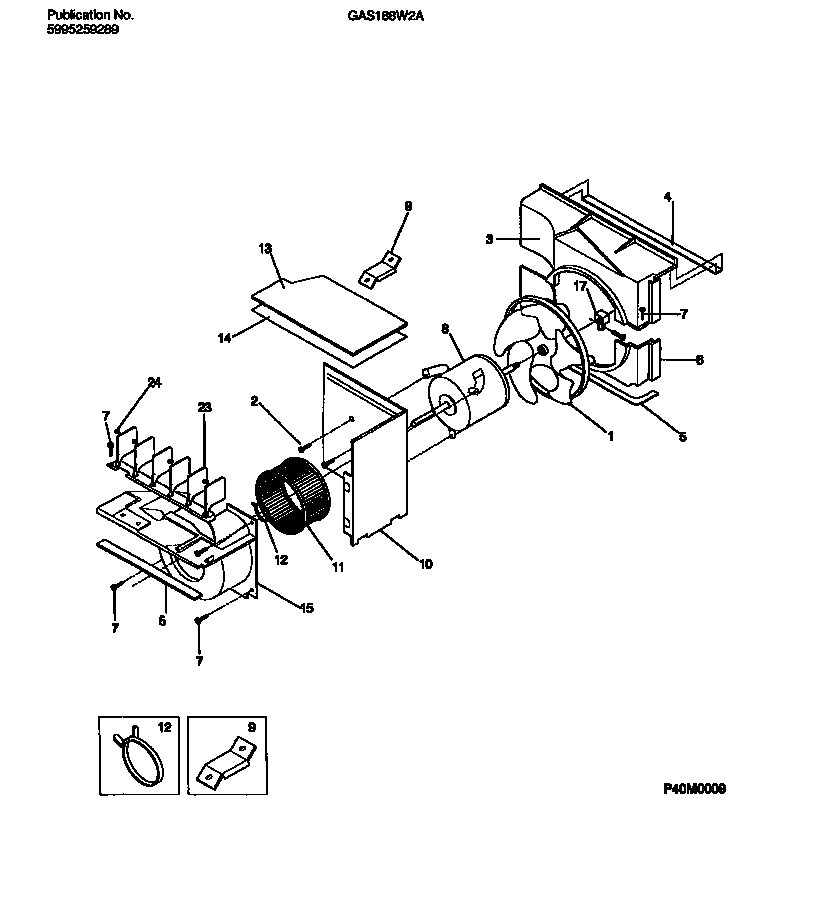

GAS188W2A2 04 – AIR HANDLING

Products

PositionProduct
1WCI 5303017959
2131202300 Frigidaire Screw
3WCI 5303015305
4WCI 3016696
5SEAL,FAN HOUSING ,LOWER
6WCI 5303015304
7134178901 Frigidaire Screw
8WCI 5303015293
9WCI 5303015306
10BULKHEAD-AIR SYSTEM
11BLOWER WHEEL
12WCI 5303012110
13WCI 5303015313
14WCI 3015314
15WCI 5303016830
17CLAMP – FAN BLADE
23WCI 5303302882
24NUT-PUSH
