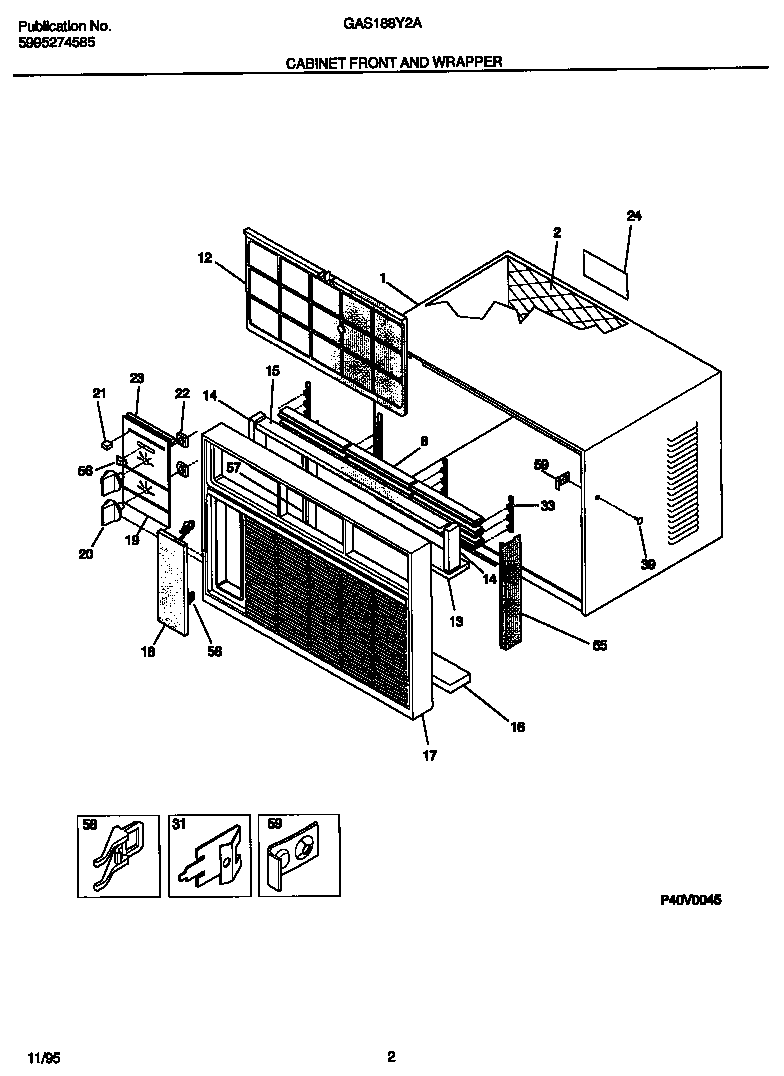

GAS188Y2A1 02 – CABINET FRONT AND WRAPPER

GAS188Y2A1 02 – CABINET FRONT AND WRAPPER

Written by

in

GAS188Y2A1 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
1WCI 5303303545
2WCI 5303210207
8WCI 5303316606
12WCI 5303316607
13WCI 3017299
14WCI 5303303148
15SEAL TOP & SIDE
16WCI 5303281623
17WCI 5303316608
18DOOR-FRONT
19WCI 5303281624
20WCI 5303017300
21WCI 5303017340
22WCI 5303001775
23WCI 5303001984
31CLIP-SPRING (NON-ILLUSTRATED)
33RETAINER-HORIZ LOUVER (NON-ILLUSTRATED)
39SCREW
55RAIL-FILTER RH (NON-ILLUSTRATED)
56KNOB – SLIDE, SWITCH
57RAIL-FILTER LH (NON-ILLUSTRATED)
58WCI 5303208233
59NUT – FRONT LOCK
