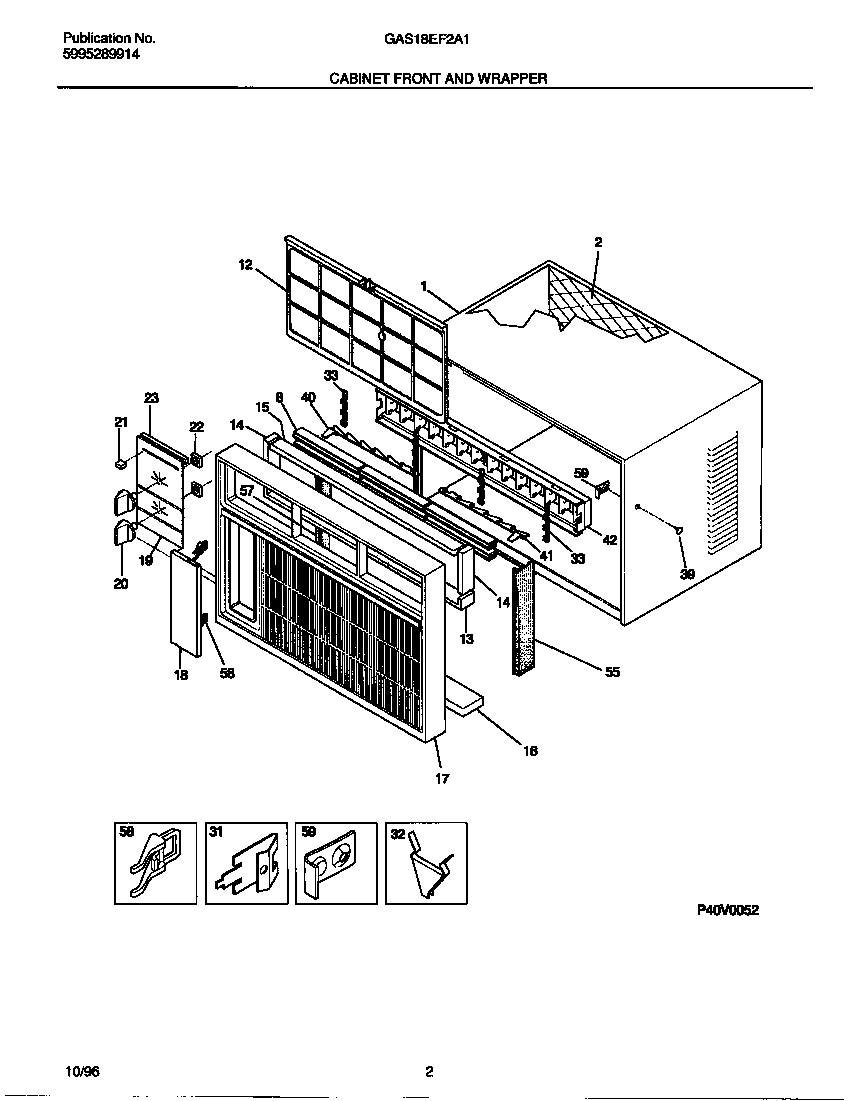

GAS18EF2A1 02 – CABINET FRONT AND WRAPPER

GAS18EF2A1 02 – CABINET FRONT AND WRAPPER

Written by

in

GAS18EF2A1 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
1WCI 5303301790
2WCI 5303210207
8WCI 5303316606
12WCI 5303316607
13WCI 3018772
14WCI 5303303148
15SEAL TOP & SIDE
16WCI 5303281623
17WCI 5303321496
18DOOR-FRONT
19WCI 5303212522
20WCI 5303017300
21SEAL-BOTTOM
22WCI 5303001775
23WCI 5303001984
31CLIP-SPRING (NON-ILLUSTRATED)
32WCI 5303001844
33WCI 3017779
39134178901 Frigidaire Screw
40WCI 309321803
41WCI 309321804
42WCI 5303002459
55RAIL-FILTER RH (NON-ILLUSTRATED)
57RAIL-FILTER LH (NON-ILLUSTRATED)
58WCI 5303208233
59NUT – FRONT LOCK
