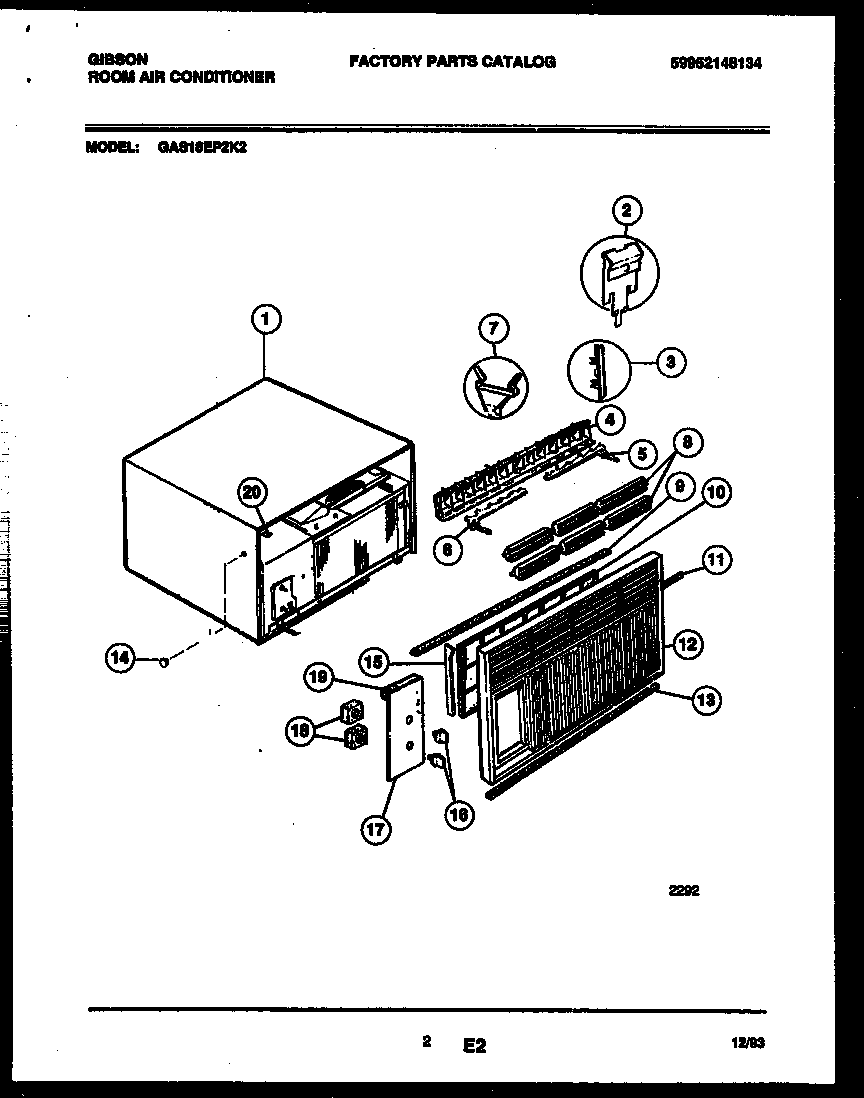

GAS18EP2K2 02 – CABINET PARTS

Products

Position	Product
1B	WCI 5303302608
1A	GRILLE-REAR
1	WCI 5303301790
2	CLIP-SPRING (NON-ILLUSTRATED)
3	WCI 3017779
4	WCI 5303002459
5	WCI 5303293554
6	WCI 5303293555
7	WCI 5303001844
8	LOUVER-HORIZ
9	SEAL TOP & SIDE
10	FILTER-AIR
11	WCI 3018772
12	WCI 5303212517
13	WCI 5303281623
14	SCREW
15A	RAIL-FILTER RH (NON-ILLUSTRATED)
15	RAIL-FILTER LH (NON-ILLUSTRATED)
16	WCI 5303017300
17	WCI 5303212522
18	WCI 5303001775
19	WCI 5303281624
20	NUT – FRONT LOCK
