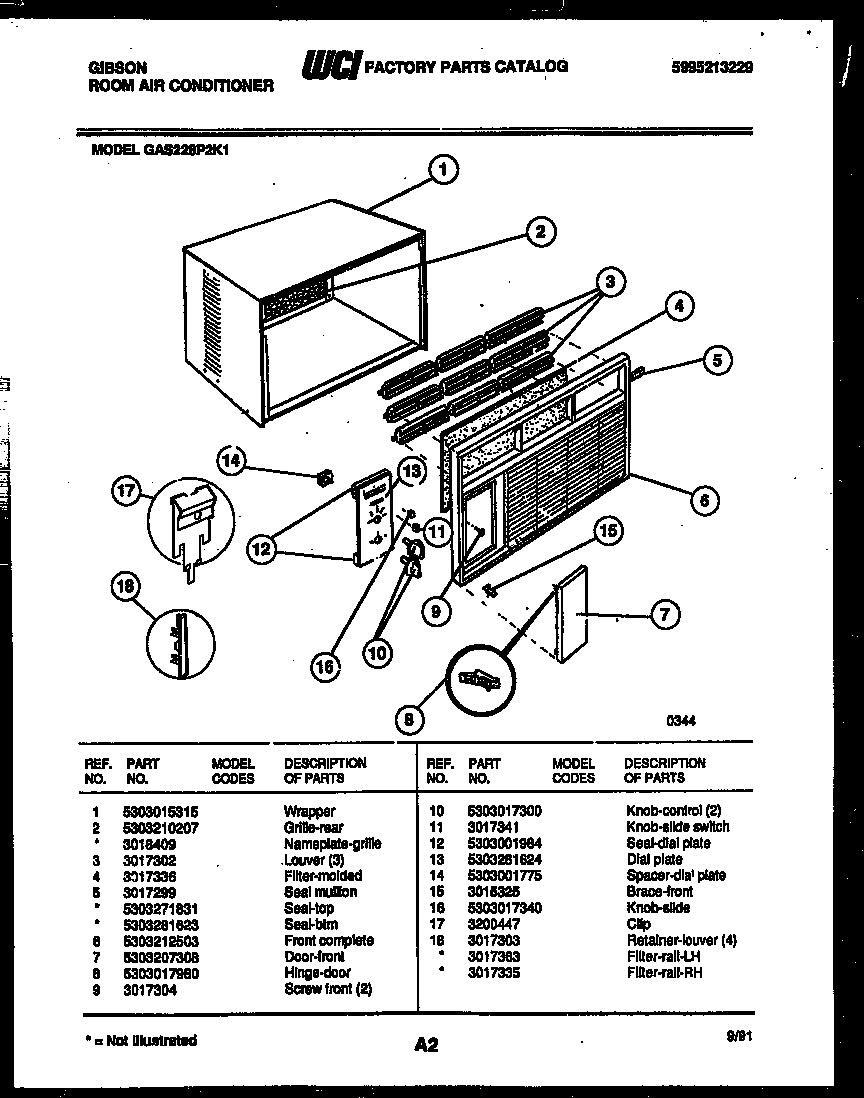

GAS228P2K1 02 – CABINET PARTS

GAS228P2K1 02 – CABINET PARTS

Written by

in

GAS228P2K1 02 – CABINET PARTS

Products

PositionProduct
*41683RAIL-FILTER RH (NON-ILLUSTRATED)
*41683RAIL-FILTER LH (NON-ILLUSTRATED)
1SHELL-CABINET
2WCI 5303210207
2ANAMEPLATE REAR GRILLE (NON-ILLUSTRATED)
3LOUVER-HORIZ
4FILTER-AIR
5ASEAL TOP & SIDE
5BWCI 5303281623
5WCI 3017299
6WCI 5303212503
7DOOR
8HINGE – DOOR
9WCI 3017304
10WCI 5303017300
11KNOB – SLIDE, SWITCH
12WCI 5303001984
13WCI 5303281624
14WCI 5303001775
15BRACE – FRONT (NON-ILLUSTRATED)
16WCI 5303017340
17CLIP-SPRING (NON-ILLUSTRATED)
18RETAINER-HORIZ LOUVER (NON-ILLUSTRATED)
