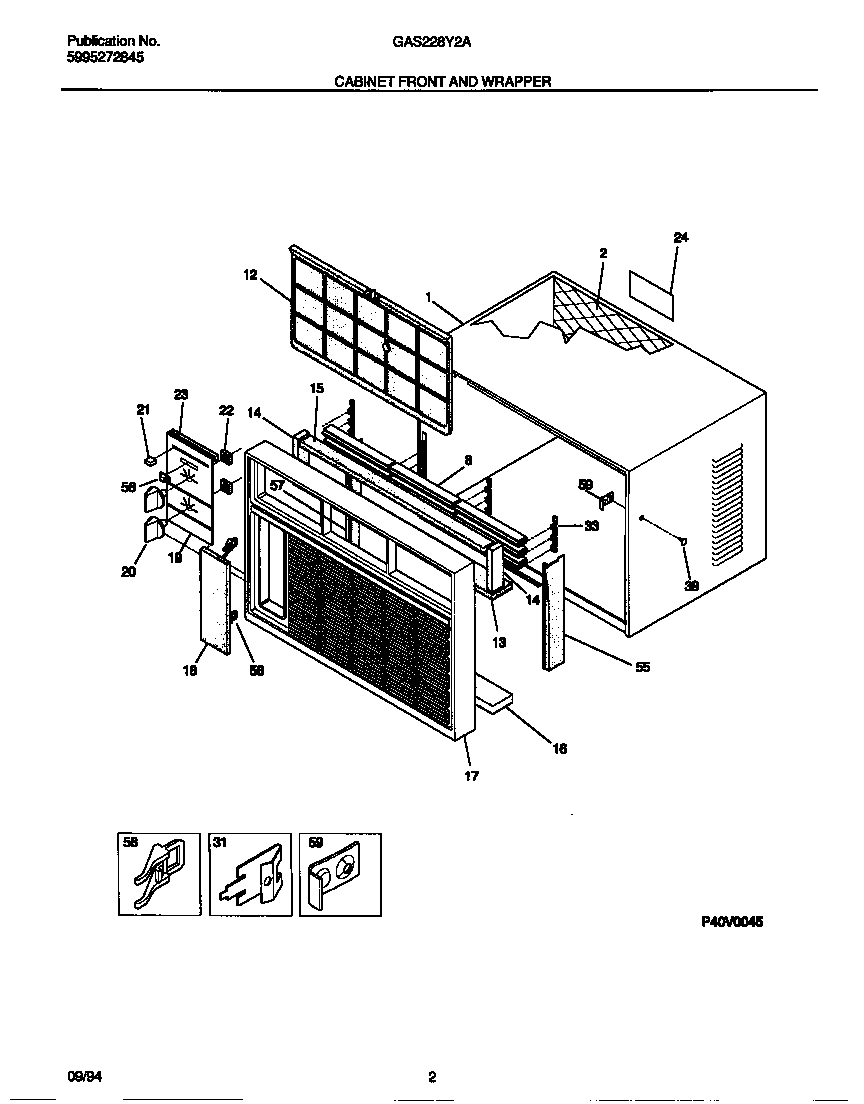

GAS228Y2A1 02 – CABINET FRONT AND WRAPPER

Products

Position	Product
*20280	SEAL-BOTTOM
1	WCI 5303303545
2	WCI 5303210207
8	WCI 5303316606
12	WCI 5303316607
14	WCI 5303303148
15	SEAL TOP & SIDE
16	WCI 5303281623
17	WCI 5303316608
18	DOOR-FRONT
19	WCI 5303281624
20	WCI 5303017300
21	WCI 5303017340
22	WCI 5303001775
23	WCI 5303001984
31	CLIP-SPRING (NON-ILLUSTRATED)
33	RETAINER-HORIZ LOUVER (NON-ILLUSTRATED)
39	SCREW
55	RAIL-FILTER RH (NON-ILLUSTRATED)
56	KNOB - SLIDE, SWITCH
57	RAIL-FILTER LH (NON-ILLUSTRATED)
58	WCI 5303208233
59	NUT - FRONT LOCK
