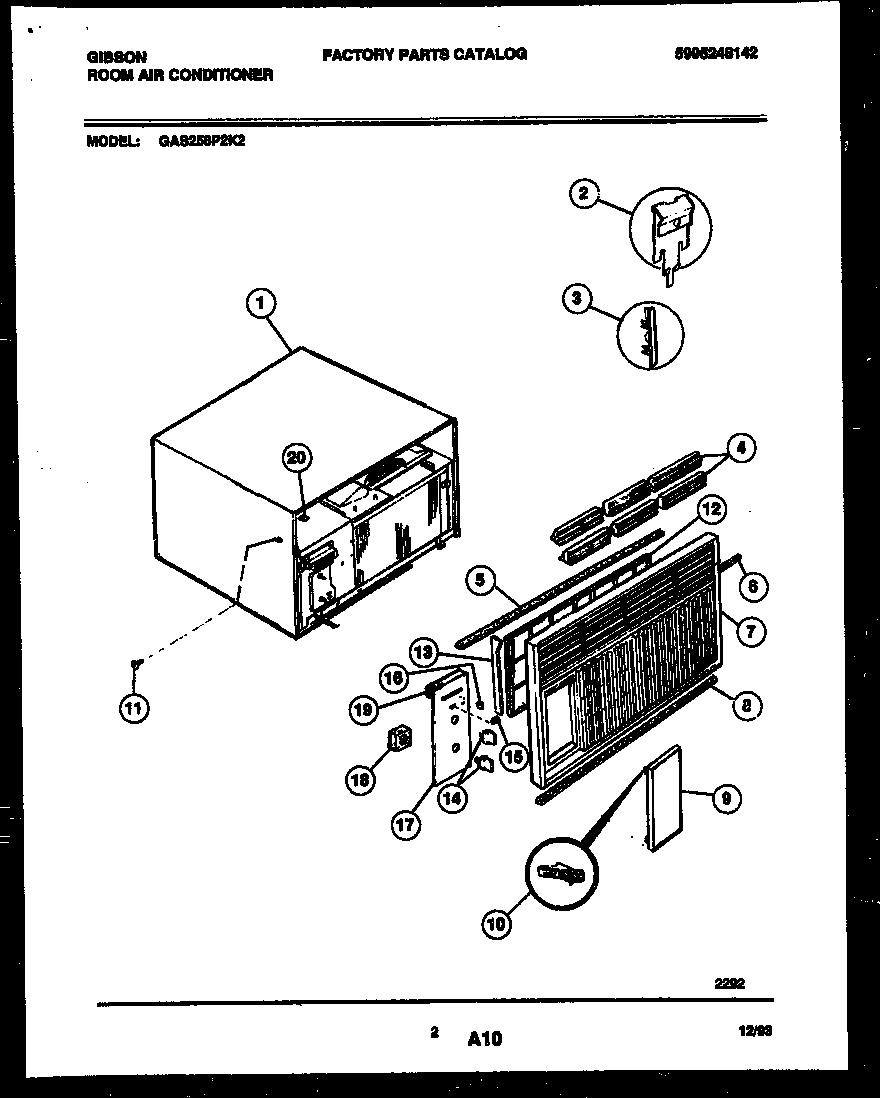

GAS258P2K2 02 – CABINET PARTS

Products

Position	Product
1B	WCI 5303302608
1A	GRILLE-REAR
1	WCI 5303301790
2	CLIP-SPRING (NON-ILLUSTRATED)
3	RETAINER-HORIZ LOUVER (NON-ILLUSTRATED)
4	LOUVER-HORIZ
5	SEAL TOP & SIDE
6	WCI 3017299
7	WCI 5303212503
8	WCI 5303281623
9	DOOR
10	HINGE – DOOR
11	WCI 3017304
12	FILTER-AIR
13A	RAIL-FILTER RH (NON-ILLUSTRATED)
13	RAIL-FILTER LH (NON-ILLUSTRATED)
14	WCI 5303017300
15	KNOB – SLIDE, SWITCH
16	WCI 5303017340
17	WCI 5303281624
18	WCI 5303001775
19	WCI 5303001984
20	NUT – FRONT LOCK
