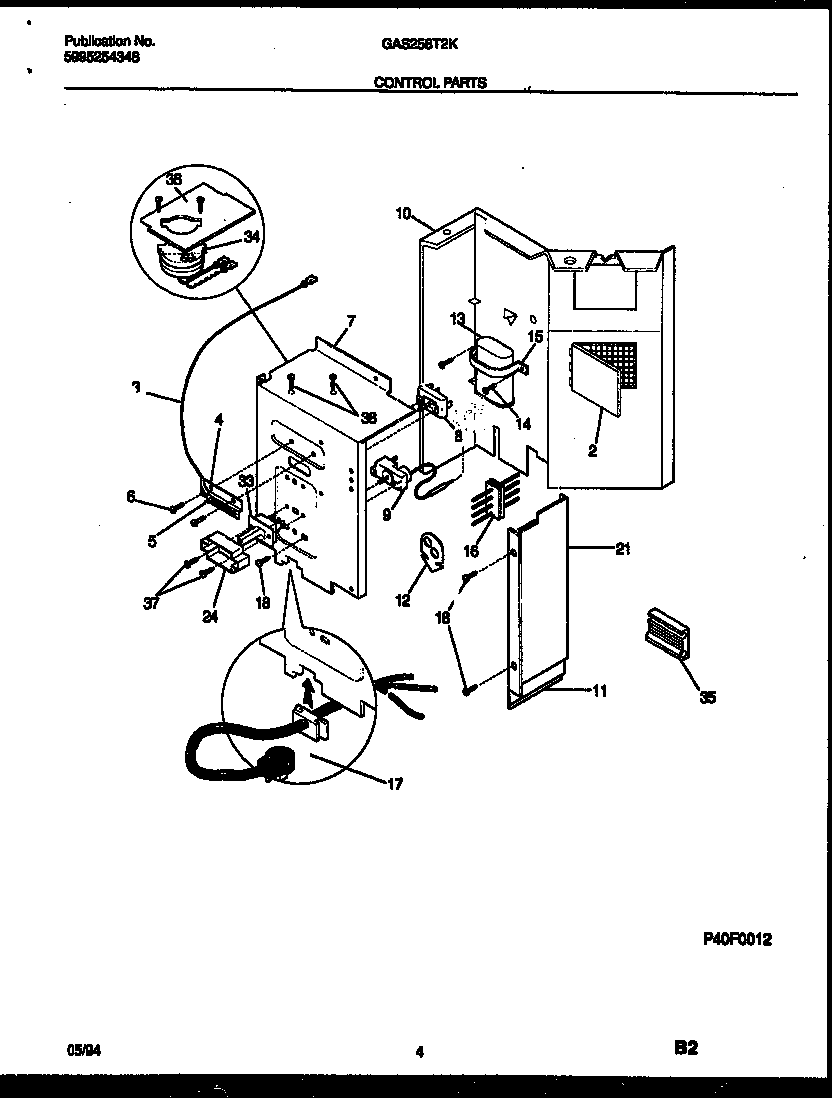

GAS258T2K1 03 – CONTROL PARTS

Products

Position	Product
2	DOOR-VENT
3	WCI 5303015298
4	RETAINER
5	ARM
6	WCI 5303017342
7	WCI 5303293910
8	WCI 5303201836
9	WCI 5303015319
10	WCI 5303295753
11	DIVIDER – VERTICAL
12	SPACER-CONTROL BULB
13	CAPACITOR-DUAL
14	134178901 Frigidaire Screw
15	STRAP – CAPACITOR
16	WCI 3202717
17	WCI 5303301041
18	SCREW
21	WCI 5303303011
24	SPACER-SLIDE SWITCH (NON-ILLUSTRATED)
33	SWITCH – SLIDE
34	WCI 5303272099
35	WCI 3200761
36	INSULATION
37	SCREW-SWITCH, SHUT OFF
38	SCREW-MOTOR
