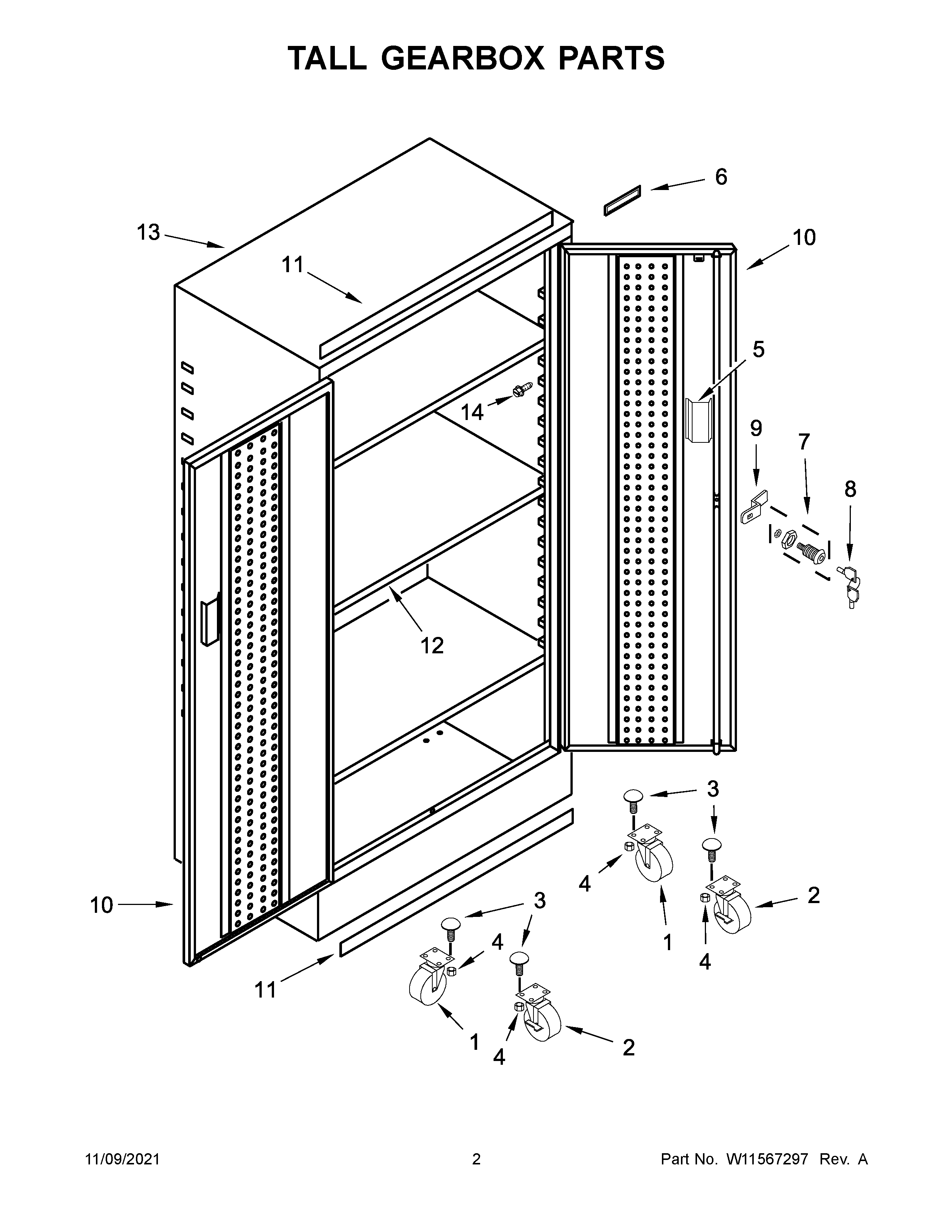

GATB302DDR01 02 – TALL GEARBOX PARTS

GATB302DDR01 02 – TALL GEARBOX PARTS

Written by

in

GATB302DDR01 02 – TALL GEARBOX PARTS

Products

PositionProduct
1CASTER, SWIVEL 5"
2CASTER, RIGID 5" WITH BRAKE (RIGHT HAND)
2ACASTER, RIGID 5" WITH BRAKE (LEFT HAND)
3W11558420 Whirlpool Bolt
4NUT, NYLON
5W11549424 Whirlpool Door Handle
6NAMEPLATE, GLADIATOR
7LOCK
8W11557661 Whirlpool Keys
9W11538391 Whirlpool Cam Assembly
10BDOOR (INCLUDES HANDLE) (SILVER TREADPLATE, RIGHT HAND)
10CDOOR (INCLUDES HANDLE) (SILVER TREADPLATE, LEFT HAND)
10ADOOR (INCLUDES HANDLE) (RED TREADPLATE, LEFT HAND)
10DOOR (INCLUDES HANDLE) (RED TREADPLATE, RIGHT HAND)
11MAGNET
12SHELF
13CABINET (NOT A SERVICEABLE PART)
14SCREW
