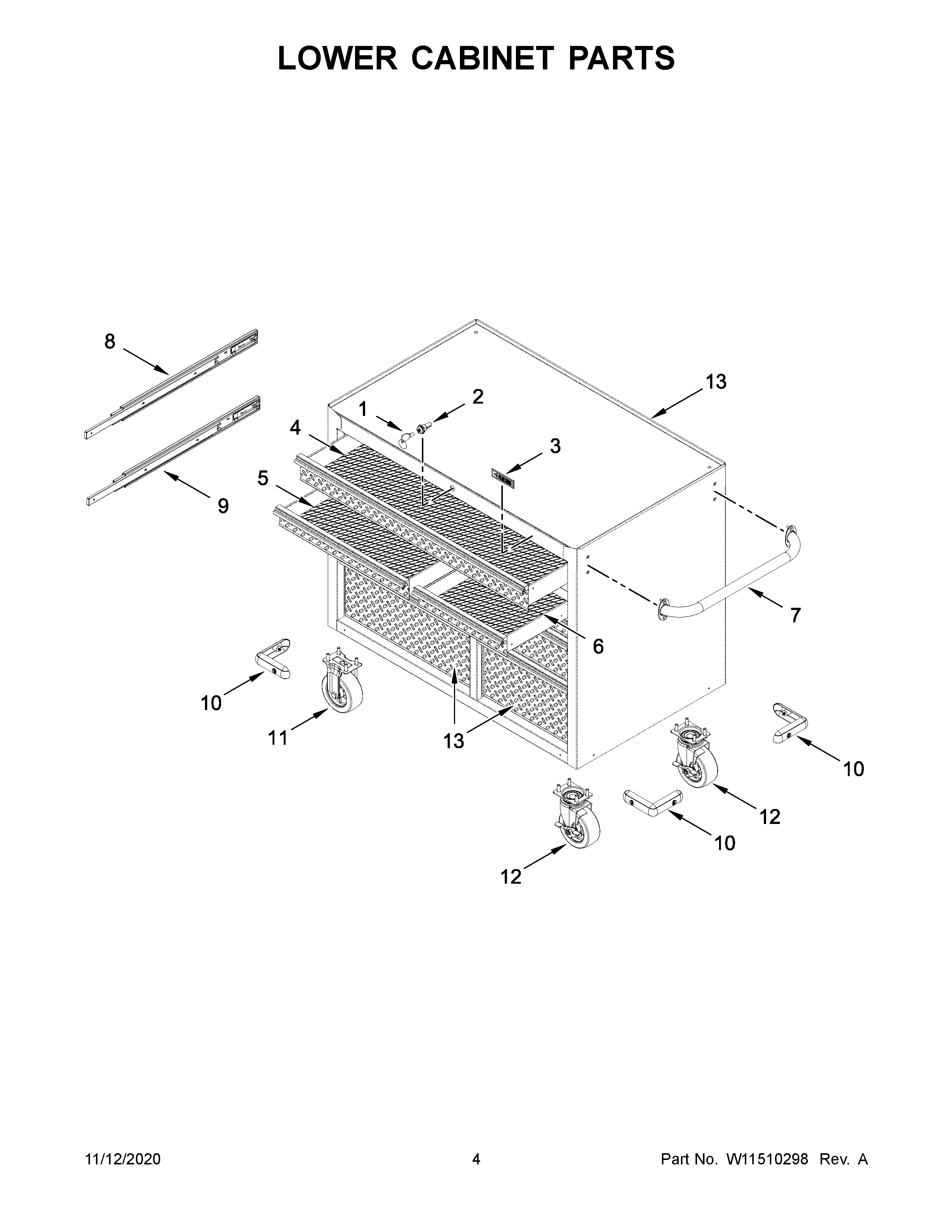

GATC4115JG00 03 – LOWER CABINET PARTS

Products

PositionProduct
1W11383363 Whirlpool Keys
2LOCK & 2 KEYS (INCLUDES CORE & SCREW)
3BADGE, GLADIATOR
4LINER, TOP DRAWER
5LINER, LEFT DRAWER
6LINER, RIGHT DRAWER
7HANDLE (INCLUDES HARDWARE)
8W11467000 Whirlpool Drawer Slide
9W11467001 Whirlpool Drawer Slide
10KIT, CORNER BUMPERS (INCLUDES 4 BUMPERS & HARDWARE)
11CASTER, FIXED (INCLUDES HARDWARE)
12CASTER, SWIVEL (INCLUDES HARDWARE)
13CABINET (NOT A SERVICEABLE PART)
