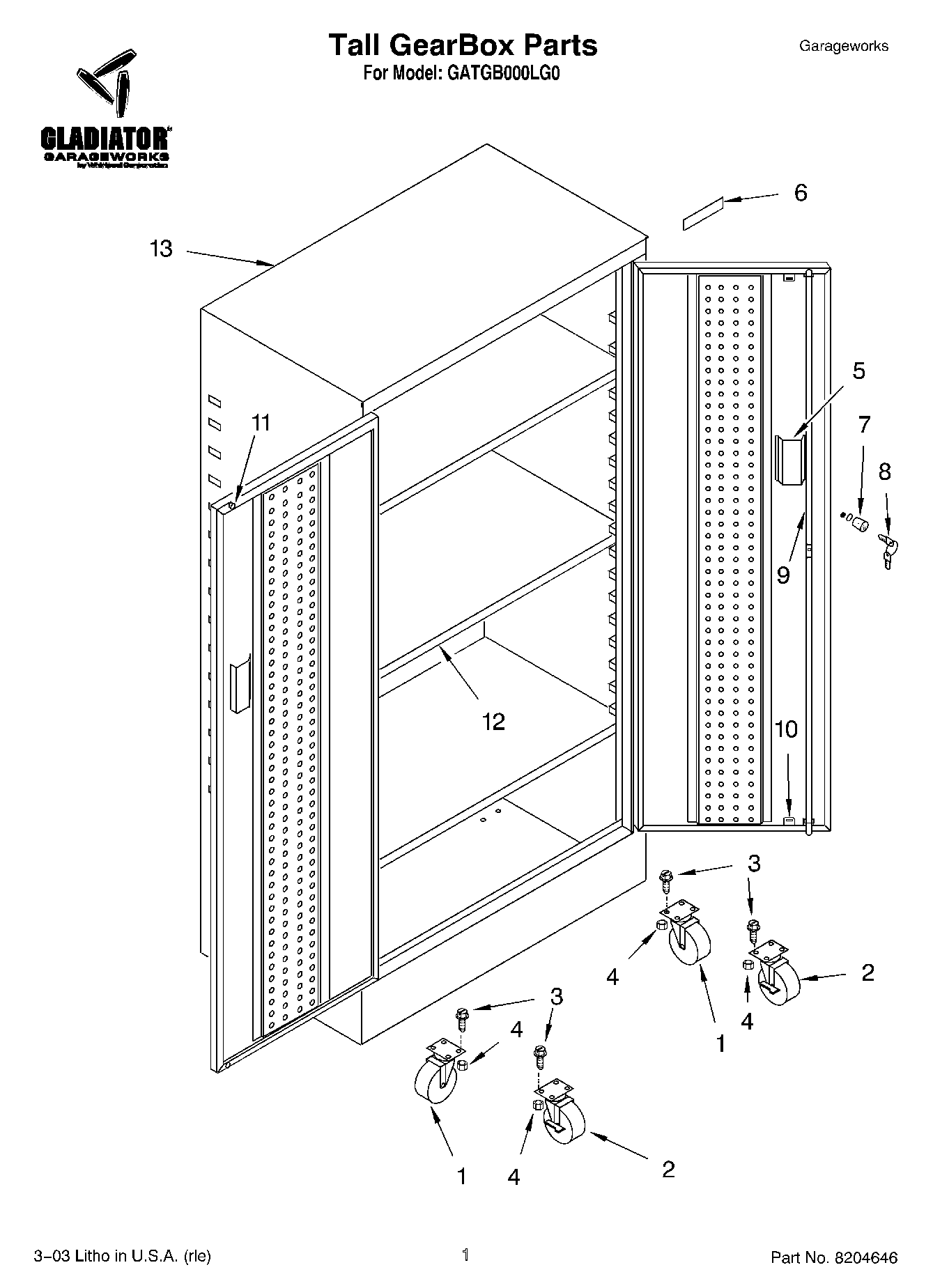

GATGB000LG0 01 – Tall GearBox Parts – OPTIONAL PARTS (NOT INCLUDED)

GATGB000LG0 01 – Tall GearBox Parts – OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GATGB000LG0 01 – Tall GearBox Parts – OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
1WP8204601 Whirlpool Caster Assembly
28211250 Whirlpool Caster Assembly
3WP8204609 Whirlpool Bolt
4WP8204610 Whirlpool Nut
5W10914558 Whirlpool Door Handle
6NAMEPLATE, GLADIATOR
7Lock, 90 Degree w/2 Keys
8W11383363 Whirlpool Keys
9Cam, Flat w/Door Rods (Not Serviced)
10Spring & Clip (Not Serviced)
11Grommet, Rubber
12Shelf, Full 18“
13Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
